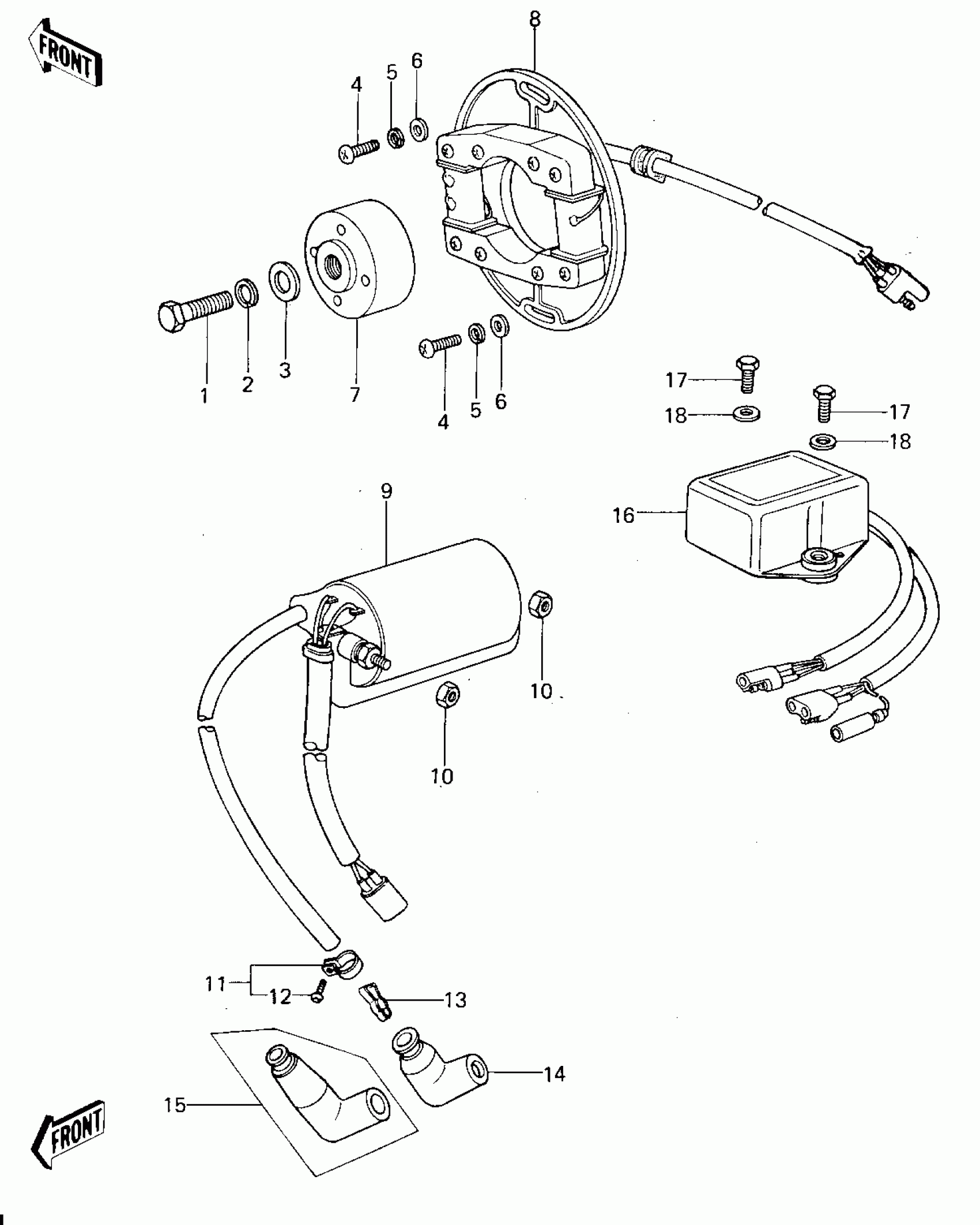

Kawasaki KX250-A5 IGNITION (78-79) Diagram
#
Description
Price
1
BOLT
92001-1578
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
WASHER,8.5X22X3.2
92022-276
Unavailable
4
SCREW PAN HEAD 6X25
220B0625
Unavailable
5
WASHER SPRING 6MM
461F0600
Unavailable
6
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
7
ROTOR,MAGNETO
21007-026
Unavailable
7
ROTOR,MAGNETO
21007-1013
Unavailable
8
STATOR ASSY
21003-1010
Unavailable
8
STATOR ASSY,MAGNETO
21003-1019
Unavailable
9
COIL,IGNITION
21121-1007
Unavailable
10
NUT,LOCK,6MM
92019-008
Unavailable
11
CLAMP
92037-1173
Unavailable
12
SCREW-PAN-CROS
220B0310
Unavailable
13
TERMINAL,PLUG CAP
21169-001
Unavailable
14
CAP-SPARK PLUG
21130-1006
Unavailable
15
CAP,SPARK PLUG
21130-1001
Unavailable
16
IGNITION UNIT
21119-1001
Unavailable
16
IGNITION UNIT
21119-1010
Unavailable
17
BOLT-UPSET
112G0618
Unavailable
18
WASHER PLAIN
92022-024
Unavailable
