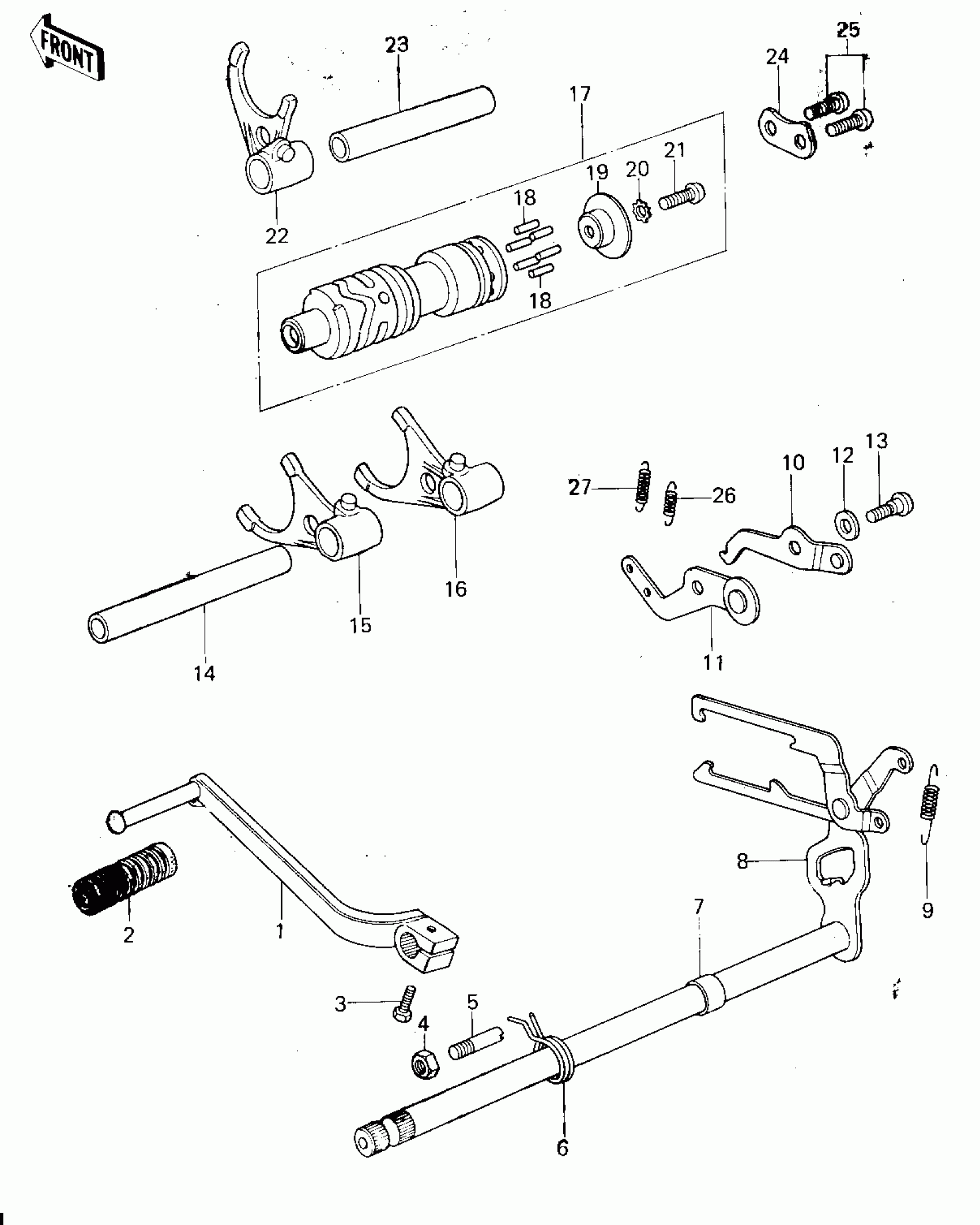

Kawasaki KX250-A5 GEAR CHANGE MECHANISM (78-79) Diagram

#

Description

Price

1

PEDAL.ASSY,CHANGE

13156-1008

Unavailable

2

DAMPER,CHANGE PEDAL

92160-1108

Unavailable

3

BOLT-UPSET,6X20

112G0620

Unavailable

4

NUT 8MM

312B0800

Unavailable

5

BOLT,RETURN SPRING

92001-1401

Unavailable

6

SPRING,TENSION

92081-1129

Unavailable

7

COLLAR

92027-189

Unavailable

8

LEVER ASSY,GEAR CHANG

13161-1003

Unavailable

9

SPRING,CHANGE LEVER

92081-076

Unavailable

10

LEVER ASSY,GEAR CHANG

13236-007

Unavailable

11

LEVER,CHANGE DRUM

13236-1001

Unavailable

12

WASHER,PLAIN

92022-1053

Unavailable

13

SCREW,6MM

92011-023

Unavailable

14

ROD-SHIFT,L=93.7

49047-1003

Unavailable

15

SHIFT FORK,2ND & 3RD

13140-1004

Unavailable

16

SHIFT FORK,LOW

13140-1003

Unavailable

17

DRUM ASSY,GEAR CHANGE

13239-1003

Unavailable

18

PIN,DOWEL,4X16.8

92042-029

Unavailable

19

HOLDER,CHANGE DRUM PIN

13142-014

Unavailable

20

WASHER LOCK 6MM

464H0600

Unavailable

21

SCREW-PAN-CROS,6X14

220B0614

Unavailable

22

SHIFT FORK,4TH & TOP

13140-1005

Unavailable

23

ROD,SHIFT 71.7M/M

49047-1002

Unavailable

24

PLATE,CHANGE DRUM

13169-012

Unavailable

25

SCREW-PAN-CROS,6X14

220B0614

Unavailable

26

SPRING-COIL

92081-091

Unavailable

27

SPRING

92081-119

Unavailable
