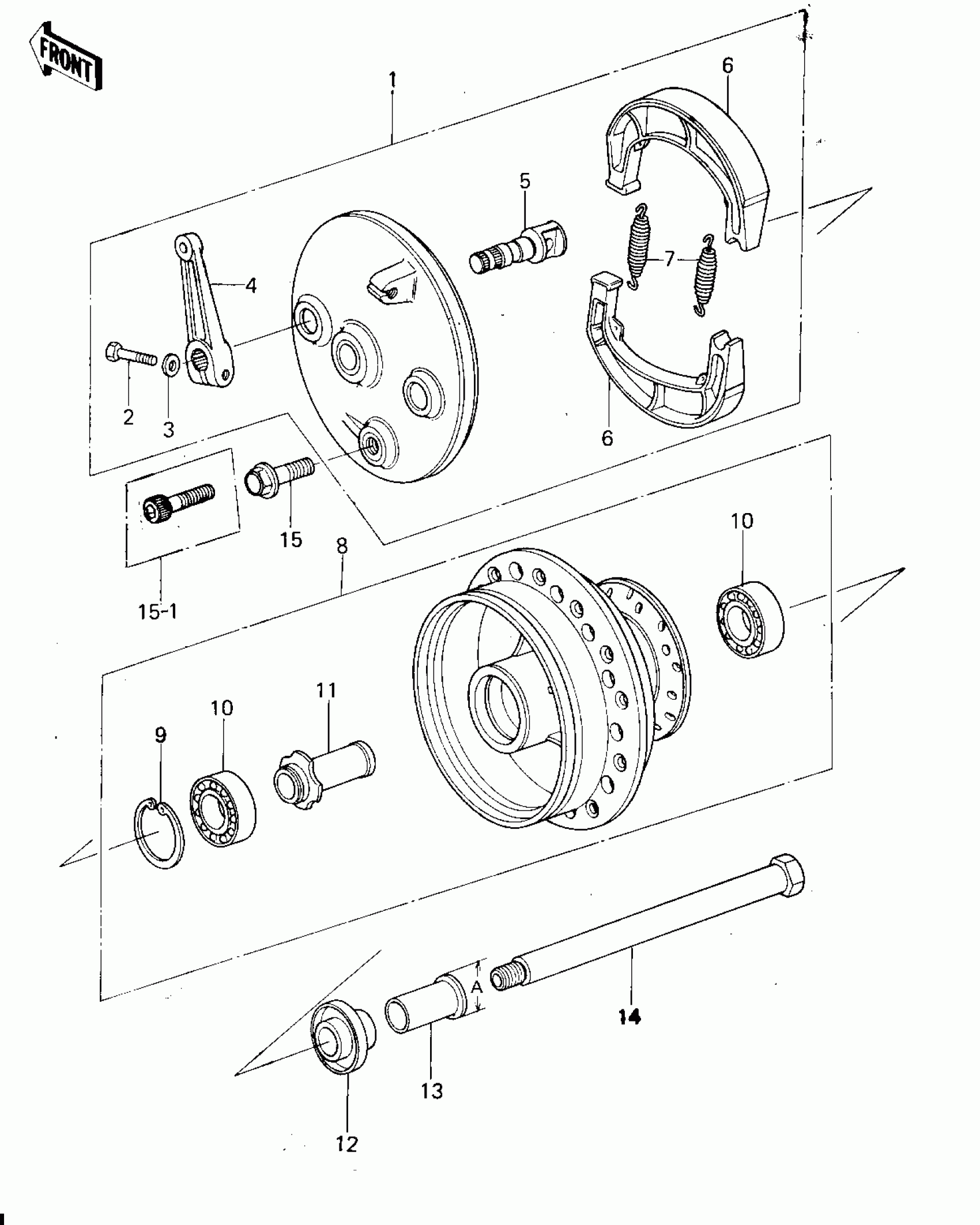

Kawasaki KX250-A5 FRONT HUB/BRAKE (78-79) Diagram

#

Description

Price

1

PANEL-ASY,FR BRK

41035-1002

Unavailable

2

BOLT-UPSET

112G0622

Unavailable

3

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

4

LEVER,FRONT BRAKE CAM

41053-1003

Unavailable

5

CAM SHAFT,BRAKE

41050-1002

Unavailable

6

SHOE-BRAKE

41048-1068

Unavailable

7

SPRING,BRAKE SHOE

42020-004

Unavailable

8

DRUM-ASSY,FR BRK,BLK

41034-1006-21

Unavailable

9

RING-SNAP,42MM

92033-1041

Unavailable

10

BEARING,FRONT DRUM

92045-033

Unavailable

11

COLLAR,FRONT BRAKE

92027-1034

Unavailable

12

COLLAR,FRONT AXLE

92027-1035

Unavailable

13

COLLAR,FRONT AXLE

92027-1036

Unavailable

13

COLLAR,FRONT AXLE

92027-1178

Unavailable

14

AXLE,FRONT

41068-1006

Unavailable

15

BOLT,HEX HEAD,10X28

92001-1039

Unavailable

15-1

BOLT,SOCKET,10X45

92001-1202

Unavailable
