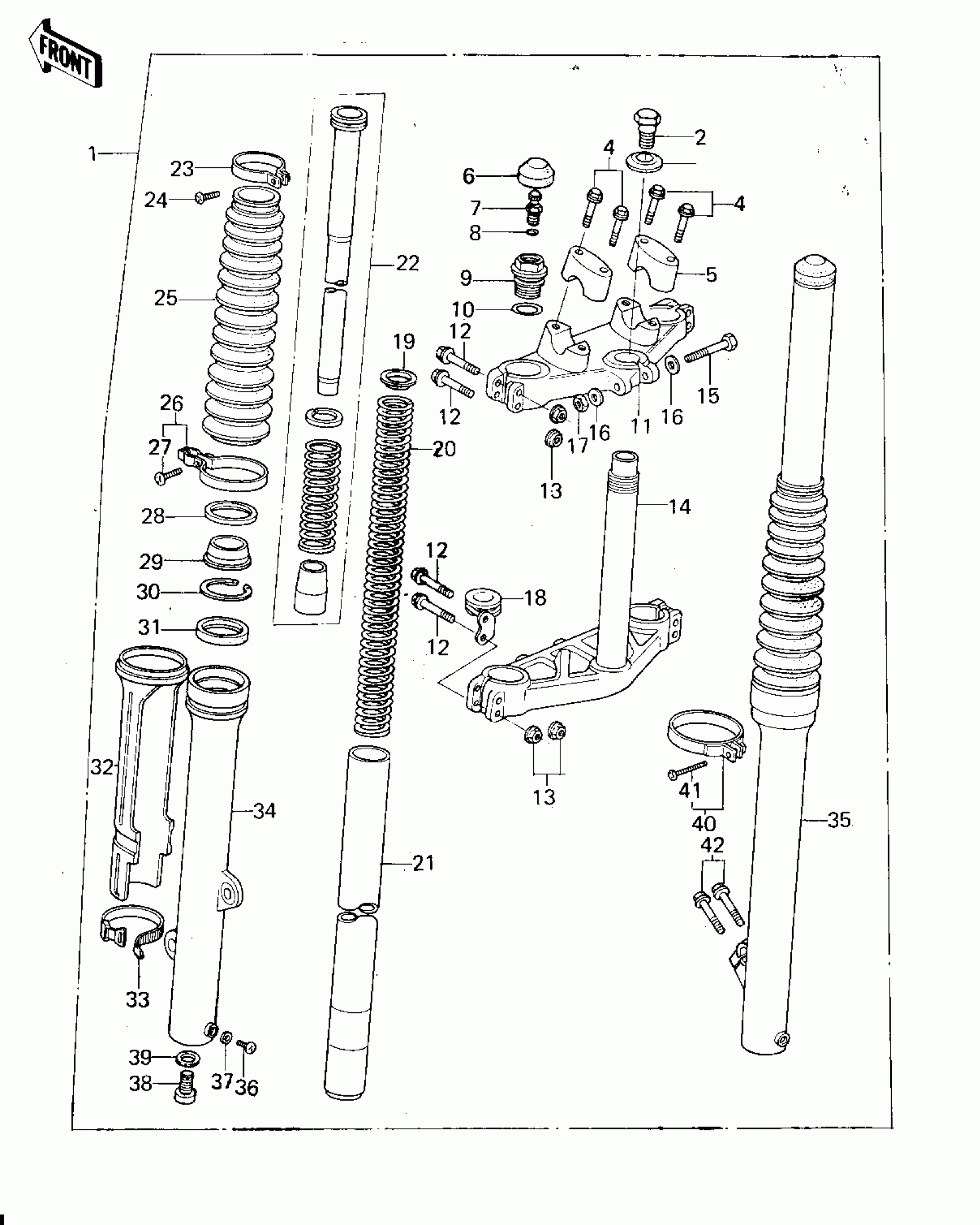

Kawasaki KX250-A5 FRONT FORK (KX250-A5) (78-79) Diagram
#
1
FORK-FRONT
44001-1080
Unavailable
2
BOLT,FORK TOP
44041-065
Unavailable
3
WASHER
44043-052
Unavailable
4
BOLT,HEX HEAD,8X35
92001-1059
Unavailable
5
HOLDER,HANDLE BAR
46012-1003
Unavailable
6
CAP,RUBBER,FORK TOP
44029-1009
Unavailable
7
VALVE ASSY,AIR
16126-1003
Unavailable
8
"0" RING,AIR VALVE
92055-1018
Unavailable
9
CAP,FORK TOP
44029-1008
Unavailable
10
RING-O,FORK TOP CAP
92055-1050
Unavailable
11
HEAD,STEERING STEM
44039-1022
Unavailable
12
BOLT,HEX HEAD,8X53
92001-1060
Unavailable
13
NUT,8M/M
44007-1002
Unavailable
14
STEM,STEERING
44037-1026
Unavailable
15
BOLT,HEX HEAD,8X57
92001-1141
Unavailable
16
WASHER PLAIN 8MM
410B0800
Unavailable
17
NUT,LOCK,8MM
92015-1124
Unavailable
18
CLAMP,CABLE
92072-1027
Unavailable
19
GUIDE-FORK SPRING
44028-1003
Unavailable
20
SPRING,FORK INNER
44026-1027
Unavailable
21
TUBE,FORK INNER
44013-1018
Unavailable
22
CYLINDER-FORK
44022-1019
Unavailable
23
BAND,BOOT
92072-1008
Unavailable
24
SCREW-PAN-CROS
220B0414
Unavailable
25
BOOT,FORK,L.GREEN
49006-1027
Unavailable
26
CLAMP,BOOT,L.H
92072-1026
Unavailable
27
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
28
CASE,DUST SHIELD
32099-1010
Unavailable
29
DUST SHIELD,FORK OU T
92093-1022
Unavailable
30
SNAP RING,FORK OUT TU
92033-1035
Unavailable
31
OIL SEAL,FORK OUT TUB
92049-1042
Unavailable
32
GUARD,FORK
55020-1022
Unavailable
33
BAND,BOOTS
92072-1009
Unavailable
34
TUBE,LH,FORK OUTER
44005-1021
Unavailable
35
TUBE,RH,FORK OUTER
44006-1021
Unavailable
36
SCREW PAN HEAD 4X8
220B0408
Unavailable
37
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
38
BOLT,FORK CYLINDER
92001-1186
Unavailable
39
GASKET,FORK CYLINDER BOLT
11009-1127
Unavailable
40
CLAMP,BOOT,R.H
92072-1025
Unavailable
41
SCREW PAN HEAD 4X25
220B0425
Unavailable
42
BOLT,HEX HEAD,8X25
92001-1058
Unavailable
