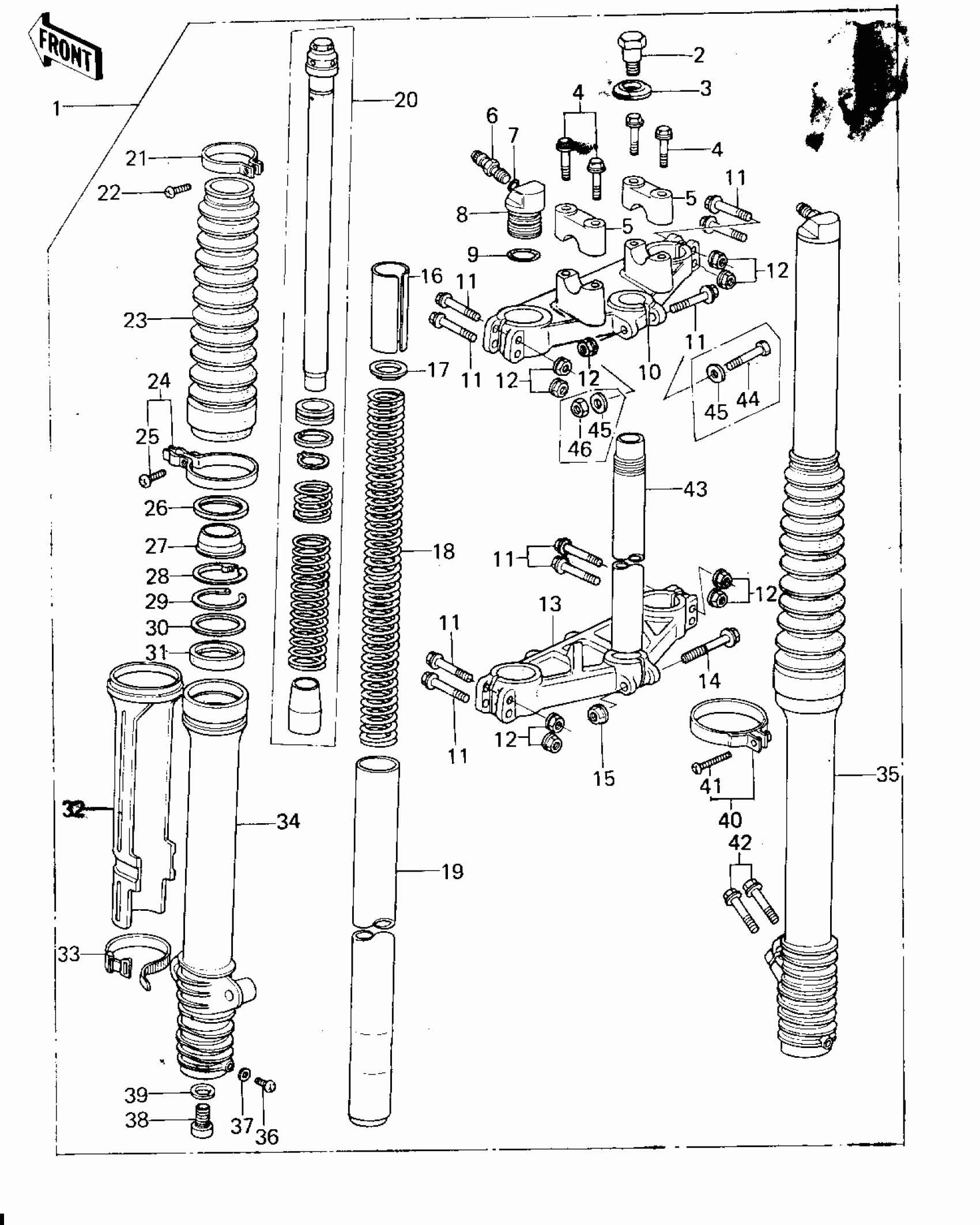

Kawasaki KX250-A5 FRONT FORK (KX250-A4) (78-79) Diagram
#
1
FORK-FRONT
44001-1044
Unavailable
2
BOLT,FORK TOP
44041-065
Unavailable
3
WASHER
44043-052
Unavailable
4
BOLT,HEX HEAD,8X35
92001-1059
Unavailable
5
HOLDER,HANDLE BAR
46012-1003
Unavailable
6
VALVE ASSY,AIR
16126-1003
Unavailable
7
"0" RING,AIR VALVE
92055-1018
Unavailable
8
CAP,FORK TOP
44029-1005
Unavailable
9
RING-O,FORK TOP
92055-1012
Unavailable
10
HEAD,STEERING STEM
44039-1009
Unavailable
11
BOLT,HEX HEAD,8X53
92001-1060
Unavailable
11
BOLT,HEX HEAD,8X53
92001-1060
Unavailable
12
NUT,8M/M
44007-1002
Unavailable
12
NUT,8M/M
44007-1002
Unavailable
13
STEM,STEERING
44037-1005
Unavailable
14
BOLT,HEX HEAD,10X60
92001-1061
Unavailable
15
NUT 10M/M
44007-1003
Unavailable
16
SPACER,FORK SPRING
92026-1012
Unavailable
17
GUIDE,FORK SPRING
44028-033
Unavailable
18
SPRING,FORK INNER
44026-1017
Unavailable
19
TUBE,FORK INNER
44013-1009
Unavailable
20
CYLINDER-FORK
44022-1007
Unavailable
21
BAND,BOOT
92072-1008
Unavailable
22
SCREW-PAN-CROS
220B0414
Unavailable
23
BOOTS,FORK
49006-1009
Unavailable
24
BAND,BOOTS L.H.
92072-1011
Unavailable
25
SCREW PAN HEAD 6X18
220B0618
Unavailable
26
CASE,DUST SHIELD
32099-1002
Unavailable
27
DUST SHIELD,FORK
92093-1007
Unavailable
28
GUIDE,FORK OUTER TUBE
13070-1003
Unavailable
29
RING,SNAP,FORK OUTER
92033-1005
Unavailable
30
WASHER,FORK OUTER
92022-1027
Unavailable
31
OIL,SEAL,FORK OUTER
92049-1009
Unavailable
32
GUARD,FORK
55020-1012
Unavailable
33
BAND,BOOTS
92072-1009
Unavailable
34
TUBE,LH,FORK OUTER
44005-1010
Unavailable
35
TUBE,RH,FORK OUTER
44006-1010
Unavailable
36
SCREW PAN HEAD 4X8
220B0408
Unavailable
37
GASKET,FORK DRAIN PLUG
44045-002
Unavailable
38
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
39
GASKET
44045-057
Unavailable
40
BAND,BOOTS,R.H.
92072-1010
Unavailable
41
SCREW-PAN HEAD,4X20
220E0420A
Unavailable
42
BOLT,HEX HEAD,8X25
92001-1058
Unavailable
43
SHAFT,STEERING STEM
44052-008
Unavailable
44
BOLT,HEX HEAD,8X57
92001-1141
Unavailable
45
WASHER PLAIN 8MM
410B0800
Unavailable
46
NUT,LOCK,8MM
92015-1124
Unavailable
