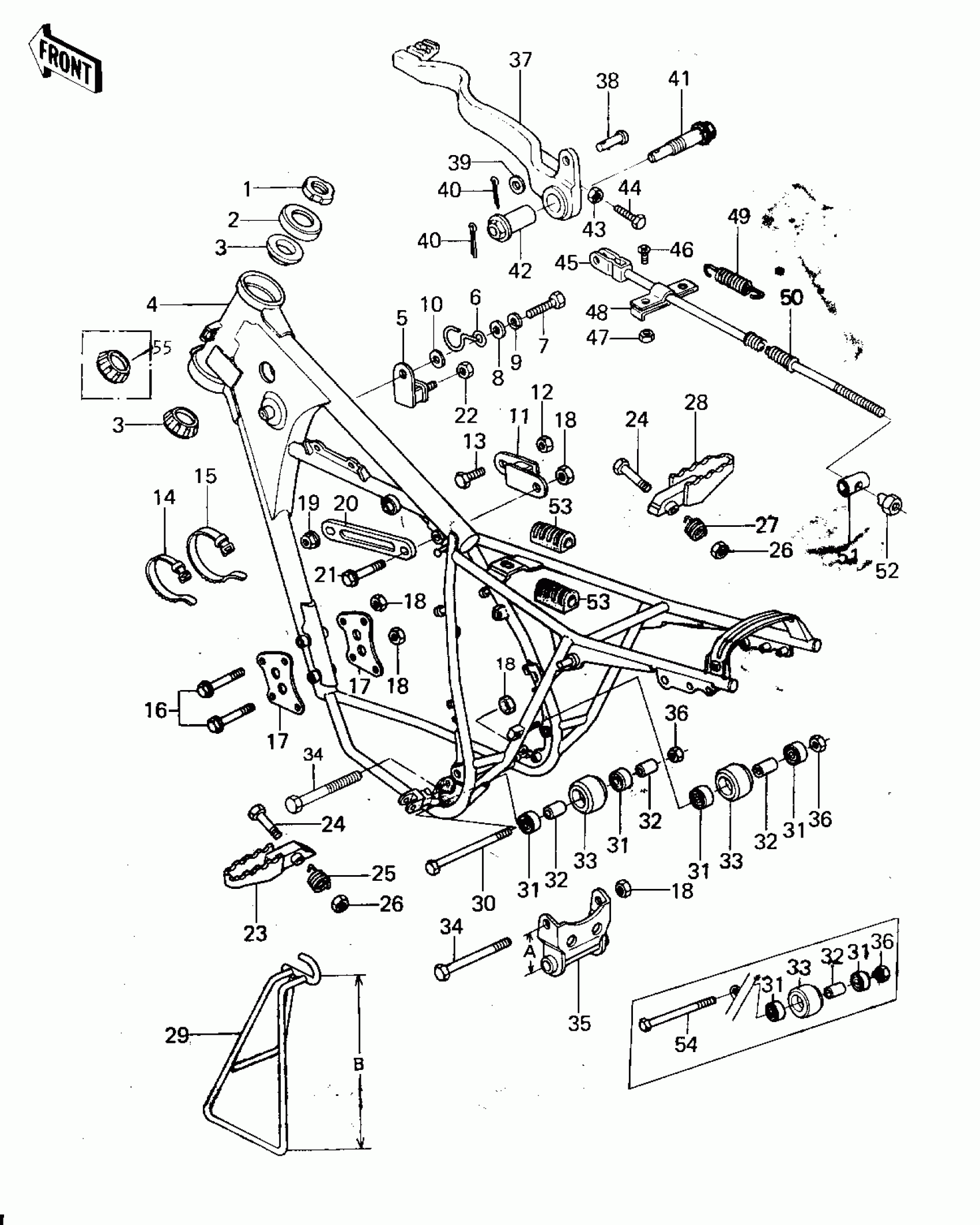

Kawasaki KX250-A5 FRAME/FRAME FITTINGS (78-79) Diagram
#
1
NUT,25MM,T=12
92015-1546
Unavailable
2
CAP,STEERING STEM
46098-015
Unavailable
3
RACE,ROLLER,32005JR RS
92047-017
Unavailable
3
RACE,ROLLER,32005JR RS
92047-017
Unavailable
4
FRAME
32002-1014
Unavailable
4
FRAME
32002-1073
Unavailable
5
DAMPER,MUFFLER FITING
92075-1060
Unavailable
5
DAMPER,MUFFLER FITING
92075-1060
Unavailable
6
CLAMP,CABLE
92037-1064
Unavailable
7
BOLT-SMALL-UPSET 8X25
115G0825
Unavailable
8
WASHER PLAIN 8MM
411B0800
Unavailable
9
WASHER SPRING 8MM
461F0800
Unavailable
10
WASHER,8.5X20X1.6
92022-1561
Unavailable
11
DAMPER MUFFLER FITT
92075-1025
Unavailable
12
NUT,LOCK,6MM
92019-008
Unavailable
13
BOLT-UPSET,6X12
112G0612
Unavailable
14
BAND,L=149
92072-031
Unavailable
14
BAND,L=149
92072-031
Unavailable
15
BAND,L=186
92072-056
Unavailable
16
BOLT HEX HEAD,10X66.5
92001-1033
Unavailable
17
BRACKET,ENGINE
32029-1090
Unavailable
17
BRACKET,ENGINE
32029-1090
Unavailable
18
NUT,LOCK,10MM
92019-021
Unavailable
19
NUT,10MM
92015-1021
Unavailable
20
BRACKET,ENGINE
32029-1089
Unavailable
20
BRACKET,ENGINE
32029-1089
Unavailable
21
BOLT,HEX HEAD,10X58
92001-1030
Unavailable
22
NUT,8MM
92019-018
Unavailable
23
STEP
34028-1034
Unavailable
24
BOLT,HEX HEAD 10X40
92001-1028
Unavailable
25
SPRING,L.H,FOOTREST
92081-1254
Unavailable
26
NUT,LOCK,10MM
92019-021
Unavailable
27
SPRING,R.H,FOOTREST
92081-1255
Unavailable
28
STEP
34028-1033
Unavailable
29
STAND-SIDE
34024-1012
Unavailable
29
STAND-SIDE
34024-1029
Unavailable
30
BOLT,8X78.5
92001-1093
Unavailable
31
BEARING-BALL,608LLU/2A
92045-1009
Unavailable
32
COLLAR
92027-1081
Unavailable
33
ROLLER
92122-1014
Unavailable
34
BOLT HEX HEAD,10X15
92001-1031
Unavailable
35
BRACKET,ENGINE,REAR
32029-1021
Unavailable
35
BRACKET-ENGINE
32029-1073
Unavailable
36
NUT,LOCK,8MM
92017-013
Unavailable
37
PEDAL,BRAKE
43001-1007
Unavailable
38
PIN,6X17
92043-064
Unavailable
39
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
40
PIN COTTER 2.0X15
550D2015
Unavailable
41
BOLT HEX HEAD,12M/M
92001-1036
Unavailable
42
BOLT,HEX HEAD,12M/M
92001-1035
Unavailable
43
NUT 6MM
311B0600
Unavailable
44
BOLT-UPSET
112G0625
Unavailable
44
BOLT,6X25
92001-1090
Unavailable
45
ROD,BRAKE
43011-1002
Unavailable
45
ROD,BRAKE
43011-1012
Unavailable
46
SCREW-PAN-CROS,3X6
220B0306
Unavailable
47
NUT-HEX
311B0300
Unavailable
48
CLAMP,RETURN SPRING
92037-1032
Unavailable
49
SPRING RETURN
92081-1059
Unavailable
50
SPRING,BRAKE ROD
43012-001
Unavailable
51
PIN,BRAKE
92043-1024
Unavailable
52
NUT,BRAKE ROD
92015-042
Unavailable
53
DAMPER RUBBER
92075-1096
Unavailable
54
BOLT,10X45
92001-1182
Unavailable
55
BEARING-ROLLER,LWR,32006JR RS
92116-1008
Unavailable
