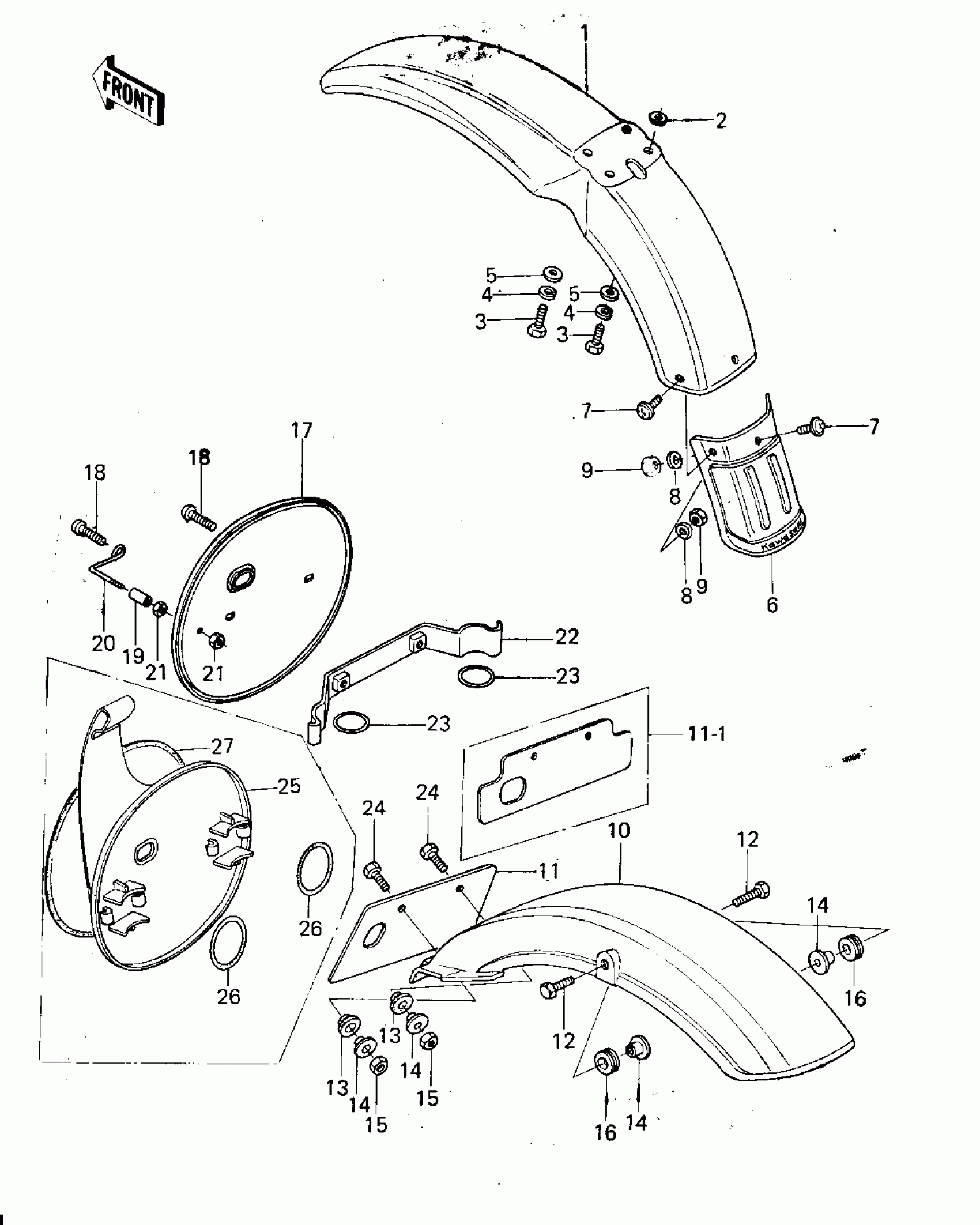

Kawasaki KX250-A5 FENDERS/NUMBER PLATE (78-79) Diagram
#
Description
Price
1
FENDER-FR,L.GREEN
35004-1015-6W
Unavailable
2
WASHER,PLAIN
92022-283
Unavailable
3
BOLT-UPSET
112G0618
Unavailable
4
WASHER SPRING 6MM
461F0600
Unavailable
5
WASHER,6.5X20X1.6
92022-125
Unavailable
6
FLAP,FRONT FENDER
35019-1002
Unavailable
6
FLAP,FRONT FENDER
35019-1002
Unavailable
7
SCREW,6X14,WHITE
92009-1287
Unavailable
8
WASHER PLAIN
92022-024
Unavailable
9
NUT,LOCK,6MM
92019-008
Unavailable
10
FENDER-RR,L.GREEN
35022-1002-6W
Unavailable
10
FENDER-RR,L.GREEN
35022-1057-6W
Unavailable
11
FLAP,REAR FENDER
35019-1001
Unavailable
11
FLAP,REAR FENDER
35019-1001
Unavailable
11-1
FLAP,REAR FENDER
35019-1008
Unavailable
12
BOLT-UPSET
112G0618
Unavailable
13
DAMPER RUBBER
92075-103
Unavailable
14
COLLAR
92027-1045
Unavailable
15
NUT,LOCK,6MM
92019-008
Unavailable
16
DAMPER
92075-1028
Unavailable
17
PLATE,NUMBER
58029-1001-6W
Unavailable
18
SCREW,6X14,WHITE
92009-1287
Unavailable
19
ROLLER
92122-1001
Unavailable
20
GUIDE,NUMBER PLATE
13070-1002
Unavailable
21
NUT-HEX
311B0300
Unavailable
22
BRACKET,NUMBER PLATE
11034-1089
Unavailable
23
O RING,55MM
671B2555
Unavailable
24
BOLT-UPSET,6X20
112G0620
Unavailable
25
PLATE-NUMBER,L.GREEN
58029-1008-D4
Unavailable
26
O RING,70MM
671B2570
Unavailable
27
PATTERN,NUMBER PLATE
56027-1512
Unavailable
