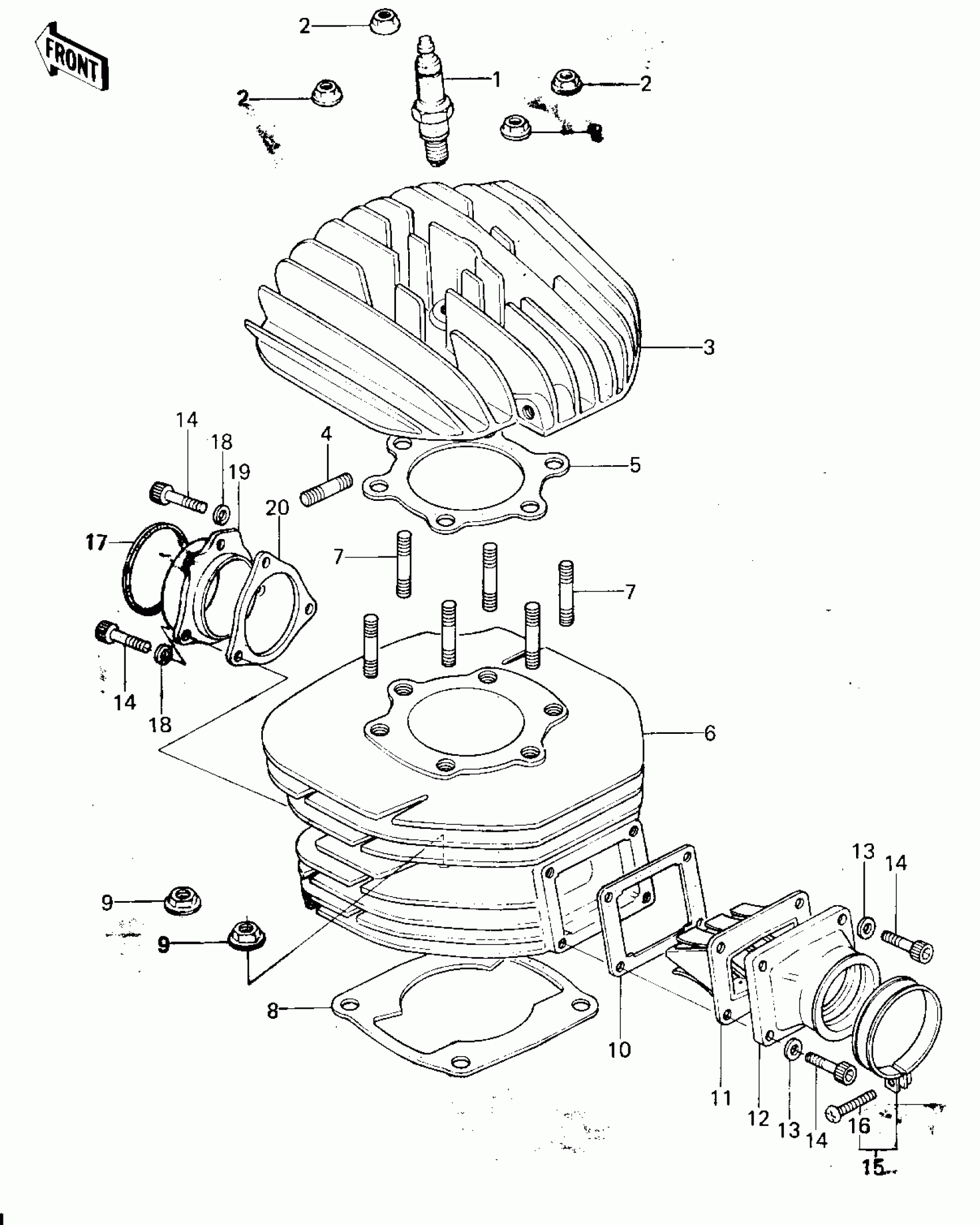

Kawasaki KX250-A5 CYLINDER HEAD/CYLINDER/REED VALVE (78-79 Diagram
#
Description
Price
1
Roadster Spyder RT-LTD (SE6), Cognac | North America
B9EV
Unavailable
1
SPARK PLUG BR9EV
92070-3002
Unavailable
2
NUT,FLANGED,8MM
92015-1014
Unavailable
3
CYLINDER HEAD,F BLACK
11001-1031
Unavailable
4
STUD,10X18
172G1018
Unavailable
5
GASKET,CYL HEAD
11004-1012
Unavailable
6
CYLINDER,ELECTRO-FUSE
11005-1034
Unavailable
6
CYLINDER,ELECTRO-FUSE
11005-1034
Unavailable
7
STUD 8X40
172G0840
Unavailable
8
GASKET,CYLINDER BASE
11009-038
Unavailable
9
NUT,10MM
92015-1021
Unavailable
10
GASKET,REED VALVE
11009-1018
Unavailable
11
VALVE ASSY,REED
12021-1001
Unavailable
11
VALVE ASSY,REED
12021-1007
Unavailable
12
HOLDER,CARBURETOR
16065-1005
Unavailable
13
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
14
BOLT-SOCKET,6X25,BLACK
120S0625
Unavailable
15
CLAMP,CARBURETOR HLDR
92037-116
Unavailable
16
SCREW-PAN-CROS
220B0535
Unavailable
17
Not Available As Spare Part - Friction Washer
Unavailable
17
GASKET,EXHAUST PIPE
11009-1123
Unavailable
18
WASHER SPRING 6MM
461F0600
Unavailable
19
HOLDER,EXHAUST PIPE
18069-1001
Unavailable
20
GASKET,EXHAUST PIPE
11009-1017
Unavailable
