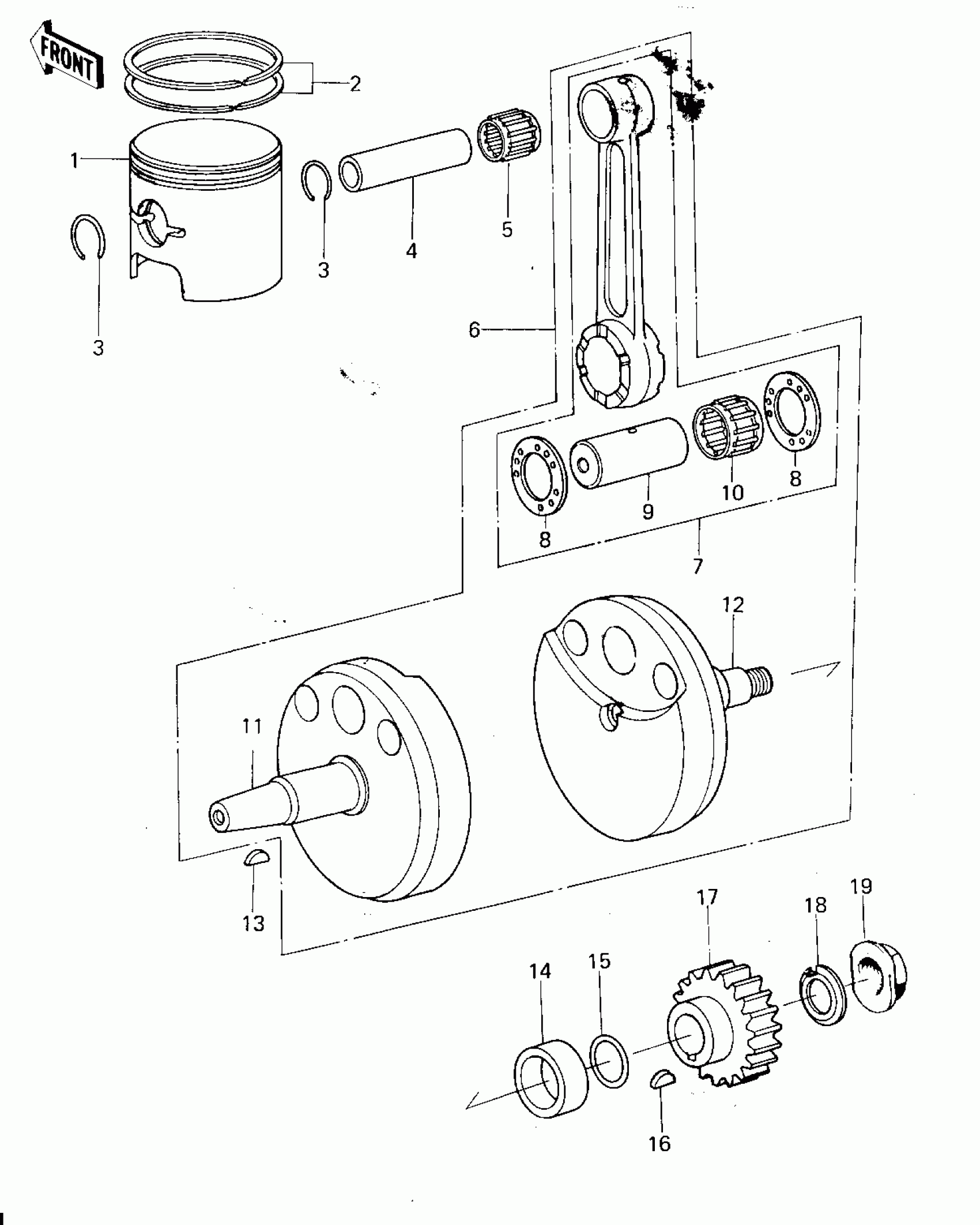

Kawasaki KX250-A5 CRANKSHAFT/PISTON (78-79) Diagram

#

Description
Price

1

PISTON,STD

13001-1004

Unavailable

2

RING SET,STD

13008-5008

Unavailable

3

CIRCLIP-PISTON PIN

92036-015

Unavailable

4

PIN-PISTON

13002-017

Unavailable

5

BEARING-SMALL END

13033-1010

Unavailable

6

CRANK & CONROD ASSY

13031-1004

Unavailable

6

CRANSHAFT ASSY

13031-1020

Unavailable

7

CONNECTING ROD SET

13044-5007

Unavailable

8

SPACER

92026-1241

Unavailable

9

PIN,CRANK

13035-034

Unavailable

10

BEARING,BIG END NEEDL

13034-049

Unavailable

11

CRANKSHAFT,L.H

13037-070

Unavailable

11

CRANKSHAFT,L.H

13037-1027

Unavailable

12

CRANKSHAFT,R.H

13038-058

Unavailable

12

CRANKSHAFT,R.H

13037-1028

Unavailable

13

KEY,WOODRUFF

92038-001

Unavailable

14

COLLAR,CRANKSHAFT

92027-212

Unavailable

15

O RING,20MM

670B2020

Unavailable

16

WOODRUFF KEY

510A5100

Unavailable

17

GEAR,PRIMARY 22T

13121-029

Unavailable

18

WASHER,LOCK

92024-061

Unavailable

19

NUT,CRANKSHAFT

92015-069

Unavailable
