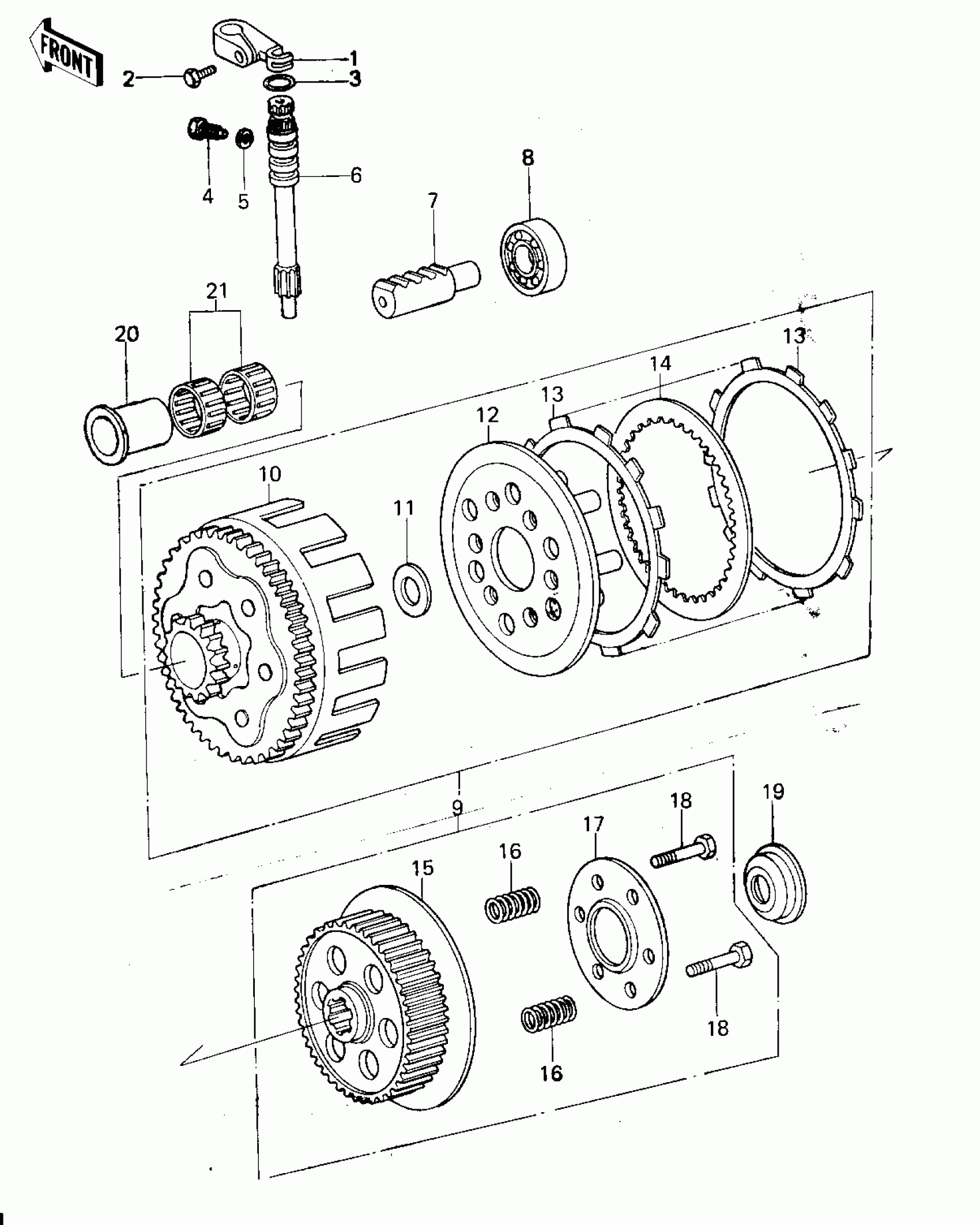

Kawasaki KX250-A5 CLUTCH (78-79) Diagram
#
Description
Price
1
LEVER,CLUTCH RELEASE
13168-1042
Unavailable
1
LEVER,CLUTCH RELEASE
13168-1042
Unavailable
2
BOLT-UPSET
112G0618
Unavailable
3
O RING,10MM
670B2010
Unavailable
4
BOLT,CLUTCH RELEASE
92003-130
Unavailable
5
GASKET,6X14X0.8
92065-092
Unavailable
6
SHAFT,CLUTCH RELEASE
13106-008
Unavailable
7
ROD,CLUTCH PUSH
13116-025
Unavailable
8
BEARING-BALL,#627
92045-026
Unavailable
9
CLUTCH-ASSY
13081-1004
Unavailable
10
HOUSING,CLUTCH
13095-1005
Unavailable
11
WASHER,CLUTCH THRUST
92022-282
Unavailable
12
WHEEL,CLUTCH
13086-016
Unavailable
13
PLATE,CLUTCH FRICTION
13088-041
Unavailable
14
PLATE,CLUTCH STEEL
13089-025
Unavailable
15
HUB,CLUTCH
13087-039
Unavailable
16
SPRING,CLUTCH
92081-083
Unavailable
17
PLATE,CLUTCH SPRING
13091-016
Unavailable
18
BOLT-UPSET
112G0618
Unavailable
19
PUSHER,CLUTCH SPRING
13114-1001
Unavailable
20
BUSHING,CLUTCH
92028-1013
Unavailable
21
BEARING,NEEDLE
92046-1003
Unavailable
