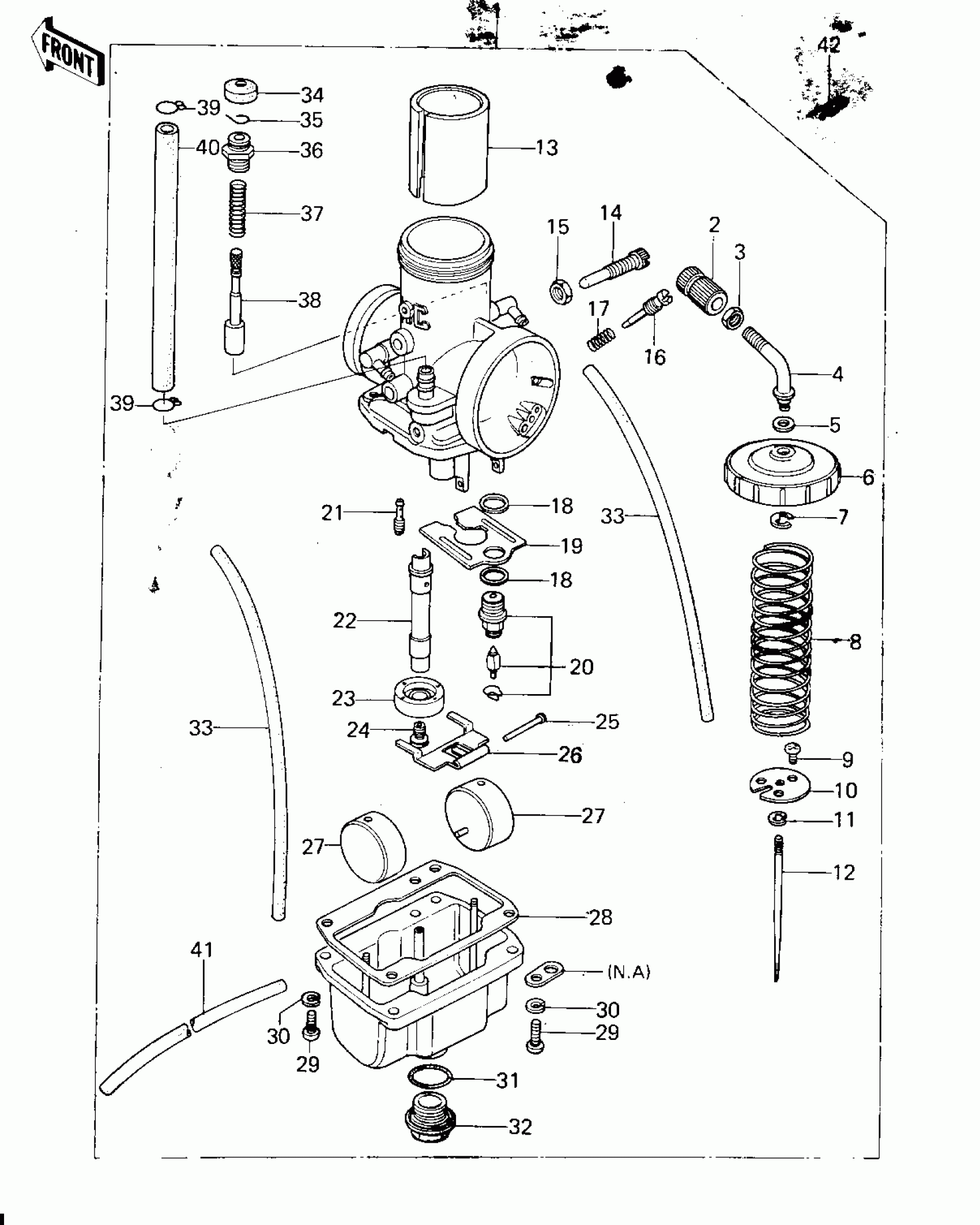

Kawasaki KX250-A5 CARBURETOR (78-79) Diagram
#
1
CARBURETOR ASSY
16001-1015
Unavailable
1
CARBURETOR ASSY
16001-1099
Unavailable
2
ADJUSTER,CABLE
16002-1003
Unavailable
3
NUT,CABLE ADJUST LOCK
16003-004
Unavailable
4
GUIDE,CABLE
13070-1014
Unavailable
5
GASKET,CABLE GUIDE
11009-1074
Unavailable
6
TOP,MIXING CHAMBER
16004-1010
Unavailable
7
CLAMP,CABLE GUIDE
16008-011
Unavailable
8
SPRING-THROTTLE VALV
16006-016
Unavailable
9
SCREW,4X5
92009-1037
Unavailable
10
SEAT,THROTTLE VALVE
16007-1004
Unavailable
10
SEAT,THROTTLE VALVE
16007-1007
Unavailable
11
CLAMP,E-TYPE
16008-010
Unavailable
12
JET NEEDLE,6FL26
16009-1017
Unavailable
12
JET NEEDLE,6FL28
16009-1033
Unavailable
13
VALVE,THROTTLE,CA3.0
16025-1011
Unavailable
13
VALVE,THROTTLE,CA2.5
16025-1027
Unavailable
14
SCREW,THROTTLE ADJUST
16021-022
Unavailable
15
NUT,ADJUST LOCK
16003-006
Unavailable
16
SCREW
16014-006
Unavailable
17
SPRING,PILOT AIR SCREW
16022-007
Unavailable
18
GASKET,FLOAT VALVE
11009-1076
Unavailable
19
BAFFLE-CARB
16038-019
Unavailable
20
FLOAT VALVE ASSY
16030-020
Unavailable
21
PILOT JET,#50
92064-1005
Unavailable
22
NEEDLE JET,Q-8
16017-1024
Unavailable
22
NEEDLE JET,R-2
16017-1036
Unavailable
23
HOLDER,NEEDLE JET
16065-1015
Unavailable
24
MAIN JET,#165R
92063-1020
Unavailable
24
MAIN JET,#172.5R
92063-1027
Unavailable
24
MAIN JET,#177-5R
92063-1040
Unavailable
24
MAIN JET,#175R
92063-1039
Unavailable
24
MAIN JET,#170R
92063-1022
Unavailable
24
MAIN JET,#167.5R
92063-1021
Unavailable
24
MAIN JET,#162.5R
92063-1019
Unavailable
24
MAIN JET,#160R
92063-1018
Unavailable
25
PIN,FLOAT
16032-008
Unavailable
26
ARM-FLOAT
16055-009
Unavailable
27
FLOAT
16031-029
Unavailable
28
GASKET,FLOAT CHAMBER
16019-028
Unavailable
29
SCREW PAN HEAD 5X16
220B0516A
Unavailable
30
WASHER SPRING 5MM
461F0500
Unavailable
31
GASKET,MAIN JET COVER
16038-009
Unavailable
32
COVER-MAIN JET
16049-006
Unavailable
33
HOSE,3.5OX7.5OX410M/M
92059-1027
Unavailable
34
CAP,STARTER PLUNGER
16036-013
Unavailable
35
CLAMP
92037-1077
Unavailable
36
CAP-STARTER PLUNGER
16012-021
Unavailable
37
SPRING,STARTER PLUNGR
16013-011
Unavailable
38
PLUNGER ASSY,STARTER
16016-013
Unavailable
39
CLAMP,CARB CONECT HOS
92037-056
Unavailable
40
HOSE,FUEL,6.5OX11.5O
92059-1026
Unavailable
41
HOSE,OVERFLOW
92059-1025
Unavailable
42
RING-SNAP
92036-018
Unavailable
