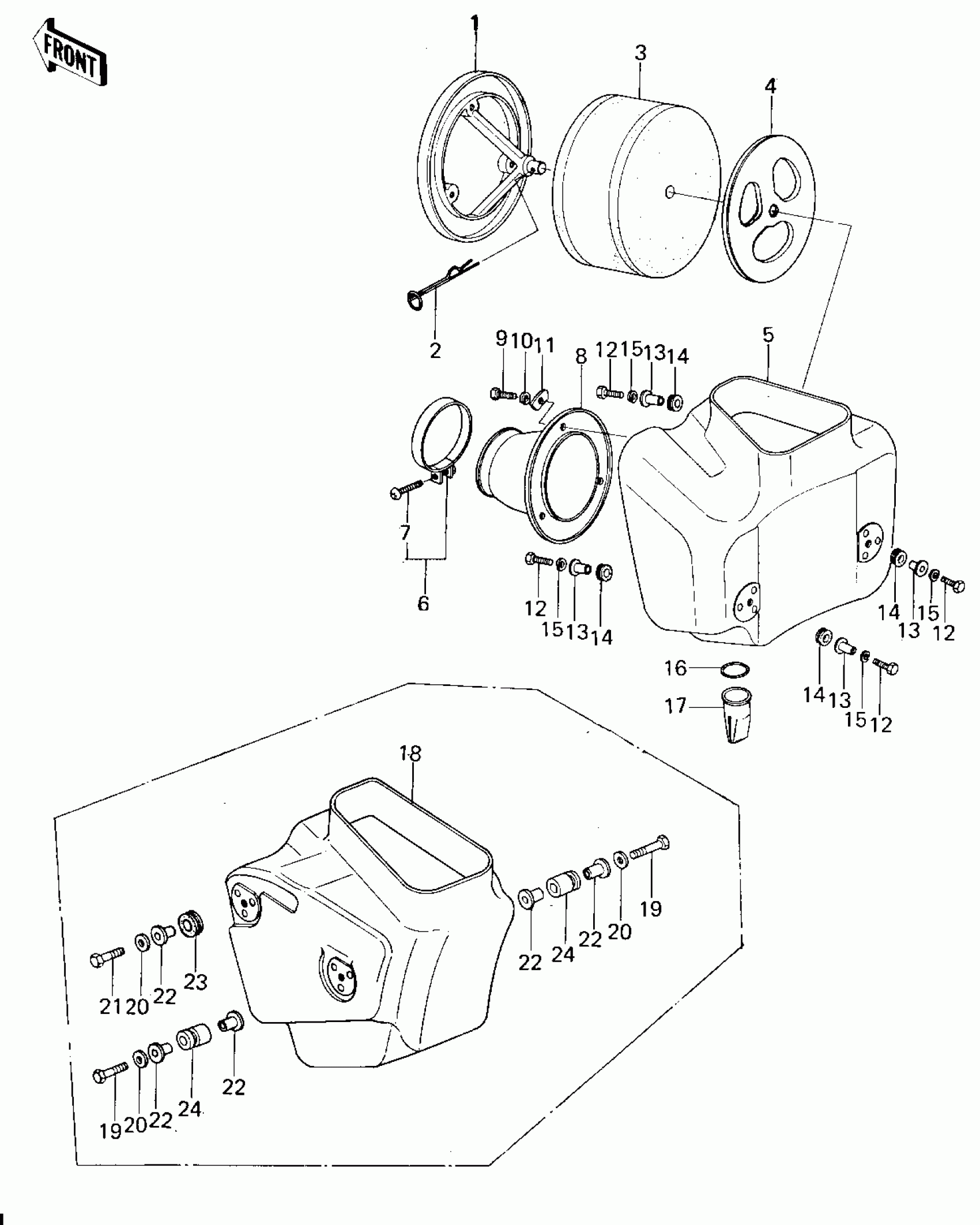

Kawasaki KX250-A5 AIR CLEANER (78-79) Diagram
#
Description
Price
1
BODY,AIR CLEANER
11011-1007
Unavailable
2
COTTER,AIR CLEANER
92041-1001
Unavailable
3
ELEMENT,AIR CLNR
11013-1005
Unavailable
4
CAP,AIR CLEANER
11012-1013
Unavailable
5
BODY,AIR CLEANER
11011-1008
Unavailable
6
CLAMP
92037-068
Unavailable
7
SCREW PAN HEAD 6X35
220B0635
Unavailable
8
DUCT,AIR CLEANER
14073-1005
Unavailable
9
BOLT-UPSET
112G0618
Unavailable
10
WASHER SPRING 6MM
461F0600
Unavailable
11
WASHER,PLAIN
92022-1018
Unavailable
12
BOLT-UPSET,6X20
112G0620
Unavailable
13
COLLAR
92027-194
Unavailable
14
DAMPER RUBBER
92075-076
Unavailable
15
WASHER SPRING 6MM
461F0600
Unavailable
16
O RING,20MM
670B2020
Unavailable
17
BOOT
49006-1012
Unavailable
18
BODY,AIR CLEANER
11011-1030
Unavailable
19
BOLT 6X35
110R0635
Unavailable
20
WASHER SPRING 6MM
461F0600
Unavailable
21
BOLT-UPSET,6X20
112G0620
Unavailable
22
COLLAR
92027-194
Unavailable
23
DAMPER RUBBER
92075-076
Unavailable
24
DAMPER RUBBER
92075-1154
Unavailable
