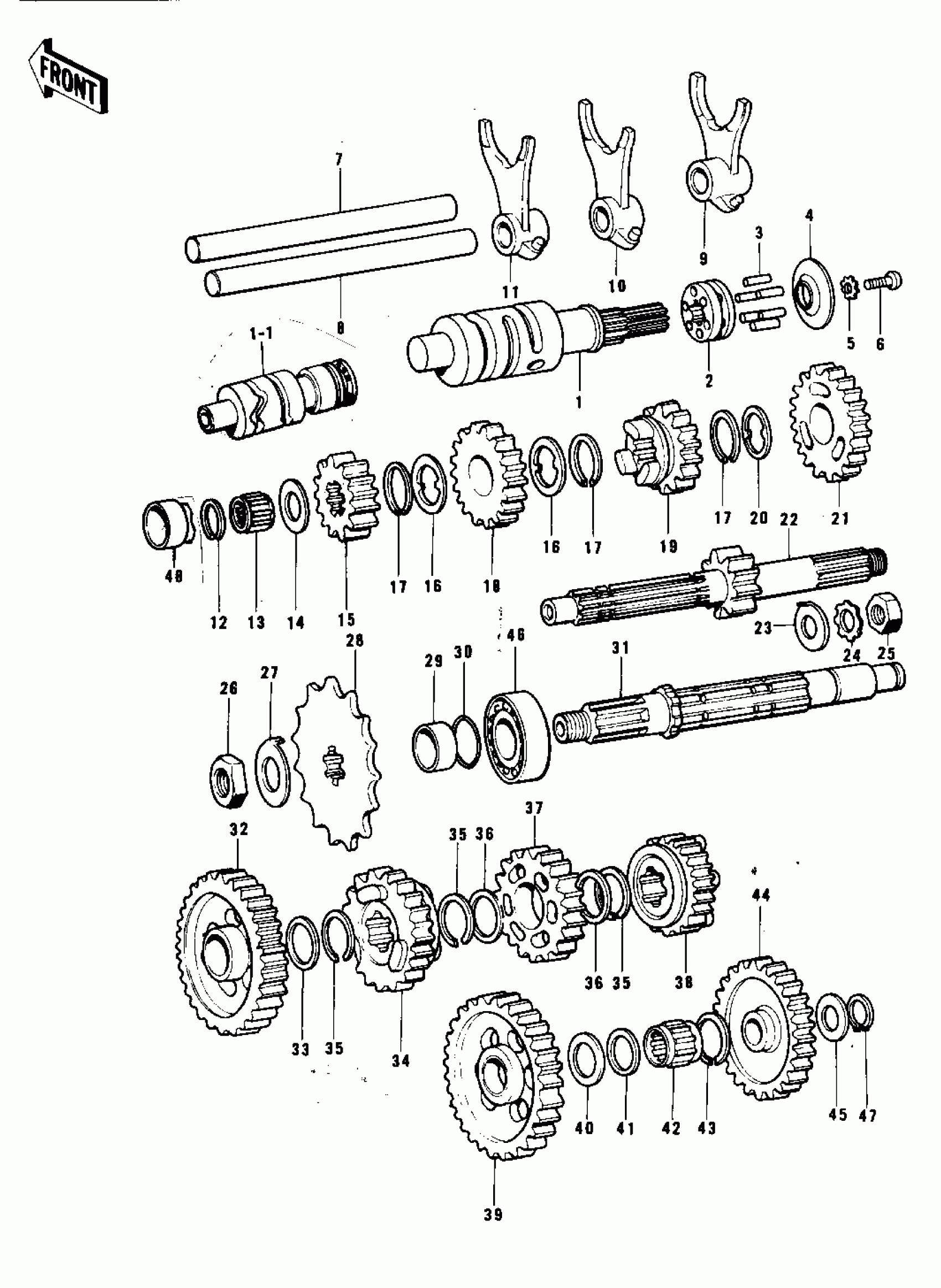

Kawasaki KX250-A3 TRANSMISSION/CHANGE DRUM (74-76) Diagram
#
1-1,3-
DRUM ASSY-CHANGE
13239-016
Unavailable
1-1,3-
DRUM,GEAR CHANGE
13141-040
Unavailable
1-1
DRUM,GEAR CHANGE
13141-043
Unavailable
2
DISC,CHNG DRUM OPRTNG
13145-003
Unavailable
3
PIN,DOWEL,4X16.8
92042-029
Unavailable
4
HOLDER,CHANGE DRUM PIN
13142-014
Unavailable
5
WASHER LOCK 6MM
464H0600
Unavailable
6
SCREW-PAN-CROS,6X14
220B0614
Unavailable
7
ROD-SHIFT,L=93.7
49047-1003
Unavailable
8
ROD,SHIFT 71.7M/M
49047-1002
Unavailable
9
FORK,SELECTOR,LOW
13140-061
Unavailable
10
FORK,SELECTOR,2ND&3RD
13140-062
Unavailable
11
FORK,SELECTOR,4TH&TOP
13140-063
Unavailable
12
CIRCLIP,DRIVE SHAFT
92033-030
Unavailable
13
BEARING,BALL
92046-038
Unavailable
14
WASHER,THRUST,15MM
92022-279
Unavailable
15
2ND GEAR,DRIVE SHAFT
13129-1073
Unavailable
16
WASHER,LOCK
92024-059
Unavailable
17
RING-SNAP,18MM
92033-029
Unavailable
18
4TH GEAR,DRIVE 19T
13134-020
Unavailable
19
3RD GEAR,DRIVE 17T
13132-036
Unavailable
20
WASHER,20.5X25.5X0.5
92022-252
Unavailable
21
TOP GEAR,DRIVE 20T
13136-048
Unavailable
22
SHAFT, DRIVE
13127-049
Unavailable
23
WASHER,16.8X32X1.6
92022-1277
Unavailable
24
WASHER,LOCK,16MM
464H1600
Unavailable
25
NUT,LOCK,16MM
92015-072
Unavailable
26
NUT,18MM
92015-019
Unavailable
27
WASHER,LOCK,18MM
92024-067
Unavailable
28
ENGINE SPROCKET 13T
13144-055
Unavailable
28
ENGINE SPROCKET 14T
13144-056
Unavailable
29
COLLAR-ENG SPROKET
92027-163
Unavailable
30
RING-O
92055-035
Unavailable
31
SHAFT,OUTPUTSHAFT
13128-041
Unavailable
32
2ND GEAR,OUTPUT 26T
13131-044
Unavailable
33
WASHER,22.3X27X0.5
92022-198
Unavailable
34
4TH GEAR,OUTPUT 22T
13135-025
Unavailable
35
RING-SNAP,20X25.5X1.2
92033-025
Unavailable
36
WASHER,TOOTHED,22.5X27X0.5
92024-039
Unavailable
37
3RD,GEAR,OUTPUT 24T
13133-036
Unavailable
38
TOP GEAR,OUTPUT 20T
13137-030
Unavailable
39
LOW GEAR,OUTPUT 28T
13129-052
Unavailable
40
WASHER,PLAIN
92022-280
Unavailable
41
WASHER,PLAIN
92022-281
Unavailable
42
BEARING-NEEDLE
92046-1184
Unavailable
43
RING-SNAP
92033-032
Unavailable
44
IDLE GEAR 28T
13073-012
Unavailable
45
WASHER-THRUST
92022-197
Unavailable
46
BEARING-BALL,#6203ZC3
601B6203Z
Unavailable
47
RING-SNAP
92033-032
Unavailable
48
BUSHING
92028-146
Unavailable
