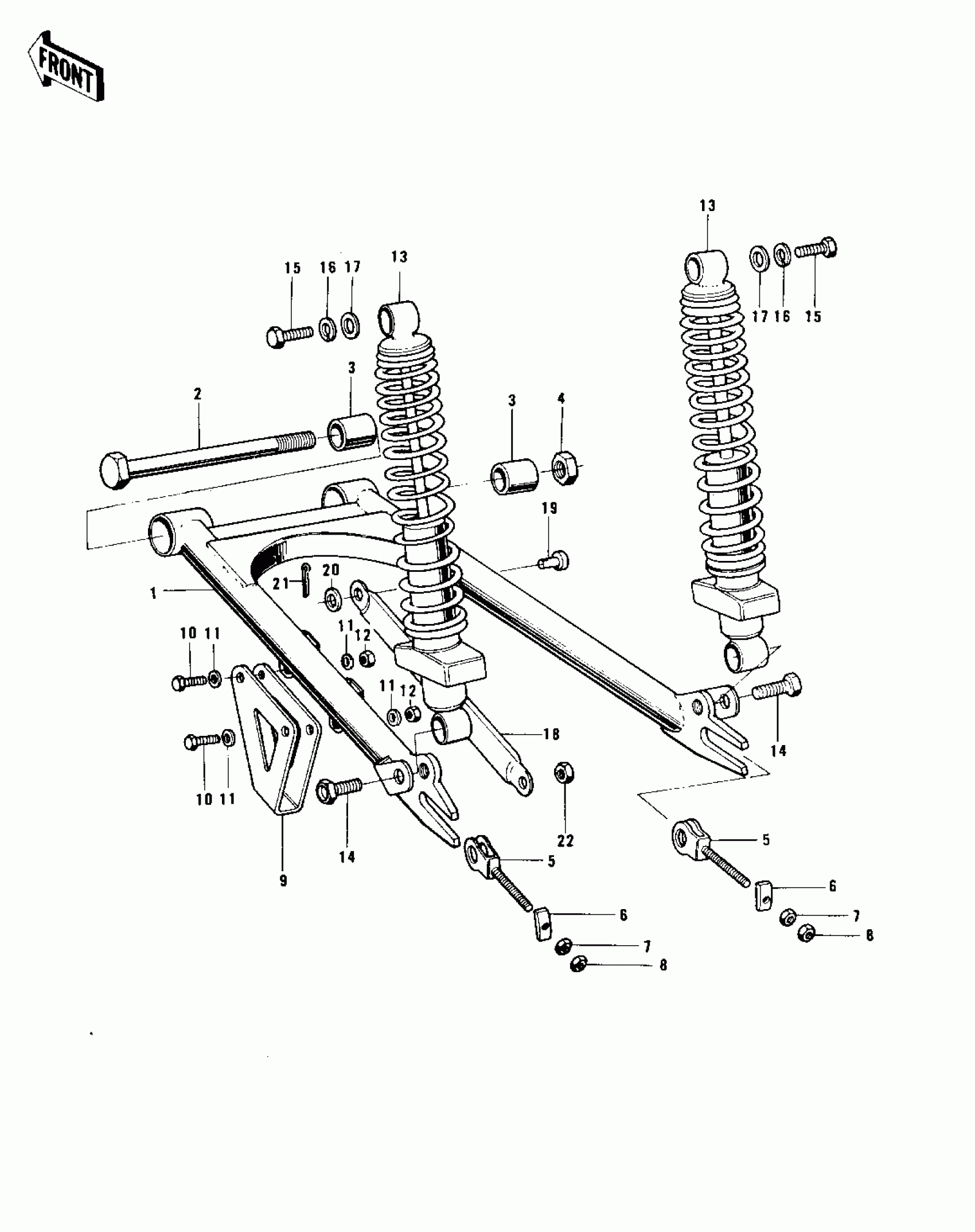

Kawasaki KX250-A3 SWING ARM/SHOCK ABSORBERS (KX250) Diagram

#

Description

Price

1

ARM,SWINGING

33001-064

Unavailable

2

SHAFT,SWING ARM PIVOT

33032-042

Unavailable

3

BUSHING,SWING ARM

33033-012

Unavailable

4

NUT,12MM

92019-017

Unavailable

5

ADJUSTER,CHAIN

33040-055

Unavailable

6

PLATE,CHAIN ADJUSTER

33041-002

Unavailable

7

NUT-HEX,8MM

311G0800

Unavailable

8

NUT,8MM

92019-018

Unavailable

9

GUARD,CHAIN

55020-015

Unavailable

10

BOLT,HEX HEAD,6X50

110G0650

Unavailable

11

WASHER,6.5X20X1.6

92022-125

Unavailable

12

NUT,6MM

92019-019

Unavailable

13

SHOCKABSORBER,REAR

45014-094

Unavailable

14

BOLT,HEX HEAD,12X35

92001-133

Unavailable

15

BOLT-UPSET,6X12

112G0612

Unavailable

16

WASHER SPRING 6MM

461F0600

Unavailable

17

WASHER,PLAIN,6MM

92022-286

Unavailable

18

TORQUE LINK,RR BRAKE

43007-040

Unavailable

19

PIN,TORQUE LINK

92043-105

Unavailable

20

WASHER,10.5X20X1

92022-239

Unavailable

21

PIN-COTTER,2.0X20

550D2020

Unavailable

22

NUT,10MM

92019-016

Unavailable
