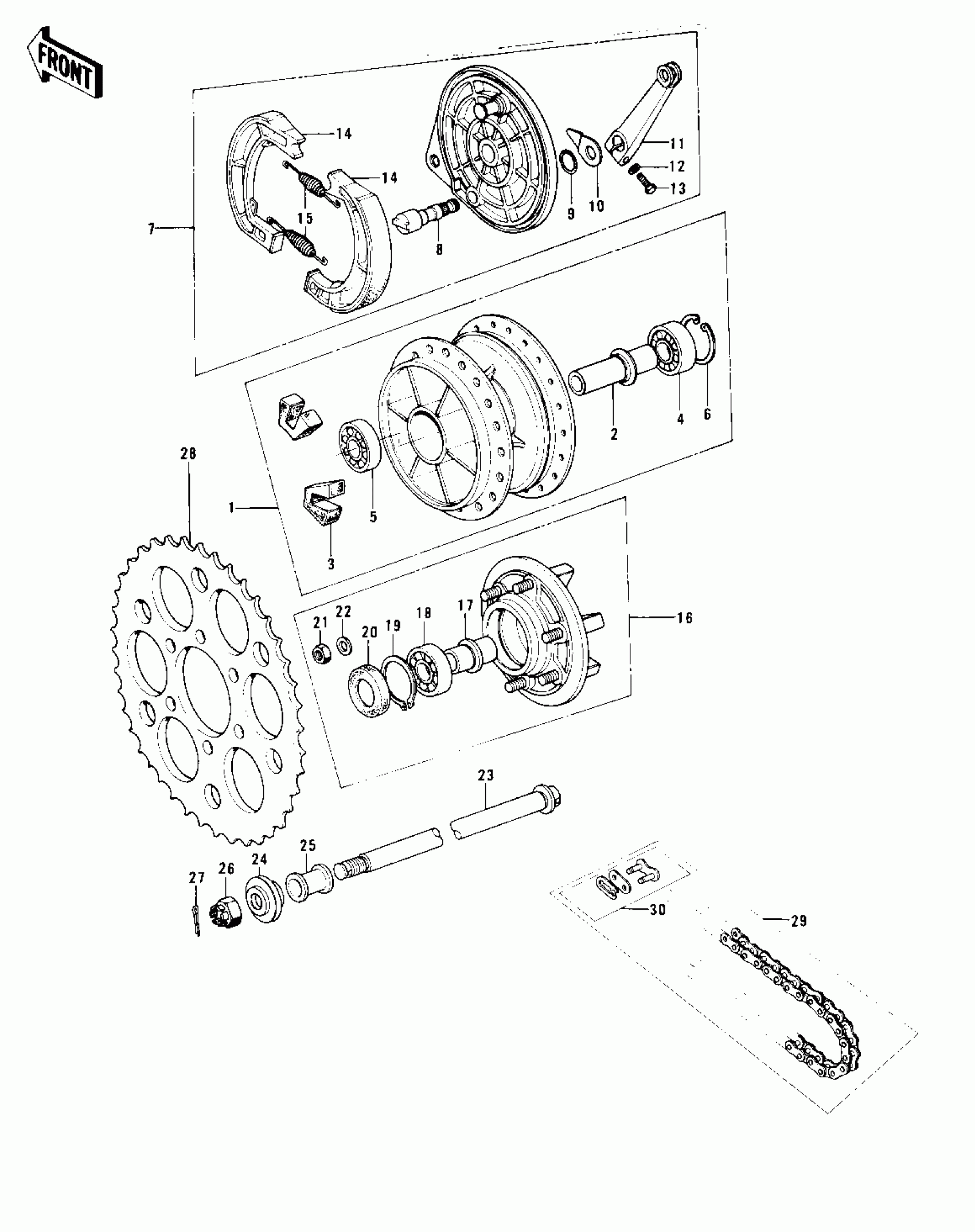

Kawasaki KX250-A3 REAR HUB/BRAKE/CHAIN (KX250-A/A3) Diagram
#
Description
Price
1
DRUM ASSY,RR BRK,BLK
42005-045-21
Unavailable
2
COLLAR,RR BRK DRUM
42010-028
Unavailable
3
DAMPER,REAR HUB SHOCK
42014-024
Unavailable
4
BEARING-BALL
601B6303U
Unavailable
5
BEARING-BALL,#6303C3
601B6303
Unavailable
6
RING-SNAP,47MM
92033-1042
Unavailable
7
PANEL ASSY, REAR BRAKE
42006-059-21
Unavailable
8
CAM SHAFT,RR BRK PNL
42026-016
Unavailable
9
SEAL,BRAKE CAM
41051-001
Unavailable
10
INDICATOR,FR BRK SHOE
41085-017
Unavailable
11
LEVER,REAR BRAKE CAM
42029-038
Unavailable
12
BOLT-UPSET
112G0625
Unavailable
13
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
14
SHOE,BRAKE
42019-011
Unavailable
15
SPRING,BRAKE SHOE
42020-004
Unavailable
16
COUPLING ASSY,RR BRK
42008-027
Unavailable
17
SLEEVE,COUPLING
42036-023
Unavailable
18
BEARING-BALL,#6205C3
601B6205
Unavailable
19
RING-SNAP,62MM
92033-1044
Unavailable
20
SEAL-OIL,TWC35527
92052-006
Unavailable
21
NUT,8MM
92019-018
Unavailable
22
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
23
AXLE,REAR
42031-051
Unavailable
24
COLLAR,REAR AXLE
42032-055
Unavailable
25
COLLAR,REAR AXLE
42032-056
Unavailable
26
NUT,16MM
92015-055
Unavailable
27
PIN-COTTER,4.0X35
550D4035
Unavailable
28
REAR SPROCKET 48T
42041-154
Unavailable
28
REAR SPROCKET 46T
42041-155
Unavailable
28
REAR SPROCKET 50T
42041-156
Unavailable
29
DR CHAIN 520X106
92057-097
Unavailable
30
92058-1051 (Canada)
92058-020
Unavailable
