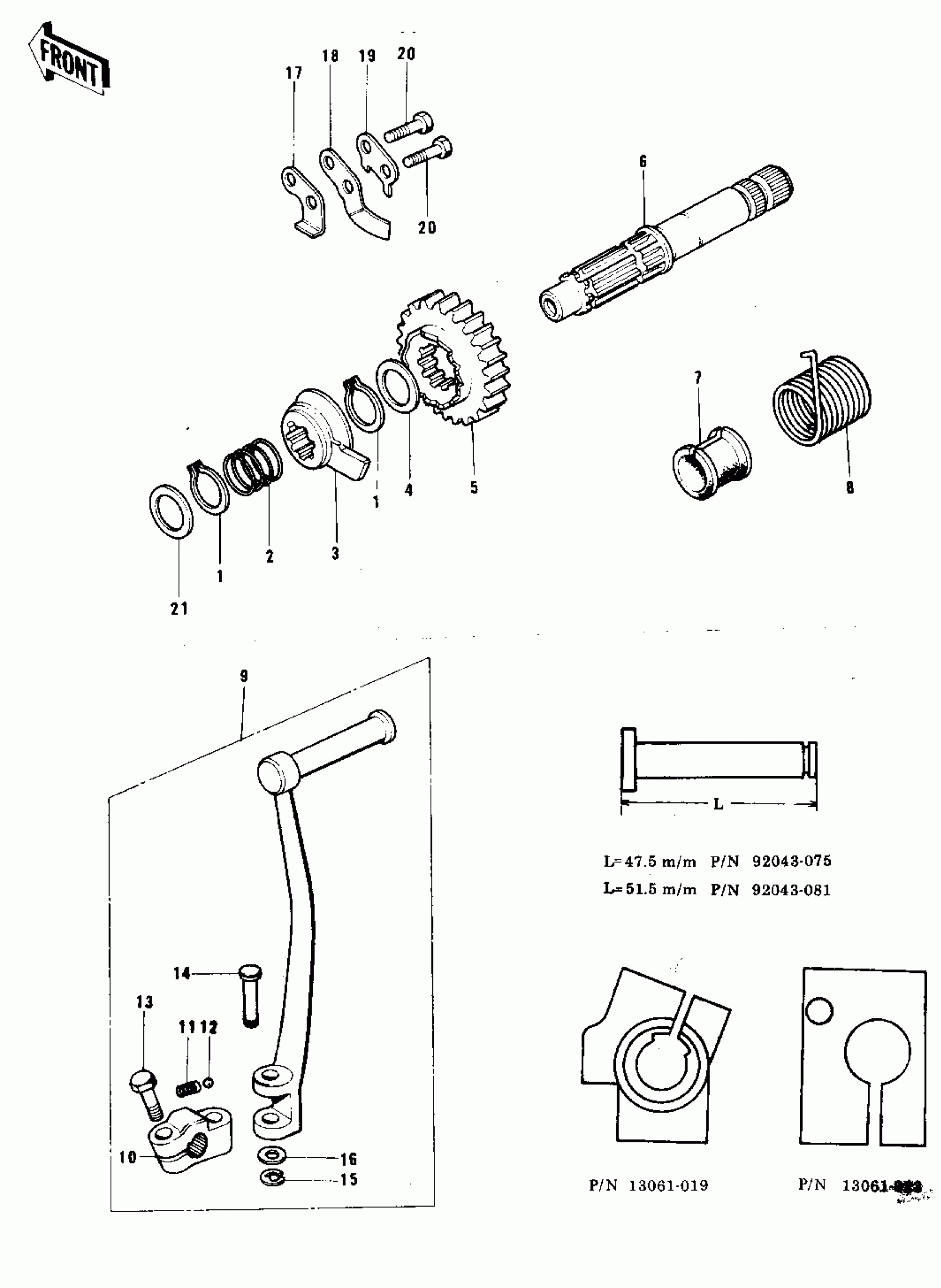

Kawasaki KX250-A3 KICKSTARTER MECHANISM (74-76) Diagram

#

Description

Price

1

RING-SNAP,24MM

92033-026

Unavailable

2

SPRING

92081-097

Unavailable

3

RATCHET

13078-007

Unavailable

4

WASHER,25.3X30X0.5

92022-159

Unavailable

5

GEAR-KICKSTARTER

13068-025

Unavailable

6

SHAFT,KICKSTARTER

13066-034

Unavailable

7

GUIDE,KICKSTARTER

13070-007

Unavailable

8

SPRING,KICKSTARTER

92082-003

Unavailable

9

PEDAL ASSY, KICK

13058-056

Unavailable

9

PEDAL ASSY, KICK

13058-056

Unavailable

10

BOSS,KICK PEDAL

13061-019

Unavailable

10

BOSS,KICK PEDAL

13061-023

Unavailable

11

SPRING,KICK PEDAL

92081-020

Unavailable

12

BALL-STEEL,1/4

600A0800

Unavailable

13

BOLT-SMALL-UPSET,8X30

115G0830

Unavailable

13

BOLT,HEX HEAD,8X30

92001-144

Unavailable

14

PIN-KICKSTARTER

92043-075

Unavailable

14

PIN-KICK PEDAL

92043-081

Unavailable

15

CIRCLIP 5MM

482K5000

Unavailable

16

WASHER PLAIN 8MM

410B0800

Unavailable

17

STOPPER,KICKSHAFT

13072-016

Unavailable

18

GUIDE,KICK STOPPER

13206-011

Unavailable

19

WASHER,KICKSTOP GUIDE

92031-010

Unavailable

20

BOLT-UPSET

112G0618

Unavailable

20

BOLT-UPSET

112G0618

Unavailable

21

WASHER,20.5X25.5X0.5

92022-252

Unavailable
