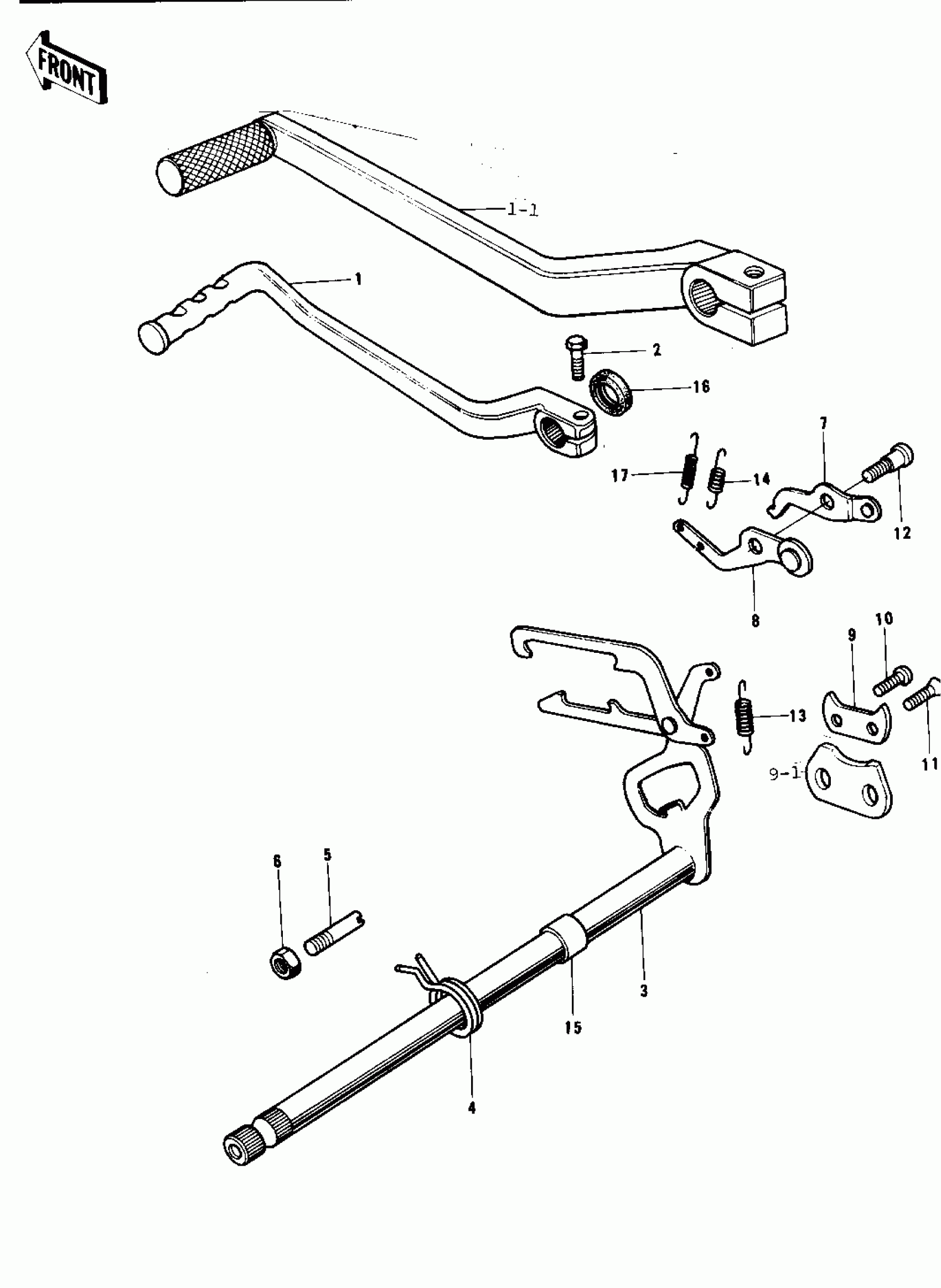

Kawasaki KX250-A3 GEAR CHANGE MECHANISM (74-76) Diagram

#

Description

Price

1

PEDAL,GEAR CHANGE

13156-055

Unavailable

1-1

PEDAL,GEAR CHANGE

13156-059

Unavailable

2

BOLT-UPSET,6X20

112G0620

Unavailable

2

BOLT-UPSET,6X20

112G0620

Unavailable

3

LEVER ASSY,GEAR CHANG

13161-033

Unavailable

4

SPRING,TENSION

92081-1129

Unavailable

5

BOLT,RETURN SPRING

92001-1401

Unavailable

6

NUT 8MM

312B0800

Unavailable

7

LEVER ASSY,GEAR CHANG

13236-006

Unavailable

8

LEVER ASSY,GEAR CHANG

13236-007

Unavailable

9

PLATE,CHANGE DRUM

13169-012

Unavailable

9-1

PLATE,CHANGE DRUM

13169-012

Unavailable

10

SCREW-PAN-CROS,6X14

220B0614

Unavailable

11

SCREW-CSK-CROS,6X14

221B0614

Unavailable

12

SCREW,6MM

92011-023

Unavailable

13

SPRING,CHANGE LEVER

92081-076

Unavailable

14

SPRING-COIL

92081-077

Unavailable

15

COLLAR

92027-189

Unavailable

16

SEAL-OIL,TB13225.5

92051-005

Unavailable

17

SPRING

92081-119

Unavailable
