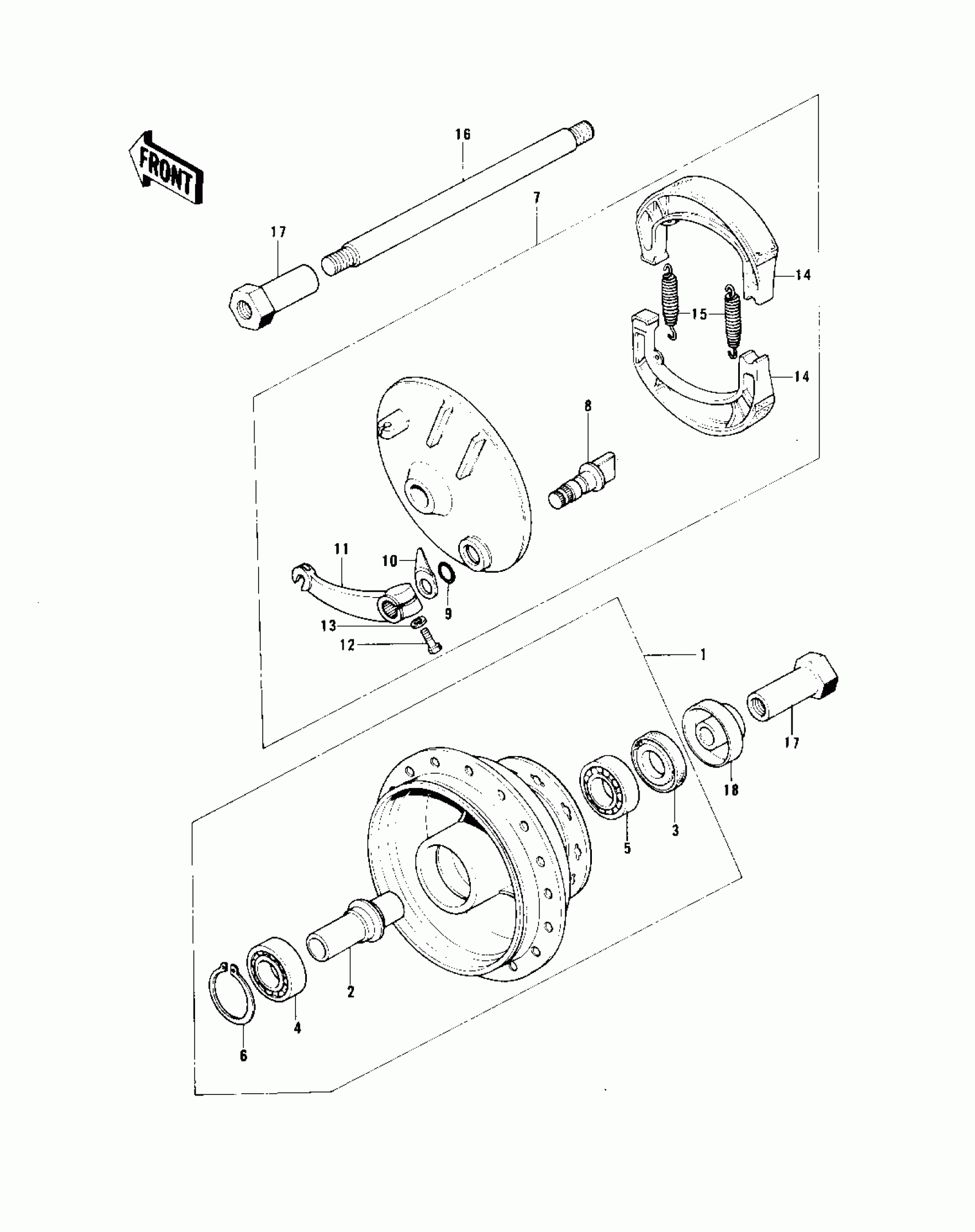

Kawasaki KX250-A3 FRONT HUB/BRAKE (KX250-A/A3) Diagram

#

Description

Price

1

DRUM-ASSY,FR BRK,F.BK

41034-039-21

Unavailable

2

COLLAR,FR BRK DRUM

41039-027

Unavailable

3

OIL SEAL,#22427

654A224207

Unavailable

4

BEARING,FRONT DRUM

92045-033

Unavailable

5

BEARING-BALL,#6302C3

601B6302

Unavailable

6

RING-SNAP,42MM

92033-1041

Unavailable

7

PANEL-ASY,FR BRK BLK

41035-065-21

Unavailable

8

CAM SHAFT,REAR BRAKE

42026-021

Unavailable

9

SEAL,BRAKE CAM

41051-001

Unavailable

10

INDICATOR,FR BRK SHOE

41085-017

Unavailable

11

LEVER,FRONT BRAKE CAM

41053-023

Unavailable

12

BOLT-UPSET

112G0625

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

14

SHOE-BRAKE

41048-1068

Unavailable

15

SPRING,BRAKE SHOE

42020-004

Unavailable

16

AXLE,FRONT

41068-048

Unavailable

17

COLLAR,FRONT AXLE

41069-031

Unavailable

18

COLLAR,FRONT AXLE

41069-030

Unavailable
