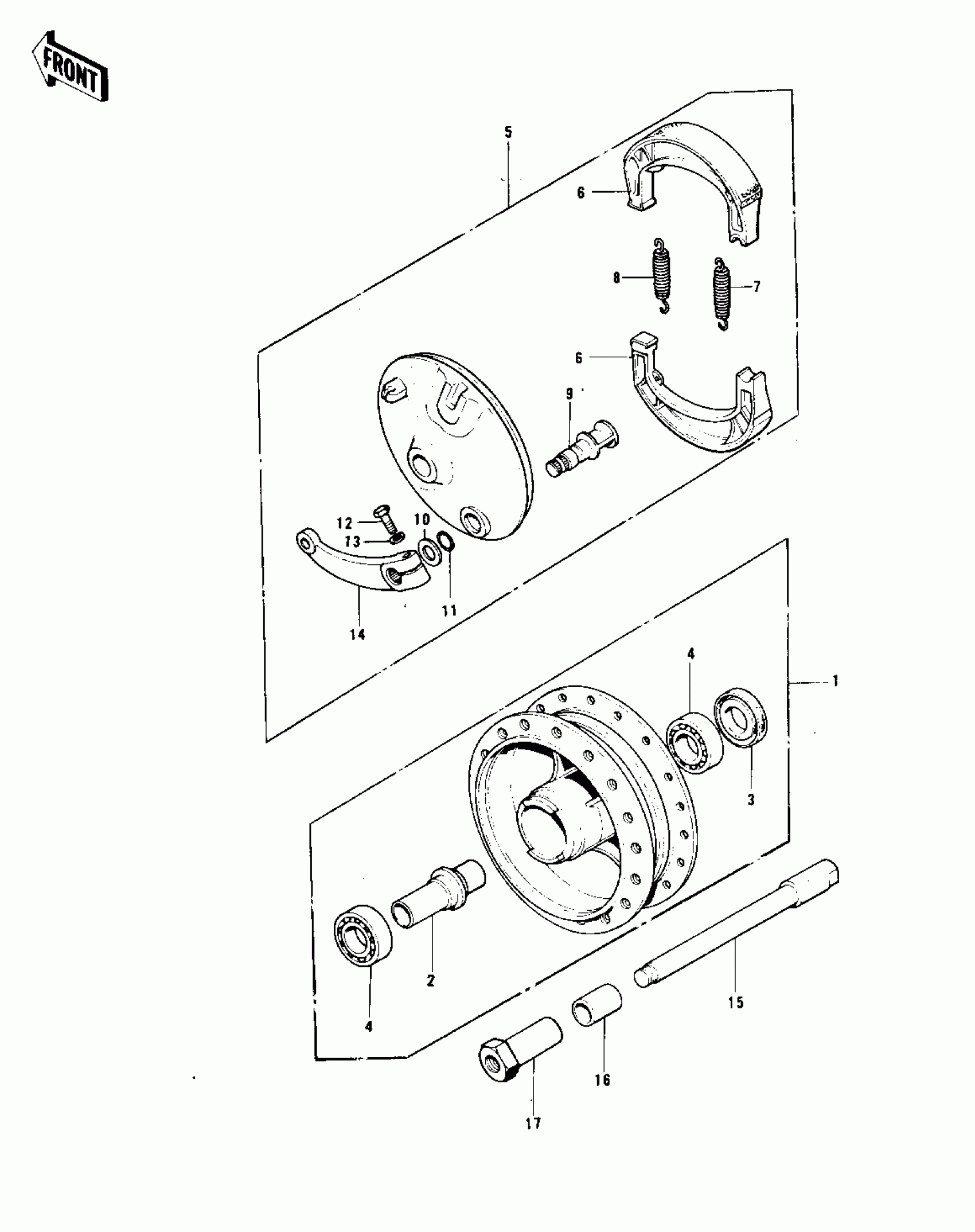

Kawasaki KX250-A3 FRONT HUB/BRAKE (KX250) Diagram

#

Description

Price

1

DRUM-ASSY,FR BRK

41034-036

Unavailable

2

COLLAR

41039-023

Unavailable

3

OIL SEAL,TB18376

654A18376

Unavailable

4

BEARING,BALL, #6201

92045-029

Unavailable

5

PANEL ASSY,FRNT BRAKE

41035-061

Unavailable

5

PANEL-ASY,FR BRK BLK

41035-063-21

Unavailable

6

SHOE,BRAKE

42019-010

Unavailable

6

SHOE,BRAKE

42019-010

Unavailable

7

SPRING,BRAKE SHOE

92081-1766

Unavailable

8

SPRING,BRAKE SHOE

42020-004

Unavailable

9

CAM SHAFT,FRONT BRAKE

41050-020

Unavailable

10

WASHER

92022-257

Unavailable

11

O RING,12MM

670B2012

Unavailable

12

BOLT 6X22

112B0622

Unavailable

12

BOLT 6X22

112B0622

Unavailable

13

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

14

LEVER,FRONT BRAKE CAM

41053-021

Unavailable

15

AXLE,FRONT

41068-044

Unavailable

15

AXLE,FRONT

41068-044

Unavailable

16

COLLAR,FRONT AXLE

41069-023

Unavailable

17

NUT,FRONT AXLE

41072-008

Unavailable
