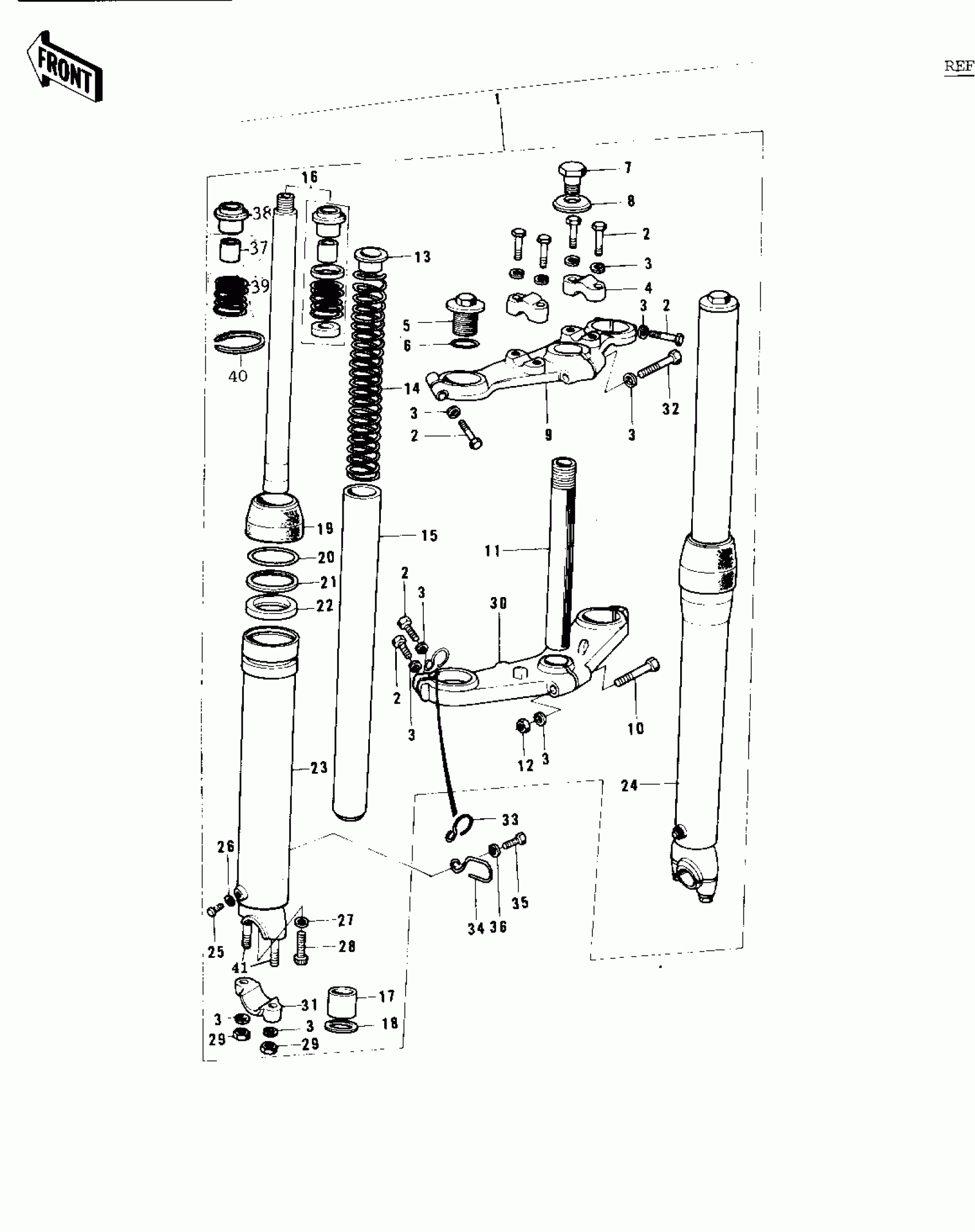

Kawasaki KX250-A3 FRONT FORK (KX250-A/A3) Diagram
#
1
FRONT FORK ASSY
44001-130
Unavailable
1
FORK-FRONT
44001-156
Unavailable
2
BOLT-STEERING STEM HD
44041-044
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER
46012-011
Unavailable
5
BOLT-FORK FITTING
44041-037
Unavailable
6
'O' RING FORK TOP
44046-015
Unavailable
7
BOLT,FORK TOP
44041-065
Unavailable
8
WASHER,FORK TOP BOLT
44043-055
Unavailable
9
HEAD,STEERING STEM
44039-062
Unavailable
10
BOLT,HEX HEAD
44041-066
Unavailable
11
SHAFT,STEERING STEM
44052-008
Unavailable
12
NUT,LOCK,8MM
92015-1124
Unavailable
13
GUIDE,FORK SPRING
44028-031
Unavailable
13
GUIDE,FORK SPRING
44028-033
Unavailable
14
SPRING,FORK
44026-052
Unavailable
14
SPRING,FORK INNER
44026-063
Unavailable
15
TUBE,FORK INNER
44013-046
Unavailable
16
CYLINDER-FORK
44022-017
Unavailable
17
PISTON,FORK
44018-008
Unavailable
18
CIRCLIP,FORK
44044-018
Unavailable
19
DUST SHIELD,FORK
44010-025
Unavailable
20
RING-SNAP,FORK OIL
92033-1100
Unavailable
21
WASHER-OIL SEAL FIT
44043-044
Unavailable
22
SEAL-OIL,FORK OUTER PIPE
92049-1216
Unavailable
23
TUBE,LH,FORK OUTER
44005-054
Unavailable
24
TUBE,RH,FORK OUTER
44006-052
Unavailable
25
SCREW
44041-062
Unavailable
26
GASKET
44045-045
Unavailable
27
GASKET
44045-057
Unavailable
28
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
29
NUT,8MM
311B0800
Unavailable
30
STEM,STEERING
44038-008
Unavailable
31
HOLDER,FRONT AXLE
44063-008
Unavailable
32
BOLT-STEERING STEM HD
44041-042
Unavailable
33
CLAMP,CABLE
92037-126
Unavailable
34
CLAMP,CABLE
92037-127
Unavailable
35
SCREW PAN HEAD 6X12
220B0612
Unavailable
36
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
37
SPACER-FORK SPRG GIDE
44028-022
Unavailable
38
GUIDE,FORK SPRING
44028-034
Unavailable
39
SPRING,FORK
44026-062
Unavailable
40
RING,FORK PISTON
44025-004
Unavailable
41
STUD,8X35
92004-1009
Unavailable
