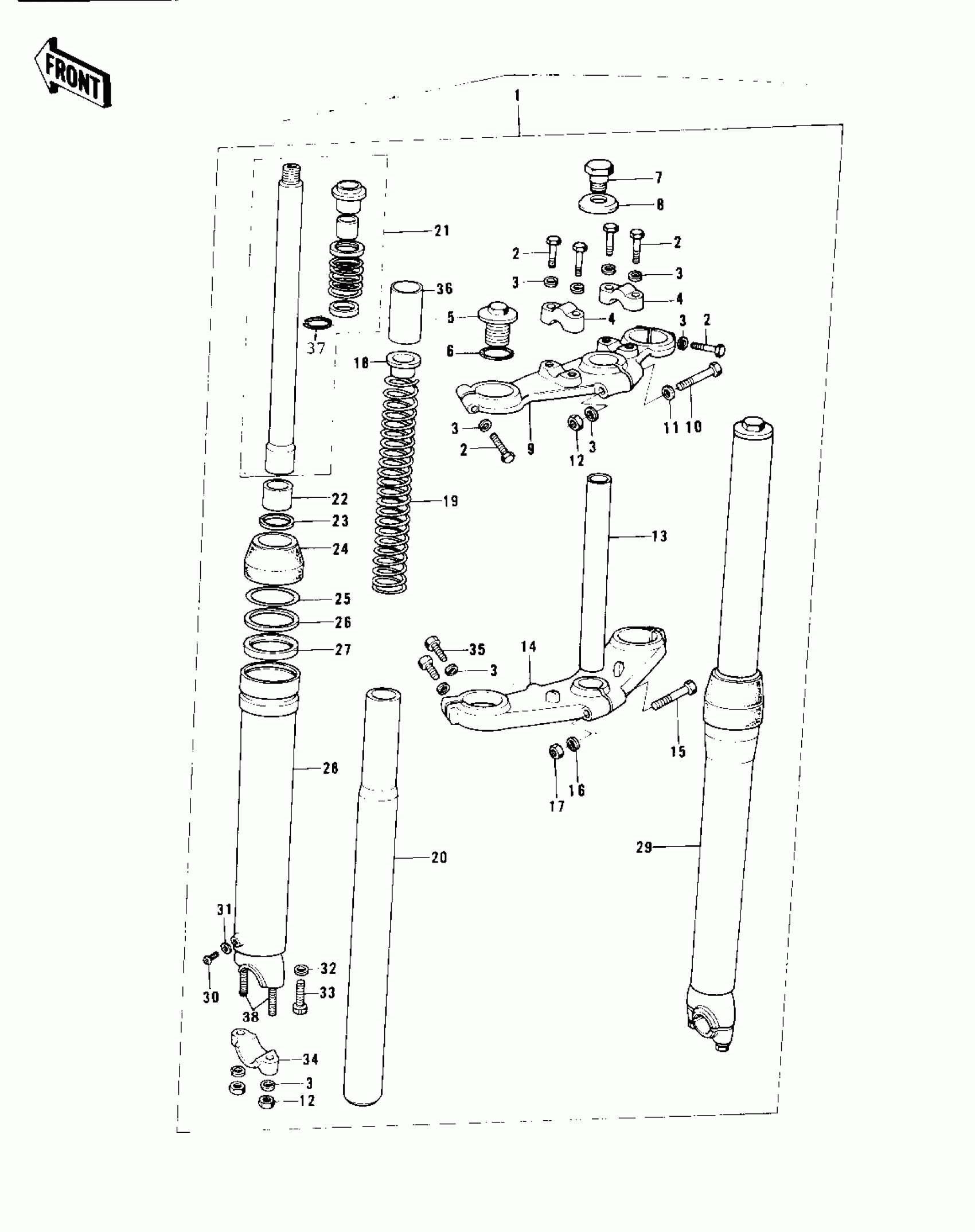

Kawasaki KX250-A3 FRONT FORK (KX250) Diagram
#
1
FORK-FRONT
44001-169
Unavailable
2
BOLT HEX HEAD
44041-004
Unavailable
3
WASHER SPRING 8MM
461F0800
Unavailable
4
HOLDER
46012-011
Unavailable
5
BOLT-FORK FITTING
44041-037
Unavailable
6
RING-O,FORK TOP
92055-1012
Unavailable
7
BOLT,FORK TOP
44041-065
Unavailable
8
WASHER,FORK TOP BOLT
44043-055
Unavailable
9
HEAD,STEERING STEM
44039-062
Unavailable
10
BOLT-STEERING STEM HD
44041-042
Unavailable
11
WASHER PLAIN 8MM
411B0800
Unavailable
12
NUT,8MM
311B0800
Unavailable
13
SHAFT,STEERING STEM
44052-008
Unavailable
14
STEM,STEERING
44038-008
Unavailable
15
BOLT,HEX HEAD
44041-066
Unavailable
16
WASHER SPRING 10MM
461F1000
Unavailable
17
NUT (10MM)
311B1000
Unavailable
18
GUIDE,FORK SPRING
44028-033
Unavailable
19
SPRING,FORK INNER
44026-066
Unavailable
20
TUBE,FORK INNER
44013-052
Unavailable
21
CYLINDER-FORK
44022-030
Unavailable
22
PISTON,FORK
44018-008
Unavailable
23
CIRCLIP,FORK
44044-018
Unavailable
23
CIRCLIP,FORK
44044-021
Unavailable
24
DUST SHEILD,FORK
44010-032
Unavailable
25
CIRCLIP-OIL SEAL FIT
44044-012
Unavailable
26
WASHER-OIL SEAL FIT
44043-044
Unavailable
27
SEAL-OIL,FORK OUTER PIPE
92049-1216
Unavailable
27
SEAL-OIL,FORK OUTER PIPE
92049-1216
Unavailable
28
TUBE,LH,FORK OUTER
44005-060
Unavailable
29
TUBE,RH,FORK OUTER
44006-058
Unavailable
30
SCREW PAN HEAD 4X8
220B0408
Unavailable
31
GASKET
44045-045
Unavailable
32
GASKET
44045-057
Unavailable
33
BOLT,SOCKET,FORK CYLINDER
44041-040
Unavailable
34
HOLDER-FRONT AXLE
44063-011
Unavailable
35
BOLT
44041-083
Unavailable
36
SPACER,FORK SPRING
44040-002
Unavailable
37
RING,FORK PISTON
44025-004
Unavailable
38
STUD,8X35
92004-1009
Unavailable
