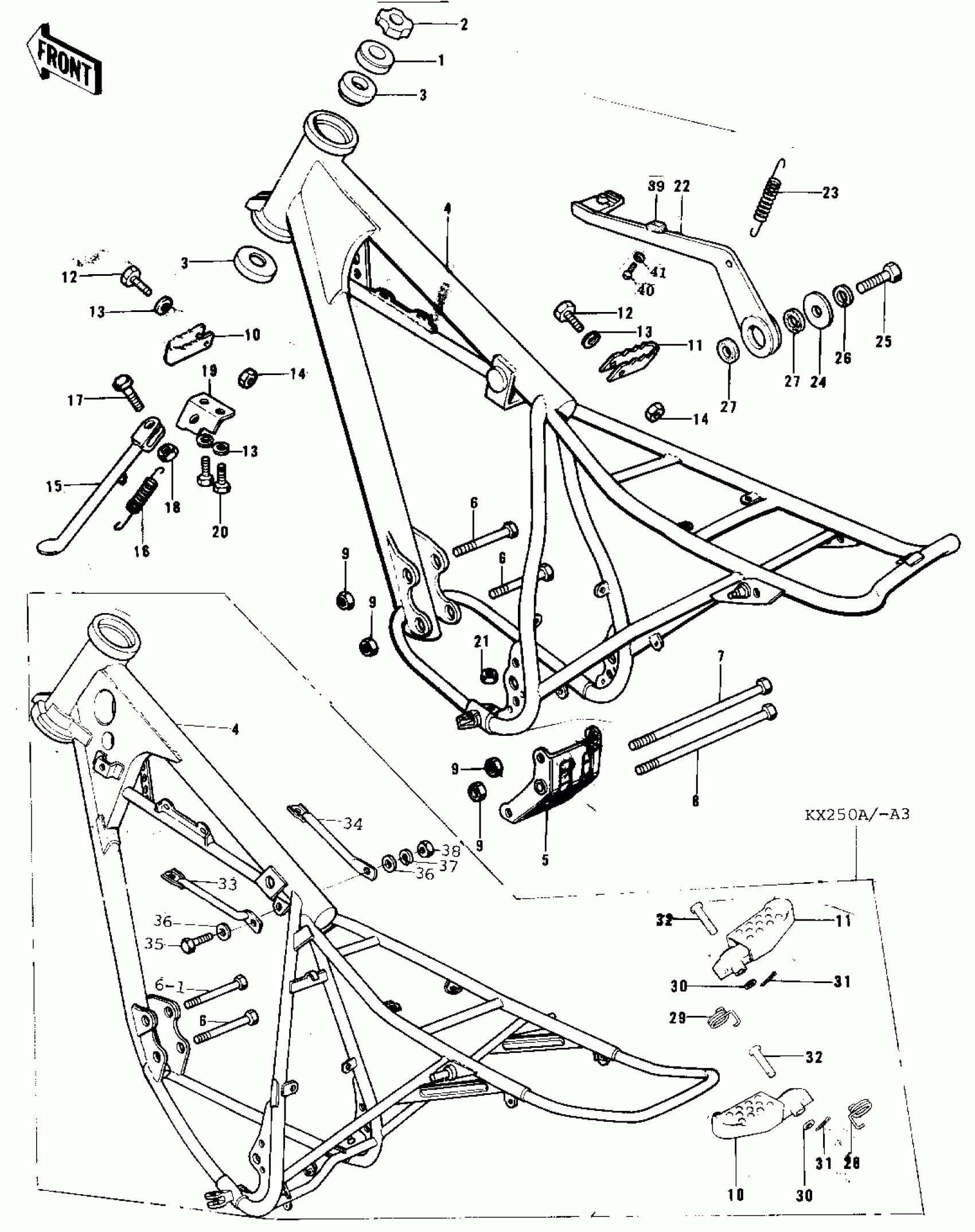

Kawasaki KX250-A3 FRAME/FRAME FITTINGS (74-76) Diagram
#
1
CAP,STEERING STEM
46098-015
Unavailable
2
NUT,25MM,T=12
92015-1546
Unavailable
3
RACE,ROLLER,32005JR RS
92047-017
Unavailable
4
FRAME
32002-083
Unavailable
4
FRAME
32002-120
Unavailable
5
BRACKET,ENGINE BASE
32117-005
Unavailable
6
BOLT,HEX HEAD,10X65
92001-1255
Unavailable
6-1
BOLT,FLANGED,10X70
92001-1618
Unavailable
7
BOLT,FLANGED,10X110
92001-1602
Unavailable
8
BOLT,FLANGED,10X115
92001-1603
Unavailable
9
NUT,10MM
92019-016
Unavailable
10
BAR,L.H FOOTREST
34028-017
Unavailable
10
BAR,FOOTREST,L.H
34028-025
Unavailable
11
BAR,R.H FOOTREST
34028-018
Unavailable
11
BAR,FOOTREST,R.H
34028-026
Unavailable
12
BOLT-SMALL-UPSET
115B0832
Unavailable
13
WASHER SPRING 8MM
461F0800
Unavailable
14
NUT,8MM
92019-018
Unavailable
15
STAND-SIDE
34024-045
Unavailable
16
SPRING-SIDE STAND
34025-004
Unavailable
16
SPRING,STAND
34025-008
Unavailable
17
BOLT,10X28
113G1028
Unavailable
18
NUT-HEX-FINE,10MM
315B1000
Unavailable
19
BRACKET,SIDE STAND
34008-009
Unavailable
19
BRACKET,SIDE STAND
34008-009
Unavailable
20
BOLT,8X20
115G0820
Unavailable
20
BOLT,8X20
115G0820
Unavailable
20
BOLT-SMALL-UPSET,8X22
115B0822
Unavailable
21
NUT 8MM
312B0800
Unavailable
22
PEDAL,BRAKE
43077-005
Unavailable
22
PEDAL,BRAKE
43077-005
Unavailable
23
SPRING,BRAKE PEDAL
43005-026
Unavailable
23
SPRING,BRAKE PEDAL
43005-035
Unavailable
24
WASHER,PLAIN,6MM
92022-284
Unavailable
25
BOLT-UPSET 6X14
112B0614
Unavailable
25
BOLT-UPSET 6X14
112B0614
Unavailable
26
WASHER SPRING 6MM
461F0600
Unavailable
27
O RING,16MM
670B2016
Unavailable
28
SPRING,L.H,FOOTREST
92081-1254
Unavailable
29
SPRING,R.H,FOOTREST
92081-1255
Unavailable
30
WASHER PLAIN 8MM
410B0800
Unavailable
31
PIN-COTTER,2.5X15
550D2515
Unavailable
32
PIN,8X35.5
92043-115
Unavailable
33
PLATE,L.H,ENGINE
32030-057
Unavailable
34
PLATE,RH ENGINE
32030-058
Unavailable
35
BOLT,10X28
113G1028
Unavailable
36
WASHER-PLAIN,10MM
411B1000
Unavailable
37
WASHER SPRING 10MM
461F1000
Unavailable
38
NUT-HEX-FINE,10MM
314B1000
Unavailable
38
NUT-HEX-FINE,10MM
314B1000
Unavailable
39
DAMPER RUBBER BRK PED
92075-267
Unavailable
40
SCREW PAN HEAD 5X10
220B0510
Unavailable
41
WASHER SPRING 5MM
461F0500
Unavailable
