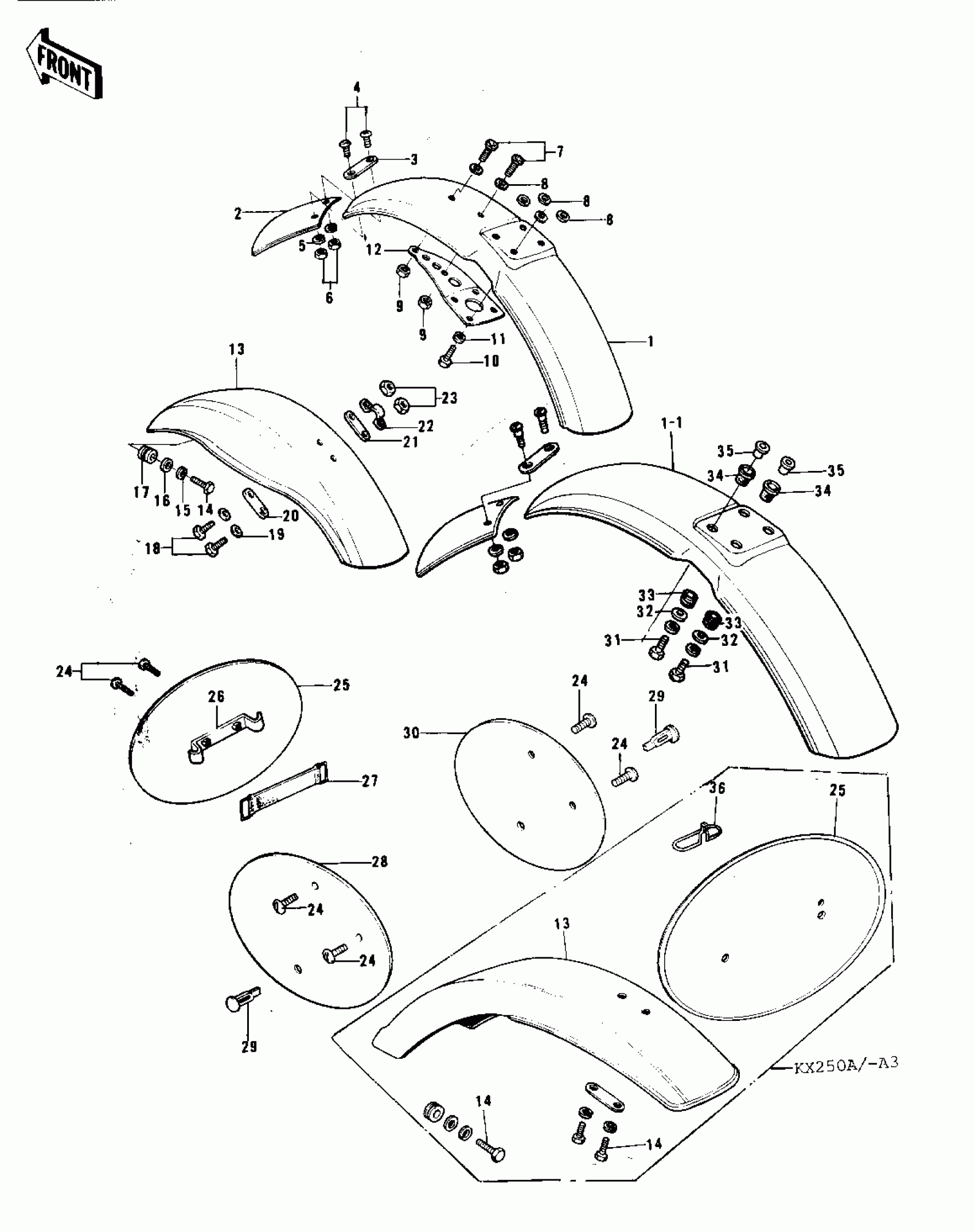

Kawasaki KX250-A3 FENDERS/NUMBER PLATES (74-76) Diagram
#
1
FENDER-FR
35004-096
Unavailable
1-1
FENDER-FR
35004-096
Unavailable
1-1
FENDER-FR,BLACK
35004-096-10
Unavailable
2
FLAP,FRONT FENDER
35019-005
Unavailable
3
PLATE,FENDER FLAP
35020-012
Unavailable
4
BOLT,5X12
92001-134
Unavailable
5
WASHER SPRING 5MM
461F0500
Unavailable
6
NUT-HEX
311B0500
Unavailable
7
SCREW PAN HEAD 6X14
220E0614
Unavailable
8
WASHER,6.5X20X1.6
92022-125
Unavailable
9
NUT,6MM
92019-019
Unavailable
10
BOLT-UPSET,6X16
112G0616
Unavailable
11
WASHER SPRING 6MM
461F0600
Unavailable
12
BRACKET,FRONT FENDER
35013-013
Unavailable
13
FENDER-RR
35022-104
Unavailable
13
FENDER-RR,BLACK
35022-132-10
Unavailable
13
FENDER-RR,BLACK
35022-132-10
Unavailable
14
BOLT-UPSET 6X14
112B0614
Unavailable
14
BOLT-UPSET,6X20
112G0620
Unavailable
15
WASHER SPRING 6MM
461F0600
Unavailable
16
COLLAR
92027-122
Unavailable
17
DAMPER RUBBER
92075-118
Unavailable
18
BOLT-UPSET
112G0618
Unavailable
18
BOLT 6X22
112B0622
Unavailable
19
WASHER PLAIN 6MM
411B0600
Unavailable
20
PLATE,REAR FENDER
35041-002
Unavailable
21
DAMPER RUBBER,FENDER
92075-245
Unavailable
22
BRACKET,REAR FENDER
35025-027
Unavailable
23
NUT,6MM
92019-019
Unavailable
24
SCREW,6X10,WHITE
92009-1286
Unavailable
25
PLATE,FRONT NUMBER
58029-026
Unavailable
25
PLATE,FRONT NUMBER
58029-031
Unavailable
26
BRACKET,NUMBER PLATE
58030-008
Unavailable
27
BAND,L=142.1
92072-006
Unavailable
28
PLATE,L.H NUMBER
58029-029
Unavailable
29
BAND,SIDE COVER
92072-069
Unavailable
29
BAND,SIDE COVER
92072-069
Unavailable
30
UNAVAILABLE IN PRICE BOOK
36077-045
Unavailable
31
BOLT-UPSET
112G0625
Unavailable
31
BOLT-UPSET
112G0625
Unavailable
32
WASHER,7X24X1.6
92022-228
Unavailable
33
DAMPER,FENDER
92075-121
Unavailable
34
DAMPER RUBBER
92075-103
Unavailable
35
COLLAR
92027-194
Unavailable
36
CLAMP,NUMBER PLATE
92037-158
Unavailable
