1976 Kawasaki KX250-A3 Engine Covers Diagram

← All diagrams

Find the part on the Engine Covers diagram for your 1976 Kawasaki KX250-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

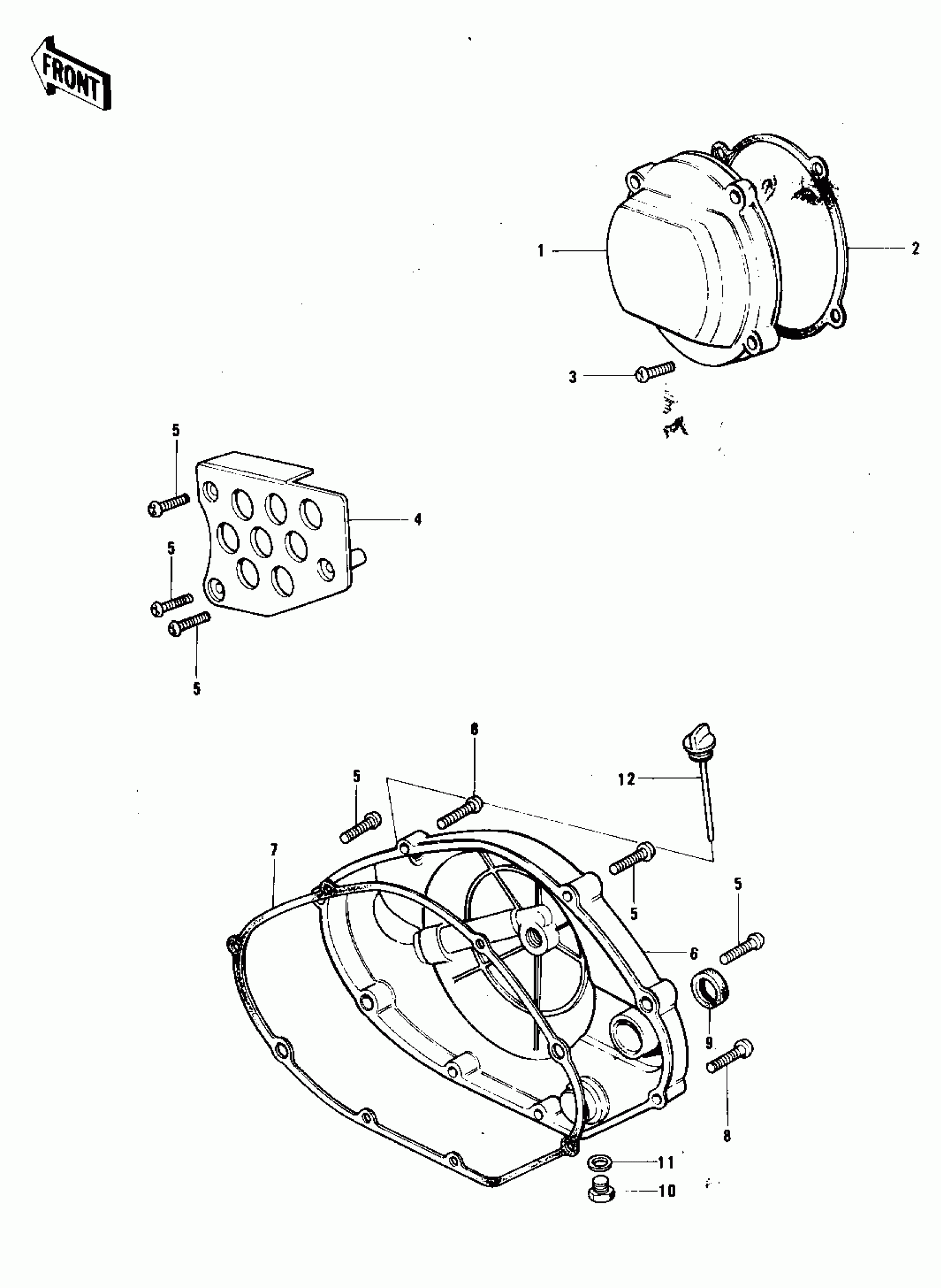

1976 Kawasaki KX250-A3 Engine Covers Diagram

#

Description
Price
Status
Order Qty

1

COVER,L.H ENGINE,BLK

14031-075-21

Out of stock

2

GASKET,L.H ENG COVER

14045-018

Out of stock

3

SCREW PAN HEAD 6X25

220B0625

Out of stock

4

COVER,FRONT CHAIN,BLK

14026-021-21

Out of stock

5

$1.44

In stock

6

COVER,R.H ENG,F.BLACK

14032-1009-21

Out of stock

7

GASKET,R.H ENG COVER

14046-030

Out of stock

8

$1.54

In stock

9

SEAL-OIL,SB20285

92049-012

Out of stock

10

PLUG,DRAIN,10X12

92067-001

$3.50

In stock

11

GASKET,10.5X16X1

92065-058

$3.16

In stock

12

PLUG,OI FILLER

16115-024

Out of stock
