1976 Kawasaki KX250-A3 Crankcase Diagram

← All diagrams

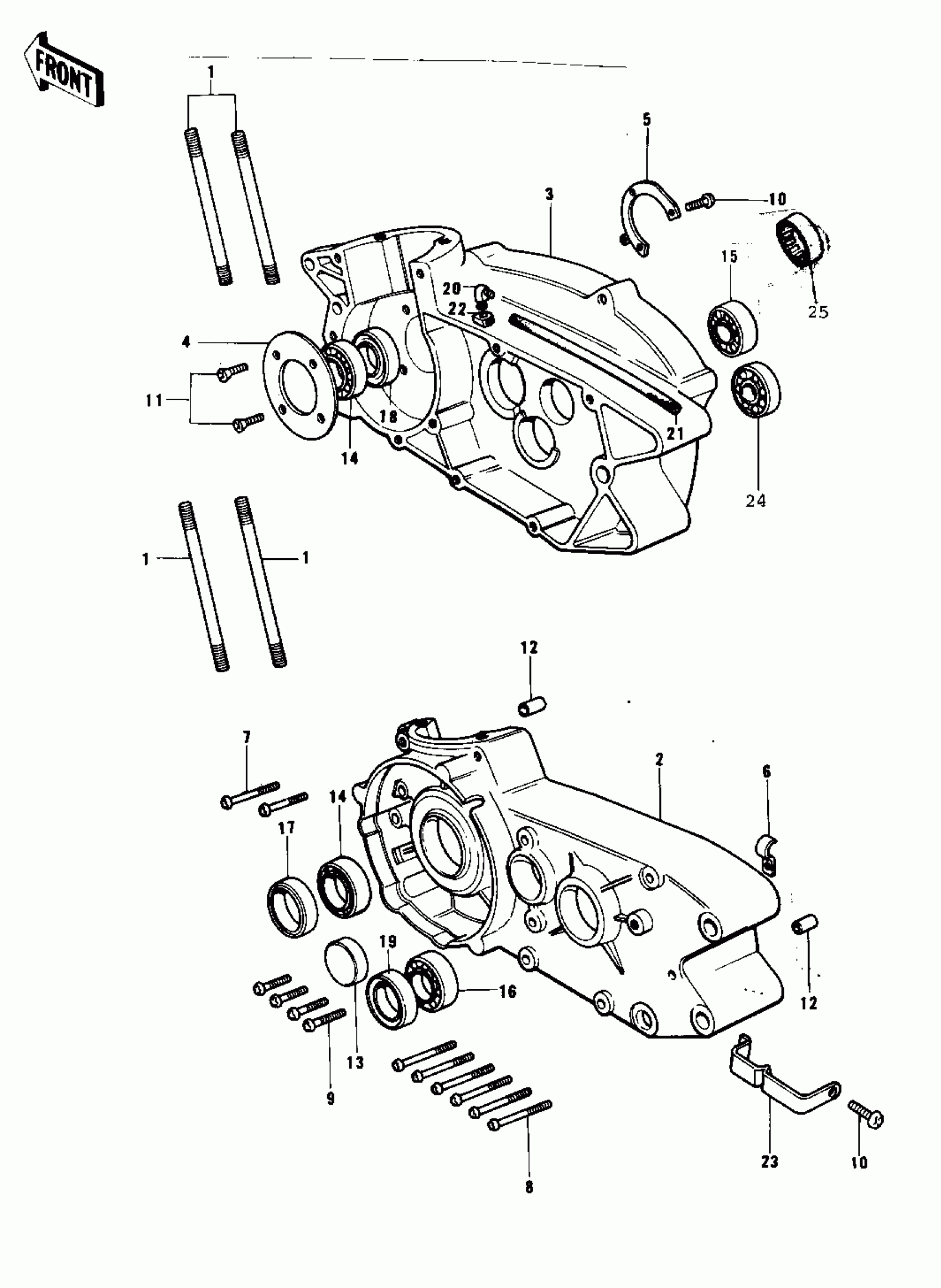

Find the part on the Crankcase diagram for your 1976 Kawasaki KX250-A3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1976 Kawasaki KX250-A3 Crankcase Diagram

#

Description
Price
Status
Order Qty

1

STUD,10X25

172G1025

Out of stock

2

CRANKCASE,L.H

14002-105

Out of stock

3

CRANKCASE,R.H

14003-076

Out of stock

4

HOLDER,CRANK BEARING

14014-030

Out of stock

5

HOLDER,CRANK BEARING

14014-031

Out of stock

6

CLAMP CABLE

92037-016

Out of stock

7

SCREW PAN HEAD 6X70

220B0670

Out of stock

8

SCREW PAN HEAD 6X65

220B0665

Out of stock

9

$1.54

In stock

10

$1.32

In stock

11

SCREW-CSK-CROS,6X14

221B0614

Out of stock

12

PIN,DOWEL,10X14

92043-1037

$0.76

In stock

13

CAP,CRANKCASE HOLE

92073-025

Out of stock

14

BEARING,BALL,#6305

92045-030

$37.96

In stock

15

$10.76

In stock

16

$15.38

In stock

17

OIL SEAL,TB25457

653B254507

Out of stock

18

OIL SEAL TB32457

653B324507

$13.85

In stock

19

SEAL-OIL,TB3040

92050-033

Out of stock

20

BREATHER ASSY

14069-1001

$22.77

In stock

21

TUBE,6X9X750

92059-1372

$14.65

In stock

22

GROMMET,BREATHER

92071-042

$3.39

In stock

23

$7.03

In stock

24

$26.08

In stock

25

BEARING,NEEDLE,344012

92046-040

Out of stock
Crankshaft/piston →
