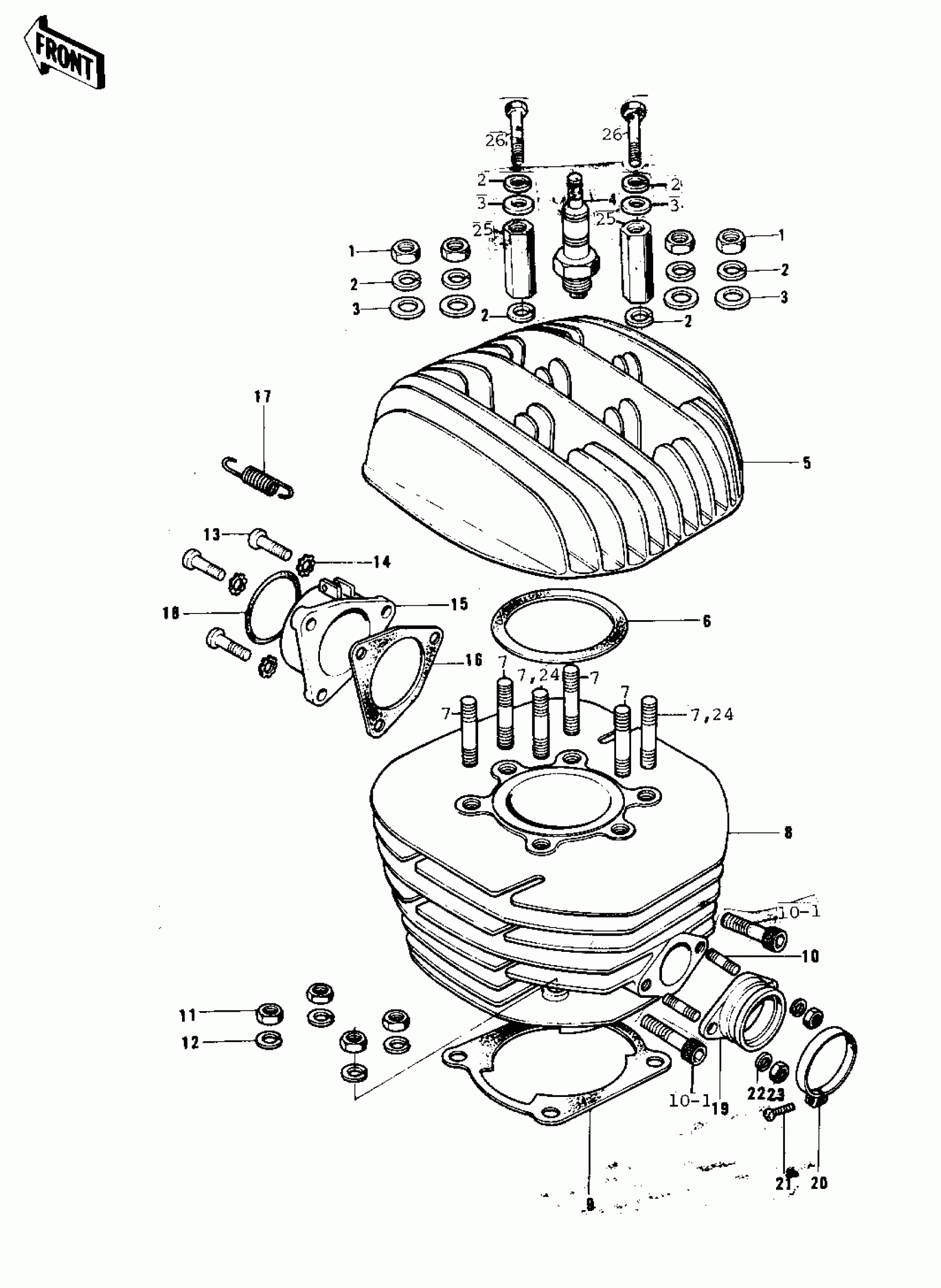

Kawasaki KX250-A3 CYLINDER HEAD/CYLINDER (74-76) Diagram
#
Description
Price
1
NUT,8MM
311B0800
Unavailable
1
NUT,8MM
311B0800
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
2
WASHER SPRING 8MM
461F0800
Unavailable
3
WASHER PLAIN 8MM
410B0800
Unavailable
3
WASHER PLAIN 8MM
411B0800
Unavailable
4
Roadster Spyder RT-LTD (SE6), Cognac | North America
B9EV
Unavailable
5
CYLINDER HEAD,T.BLACK
11001-095-21
Unavailable
6
GASKET,CYLINDER HEAD
11004-065
Unavailable
7
STUD 8X40
172G0840
Unavailable
8
CYLINDER,F.BLACK
11005-121-21
Unavailable
8
ELEX CYLINDER,F.BLACK
11005-149-21
Unavailable
9
GASKET,CYLINDER BASE
11009-038
Unavailable
10
STUD,8X12
172G0812
Unavailable
10-1
BOLT-SOCKET,8X16
120P0816
Unavailable
11
NUT,10MM
317B1000
Unavailable
12
WASHER SPRING 10MM
461F1000
Unavailable
13
SCREW PAN HEAD 6X25
220B0625
Unavailable
14
WASHER LOCK 6MM
464H0600
Unavailable
15
HOLDER,EXHAUST PIPE
18062-008
Unavailable
16
GASKET,EXHAUST HOLDER
18050-006
Unavailable
16
GASKET,EXHAUST PIPE
18050-010
Unavailable
17
SPRING-CONNECTOR
18071-003
Unavailable
18
Not Available As Spare Part - Friction Washer
Unavailable
19
HOLDER,CARBURETOR
16065-021
Unavailable
20
CLAMP,CARBURETOR HLDR
92037-116
Unavailable
21
SCREW-PAN-CROS
220B0535
Unavailable
22
WASHER SPRING 8MM
461F0800
Unavailable
23
NUT-HEX-SMALL,8MM
318B0800
Unavailable
24
STUD,8MM
92004-060
Unavailable
25
NUT,CYLINDER HEAD 8MM
92016-058
Unavailable
26
BOLT,8X20
115G0820
Unavailable
