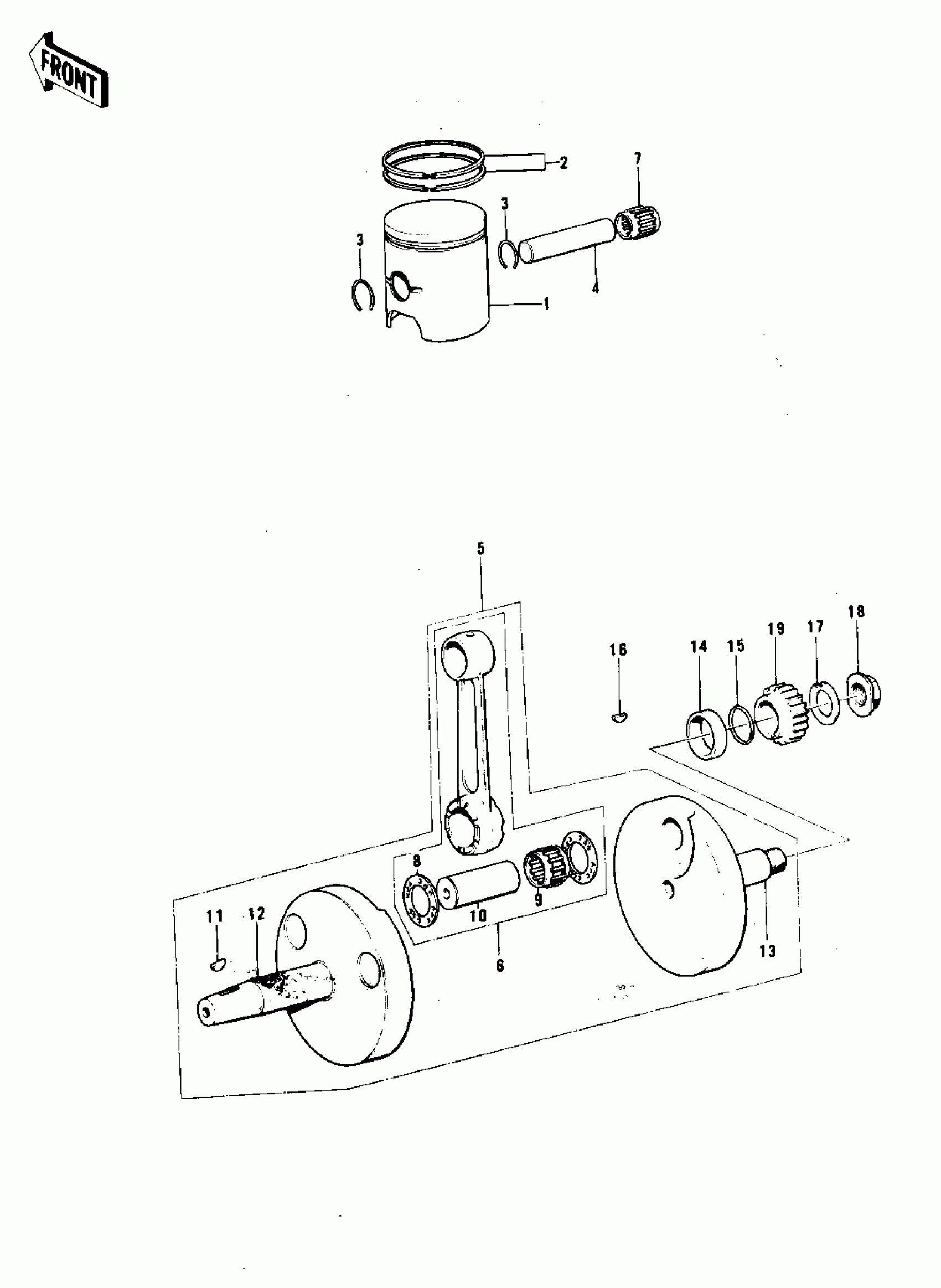

Kawasaki KX250-A3 CRANKSHAFT/PISTON (74-76) Diagram
#
Description
Price
1
PISTON,STD
13001-070
Unavailable
1
PISTON,STD
13001-075
Unavailable
1
PISTON,0.020' O/S
13029-069
Unavailable
2
RING SET,STD
13008-051
Unavailable
2
RING SET,STD
13008-056
Unavailable
2
RING SET,0.020'O/S
13025-055
Unavailable
3
CIRCLIP-PISTON PIN
92036-015
Unavailable
4
PIN-PISTON
13002-017
Unavailable
4
PIN-PISTON
13002-017
Unavailable
5
CRANK&CONROD ASSY
13036-046
Unavailable
6
CONNECTING ROD SET
13044-037
Unavailable
6
CONNECTING ROD SET
13044-037
Unavailable
7
BEARING-SMALL END
13033-1010
Unavailable
7
BEARING-SMALL END
13033-1010
Unavailable
8
SPACER
92026-1241
Unavailable
9
BEARING,BIG END NEEDL
13034-049
Unavailable
9
BEARING,BIG END NEEDL
13034-049
Unavailable
10
PIN,CRANK
13035-034
Unavailable
11
KEY,WOODRUFF
92038-001
Unavailable
12
CRANKSHAFT,L.H
13037-060
Unavailable
12
CRANKSHAFT,L.H
13037-070
Unavailable
13
CRANKSHAFT,R.H
13038-055
Unavailable
13
CRANKSHAFT,R.H
13038-058
Unavailable
14
COLLAR,CRANKSHAFT
92027-212
Unavailable
15
O RING,20MM
670B2020
Unavailable
16
WOODRUFF KEY
510A5100
Unavailable
17
WASHER,LOCK
92024-061
Unavailable
18
NUT,CRANKSHAFT
92015-069
Unavailable
19
GEAR,PRIMARY 22T
13121-029
Unavailable
