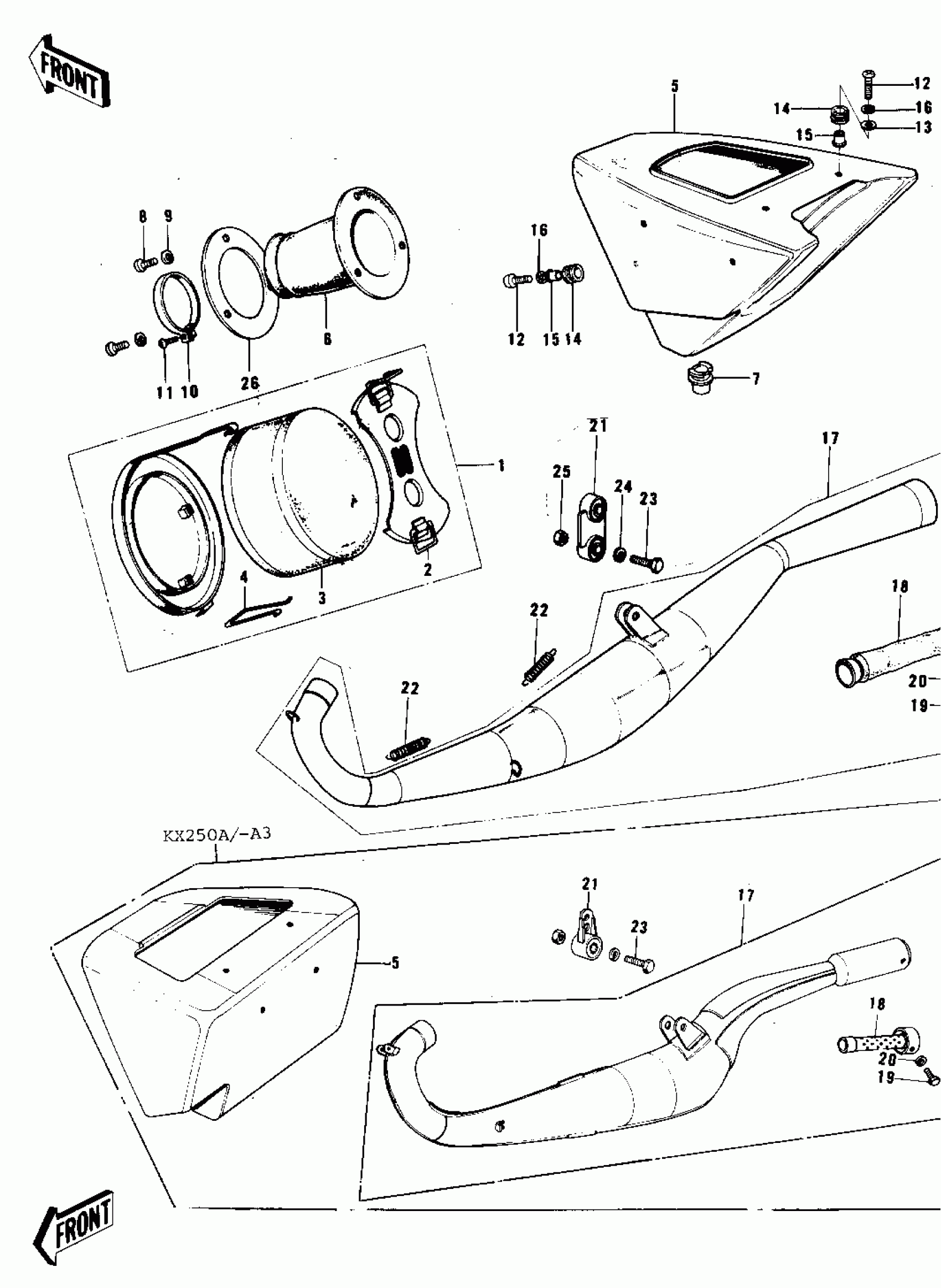

Kawasaki KX250-A3 AIR CLEANER/MUFFLER (74-76) Diagram
#
Description
Price
1
AIR CLEANER ASSY
11010-073
Unavailable
2
CAP,AIR CLEANER
11012-040
Unavailable
3
ELEMENT,AIR,CLNR
11013-043
Unavailable
4
FASTNER,AIR CLEANER
92079-007
Unavailable
5
BODY,AIR CLEANER
11011-033
Unavailable
5
BODY,AIR CLEANER
11011-047
Unavailable
6
PIPE,AIR INLET
11015-039
Unavailable
7
PLUG,AIR CLEANER BODY
92067-019
Unavailable
8
SCREW-PAN-CROS,6X16
220B0616
Unavailable
9
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
10
CLAMP
92037-115
Unavailable
11
SCREW PAN HEAD 6X35
220B0635
Unavailable
12
SCREW-PAN-CROS,6X20,WHITE
220B0620
Unavailable
13
WASHER,6.5X20X1.6
92022-125
Unavailable
14
DAMPER RUBBER
92075-076
Unavailable
15
COLLAR
92027-194
Unavailable
16
WASHER SPRING 6MM
461F0600
Unavailable
17
MUFFLER ASSY
18002-112
Unavailable
17
MUFFLER ASSY,F.BLACK
18001-156-21
Unavailable
18
BAFFLE TUBE
18033-080
Unavailable
18
BAFFLE TUBE
18033-092
Unavailable
19
BOLT-UPSET,6X12
112G0612
Unavailable
19
BOLT,6X10
112G0610
Unavailable
19
BOLT-UPSET,6X12
112G0612
Unavailable
20
WASHER LOCK 6MM
464H0600
Unavailable
20
WASHER SPRING 6MM
461F0600
Unavailable
21
BRACKET,MUFFLER
18024-022
Unavailable
21
BRACKET,MUFFLER
18024-026
Unavailable
22
SPRING,MUFFLER
18071-006
Unavailable
23
BOLT HEX HEAD 8X35
110N0835
Unavailable
23
BOLT,8X40
110N0840
Unavailable
24
WASHER SPRING 8MM
461F0800
Unavailable
25
NUT,8MM
92019-018
Unavailable
26
HOLDER,AIR CLEANER
92095-013
Unavailable
