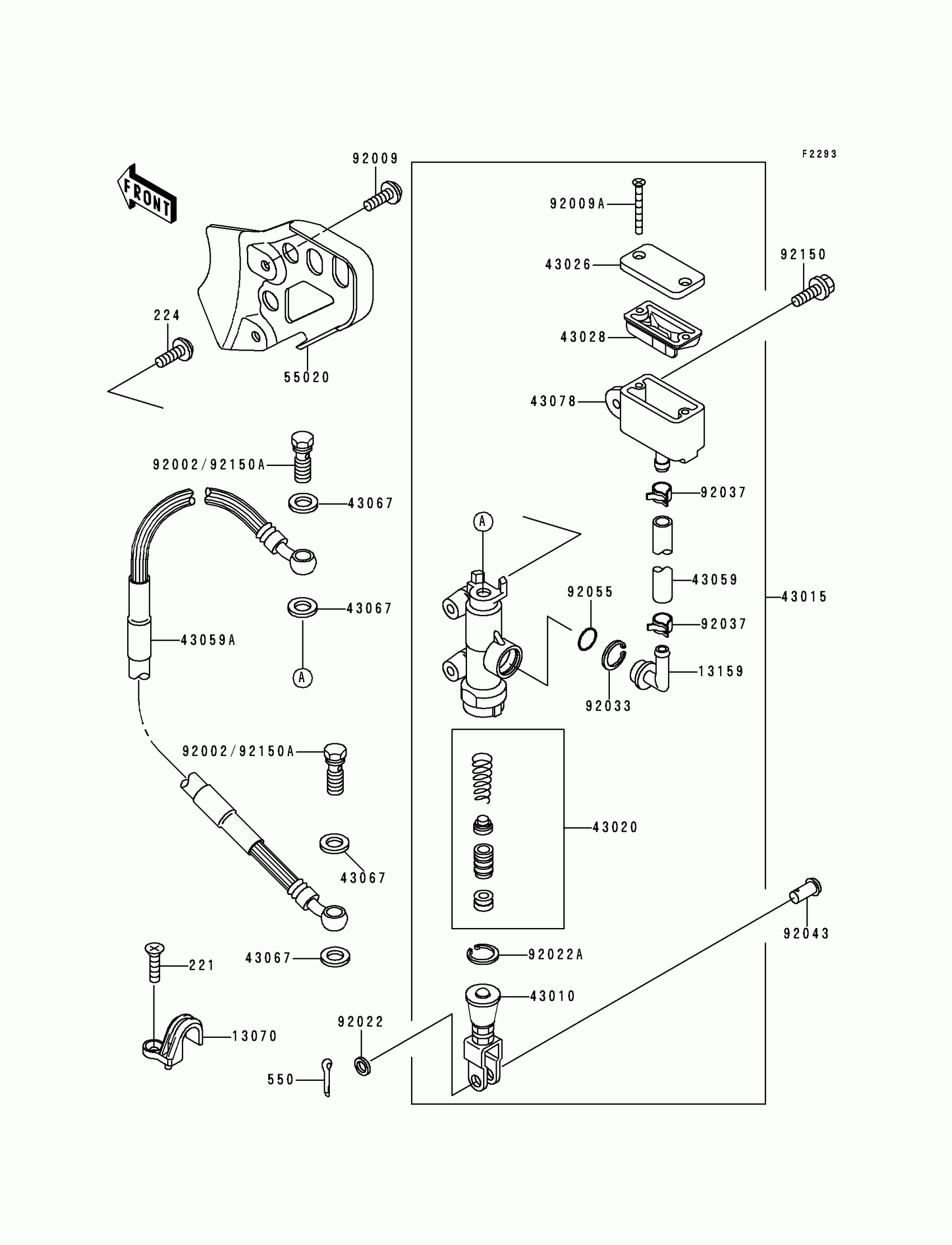

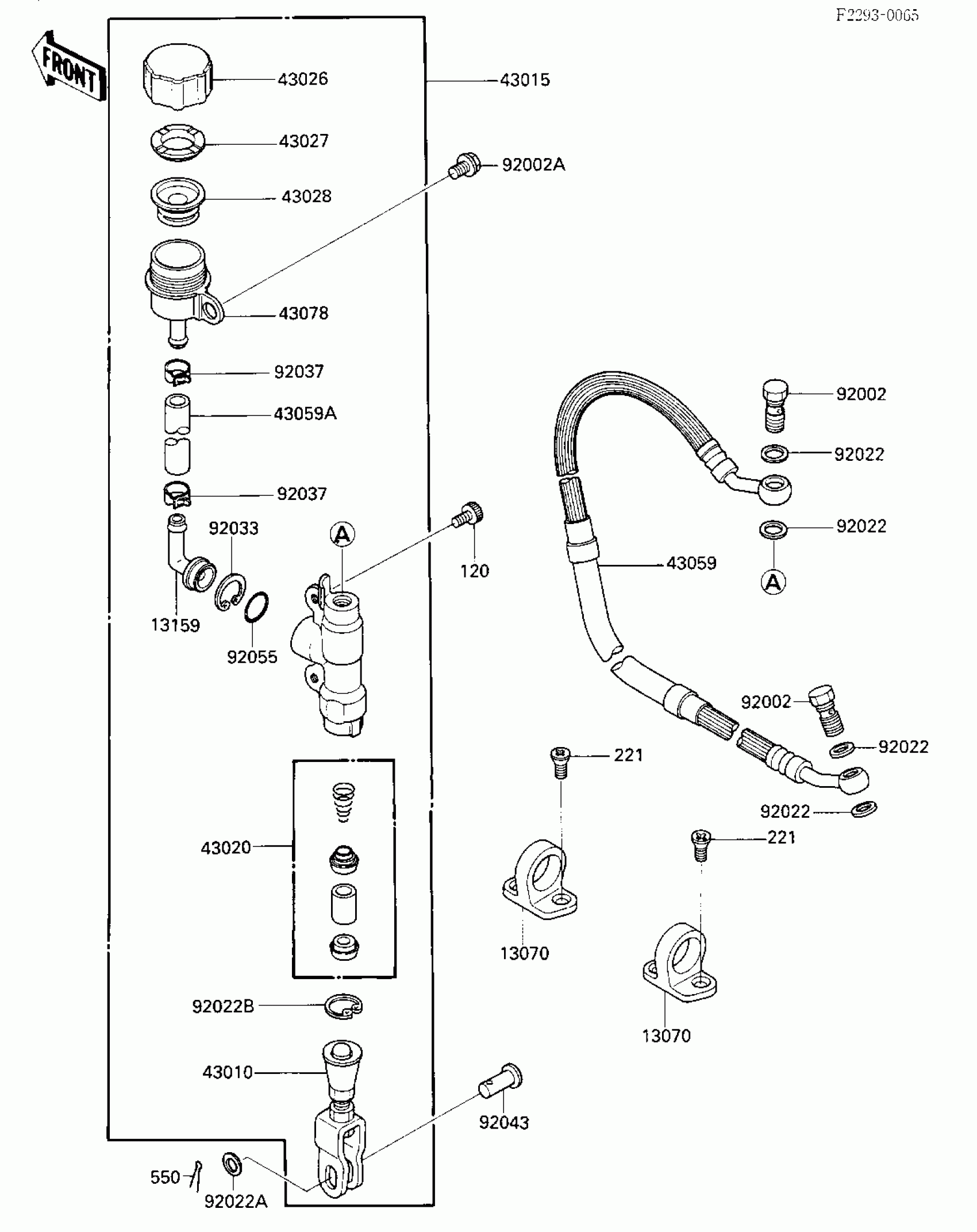

Kawasaki KX125 Rear Master Cylinder Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0614

$1.42

220

SCREW PAN HEAD 5X10

220B0510

$0.69

550

PIN COTTER 2.0X15

550D2015

$1.04

13070

GUIDE,BRAKE HOSE

13070-0048

$7.76

43010

ROD-ASSY-BRAKE

43010-0003

$59.56

43015

CYLINDER-ASSY-MASTER,RR

43015-0009

$334.75

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1086

$15.60

43028

DIAPHRAGM

43028-1092

$20.74

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43095

HOSE-BRAKE,RR

43095-0046

$73.15

92022

WASHER,8.5X13X1

92022-1028

$3.92

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92043

92043-0004

$11.16

92153

BOLT,OIL,L=23

92153-0627

$5.48

92172

SCREW

92172-1064

$2.41
