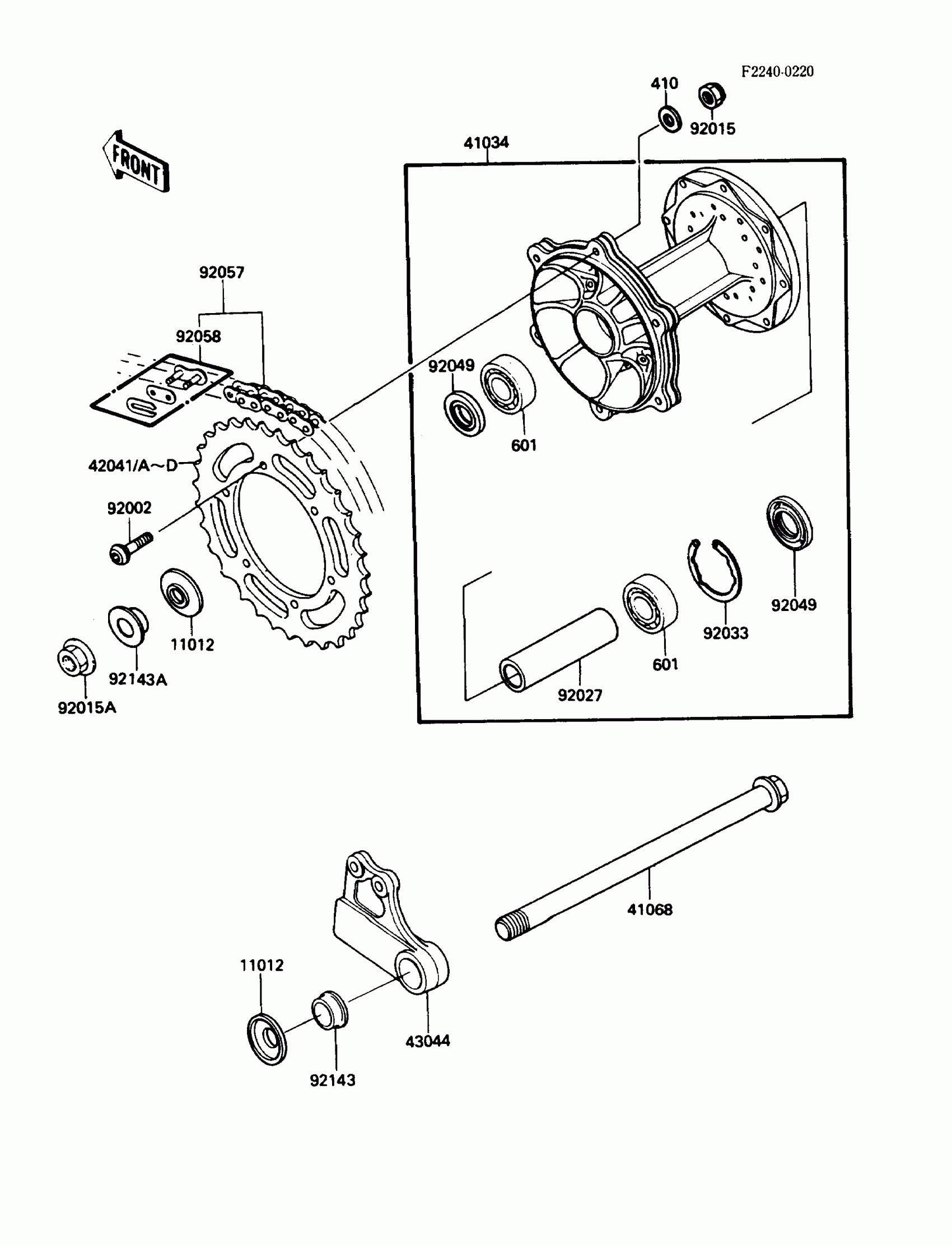

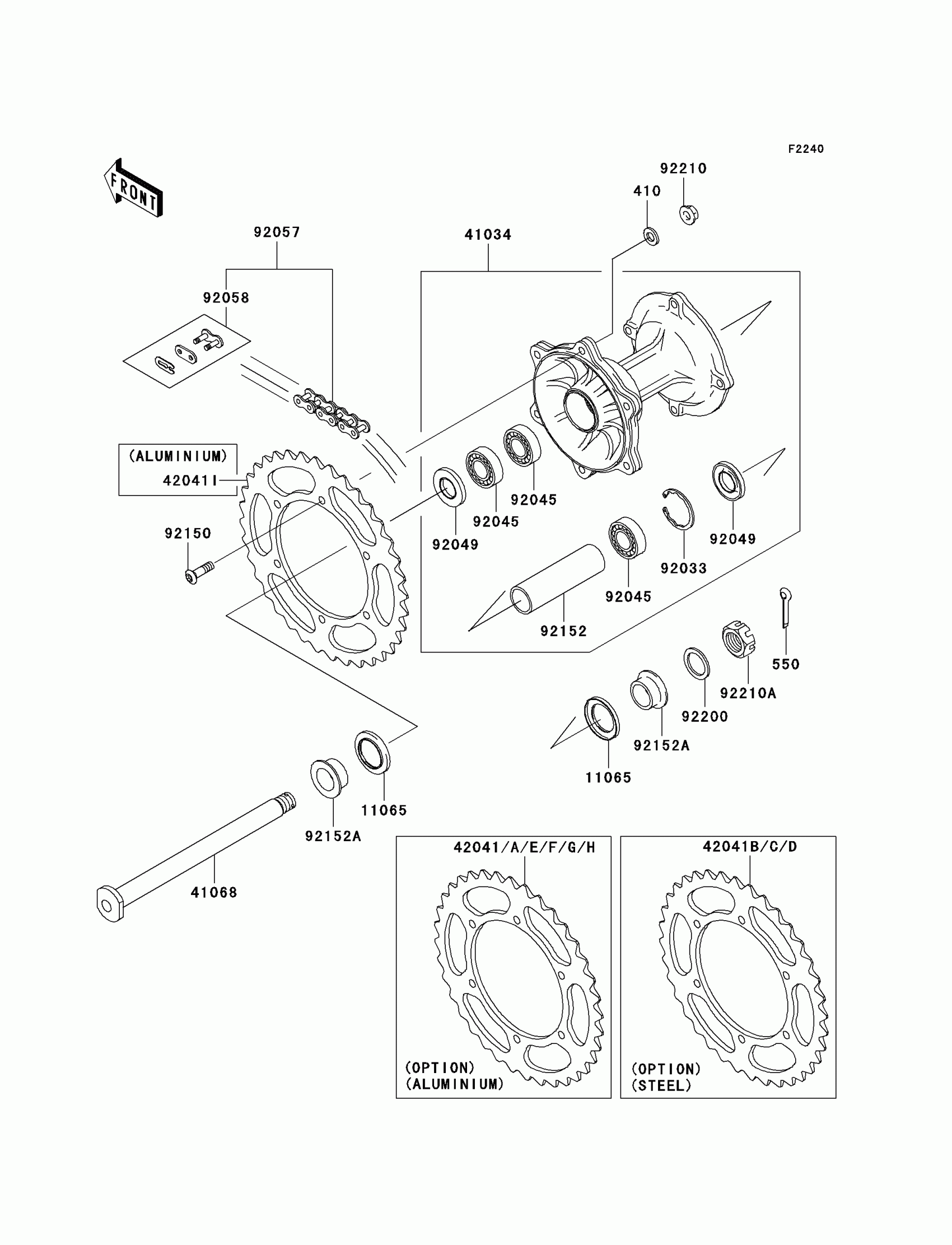

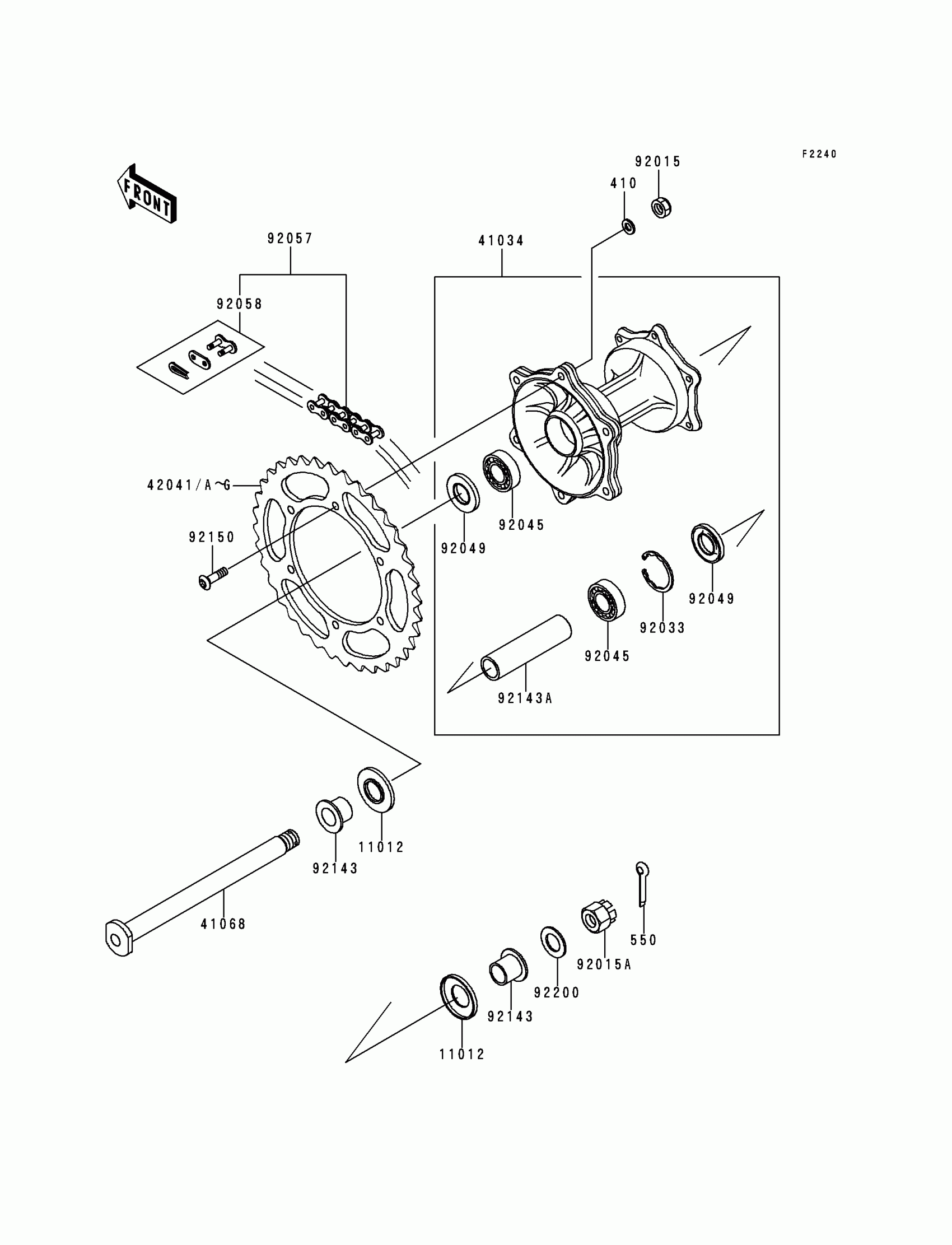

Kawasaki KX125 Rear Hub Diagram

#

Description
Price

11012

CAP,AXLE

11012-1581

$6.51

41034

DRUM-ASSY,REAR BRAKE

41034-1171

Unavailable

41068

AXLE,RR

41068-1249

$127.74

42041

SPROCKET-HUB,45T,AL

42041-1154

Unavailable

42041A

SPROCKET-HUB,49T,AL

42041-1256

$110.77

42041B

SPROCKET-HUB,48T,AL

42041-1257

$138.44

42041C

SPROCKET-HUB,47T,AL

42041-1258

$138.44

42041D

SPROCKET-HUB,46T,AL

42041-1259

$135.87

43044

HOLDER-COMP-CALIPER

43044-1068

$164.92

92002

BOLT,8MM

92002-1387

$6.56

92015

NUT,LOCK,8MM

92015-1124

$5.42

92015A

NUT,20MM

92015-1461

$24.15

92027

COLLAR,20.2X25.4X120

92027-1942

$58.02

92033

RING-SNAP,42MM

92033-1041

$6.16

92049

SEAL-OIL,BJNC2 25425

92049-1203

$17.91

92057

CHAIN,DRIVE,DID520DS6X112L

92057-1244

Unavailable

92058

JOINT-CHAIN,DRIVE,DID520 DS6

92058-1057

$12.05

92143

COLLAR,REAR AXLE,L=13

92143-1089

Unavailable

92143A

COLLAR,REAR AXLE,L=18

92143-1090

Unavailable

410

WASHER PLAIN 8MM

410B0800

$0.93

601

BEARING-BALL,#6004UC3

601B6004U

$37.11
