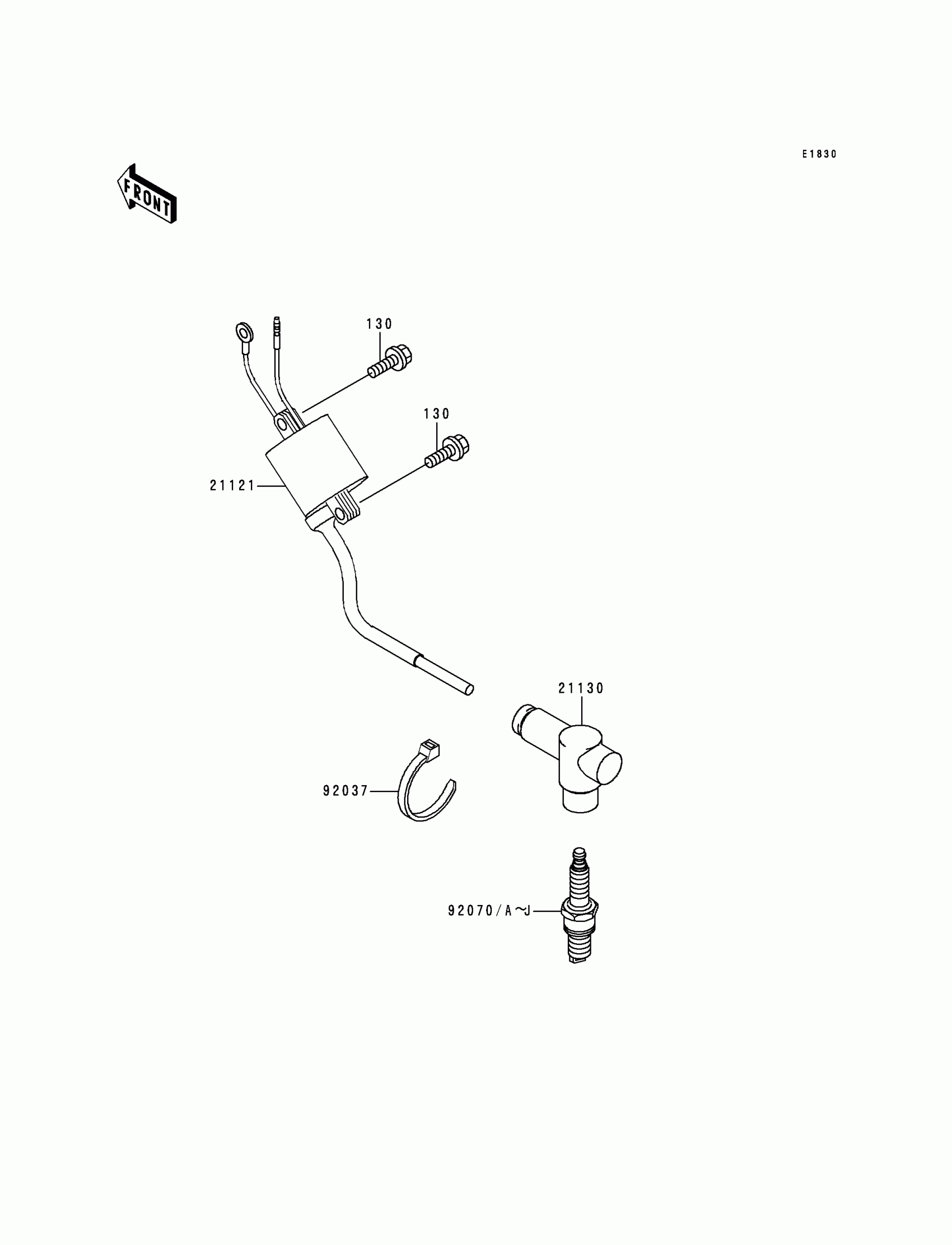

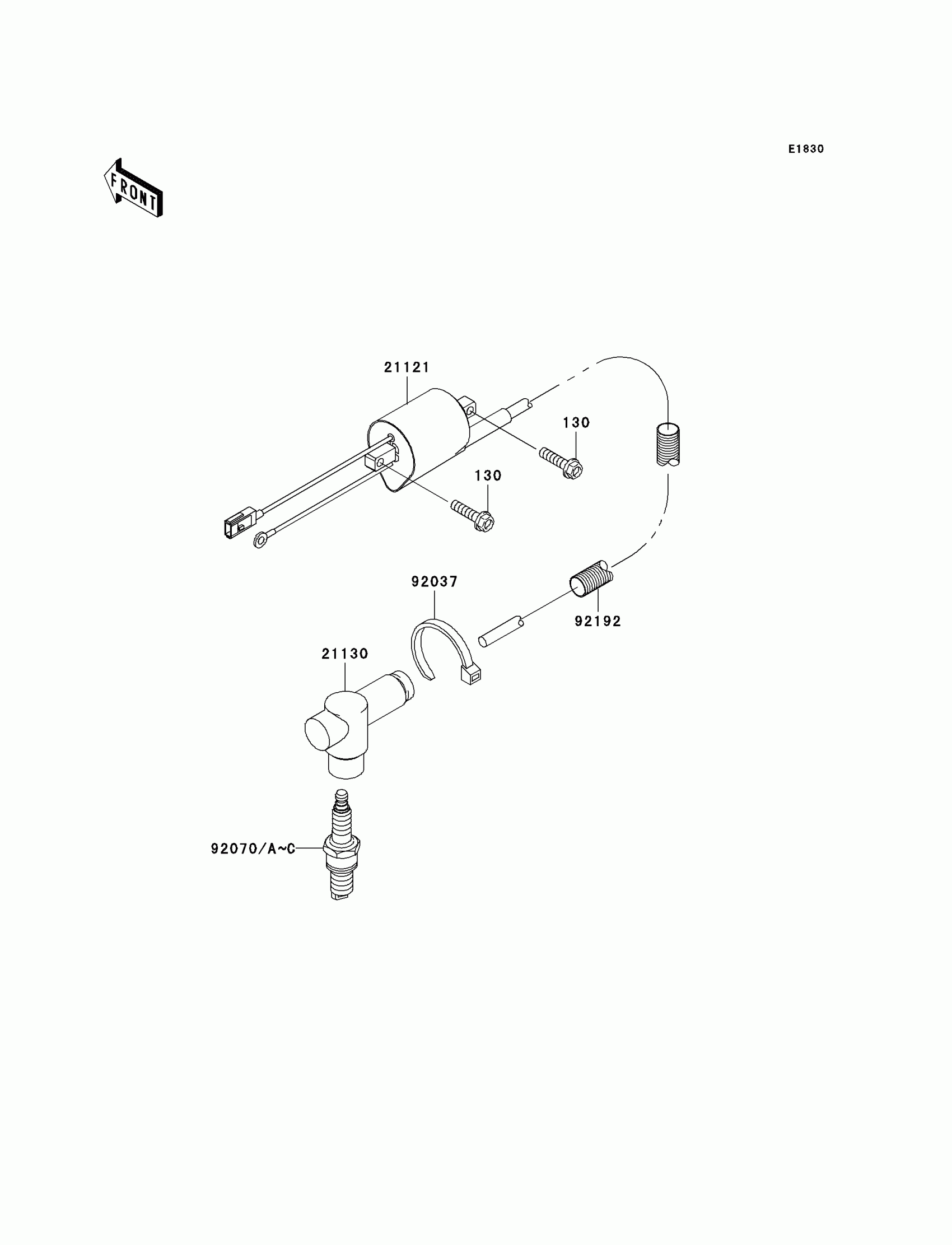

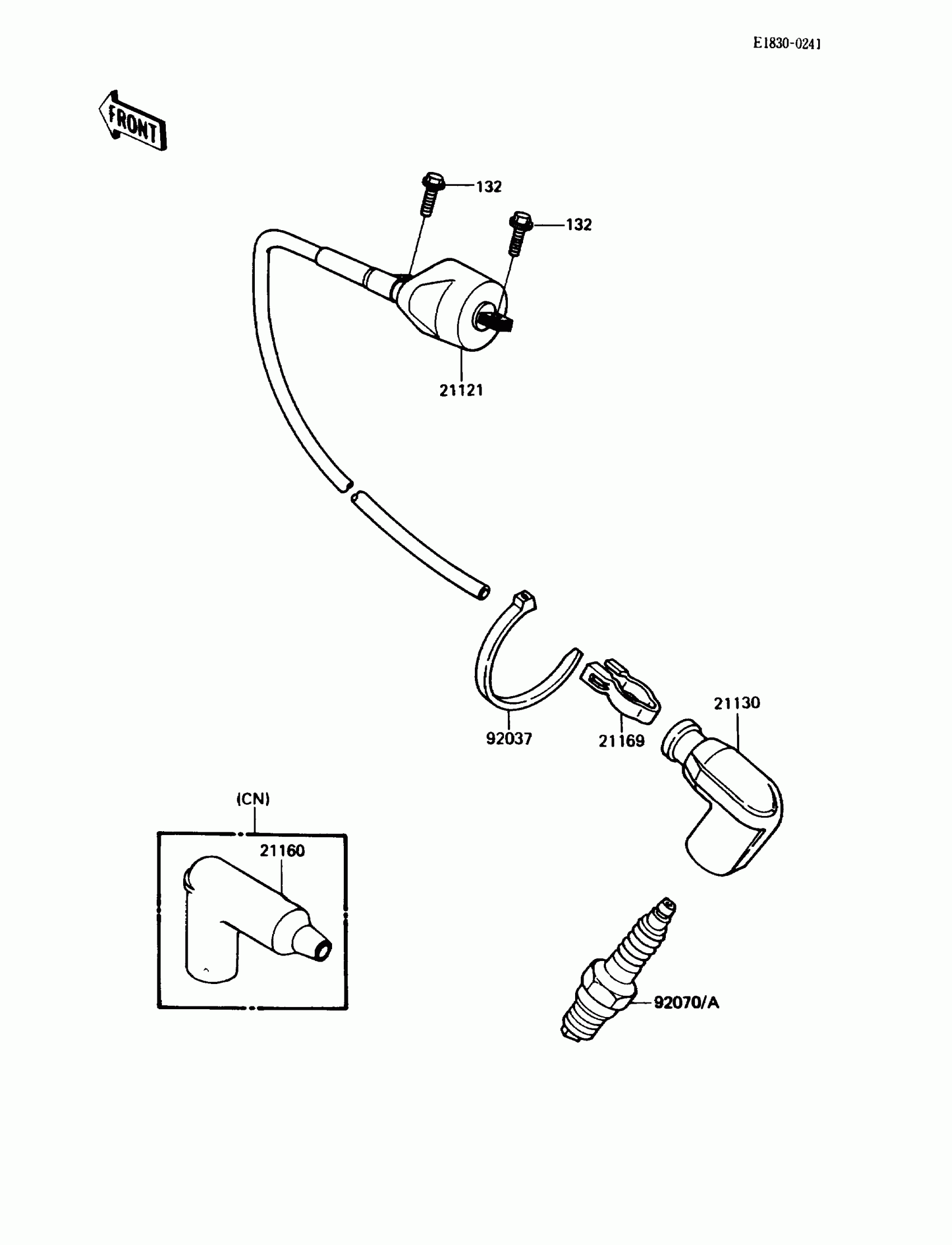

Kawasaki KX125 Ignition System Diagram

BOLT-FLANGED

130G0520

Unavailable

COIL-IGNITION

21121-1247

$97.79

CAP-SPARK PLUG

21130-1073

Unavailable

CLAMP

92037-1173

$3.49

PLUG-SPARK,R4630A-105(NGK)

92070-1185

$30.64

PLUG-SPARK,B10EVX(NGK)

92070-1186

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

Not Available As Spare Part - Friction Washer

Unavailable

PLUG-SPARK,R6252E-9(NGK)

92070-1197

Unavailable

PLUG-SPARK,R6254E-9(NGK)

92070-1198

Unavailable

PLUG-SPARK,R6254K-105(NGK)

92070-1204

Unavailable

PLUG-SPARK,R6252K-105(NGK)

92070-1205

Unavailable

PLUG-SPARK,R4630A-9(NGK)

92070-1206

$30.64

PLUG-SPARK,B9EVX(NGK)

92070-1212

$14.47

PLUG-SPARK,BR9EVX(NGK)

92070-1213

$14.47
