Partiron

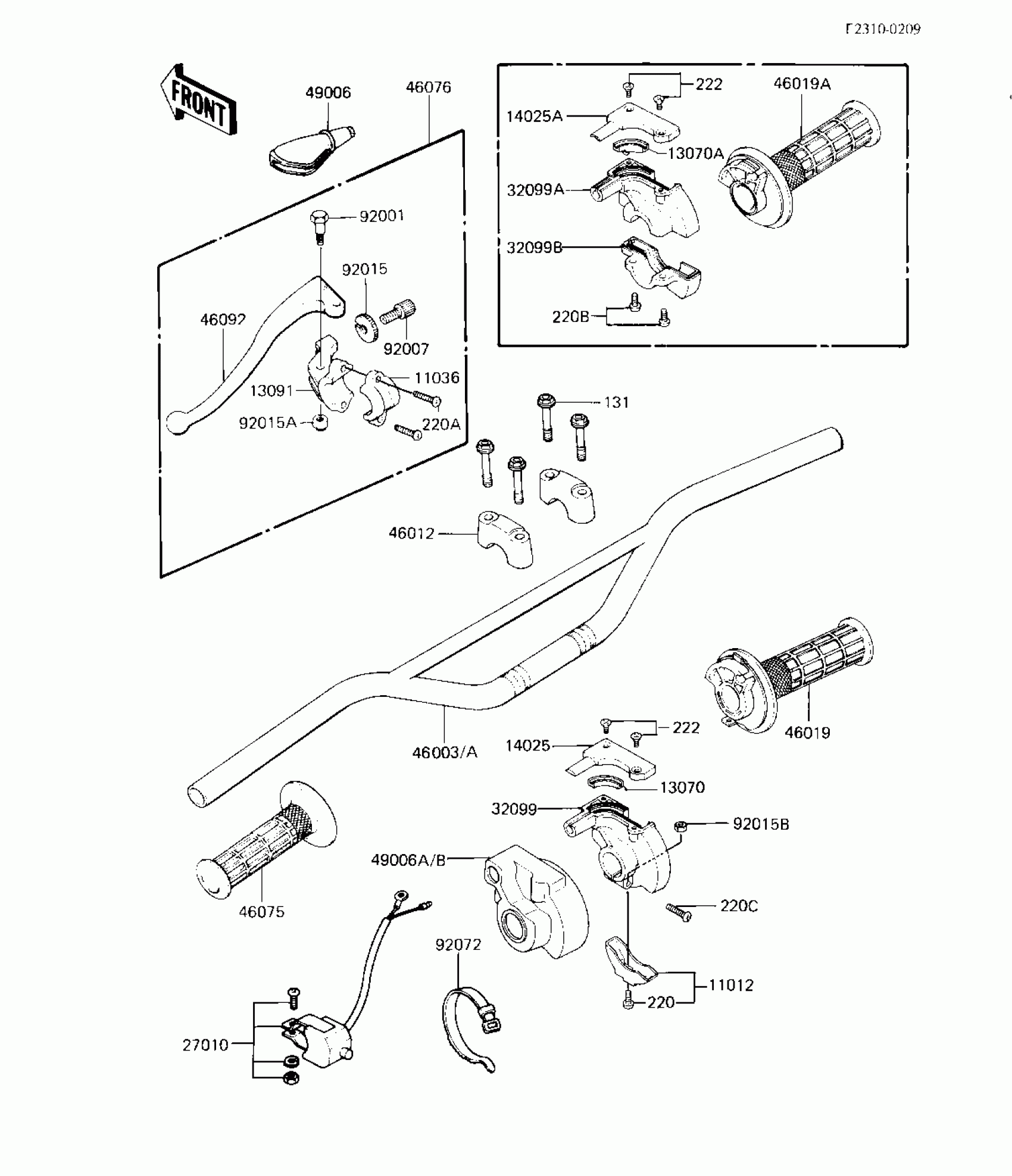

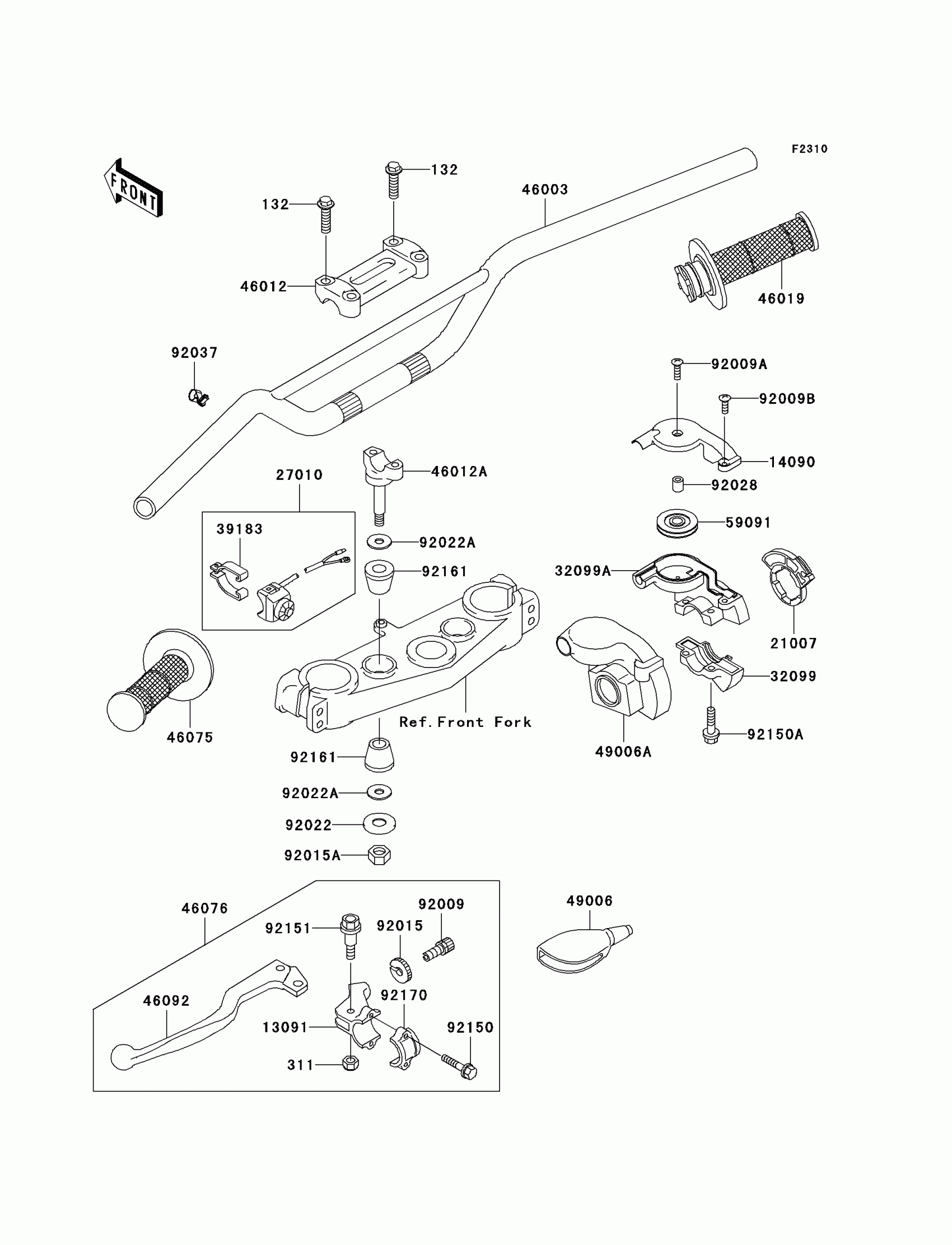

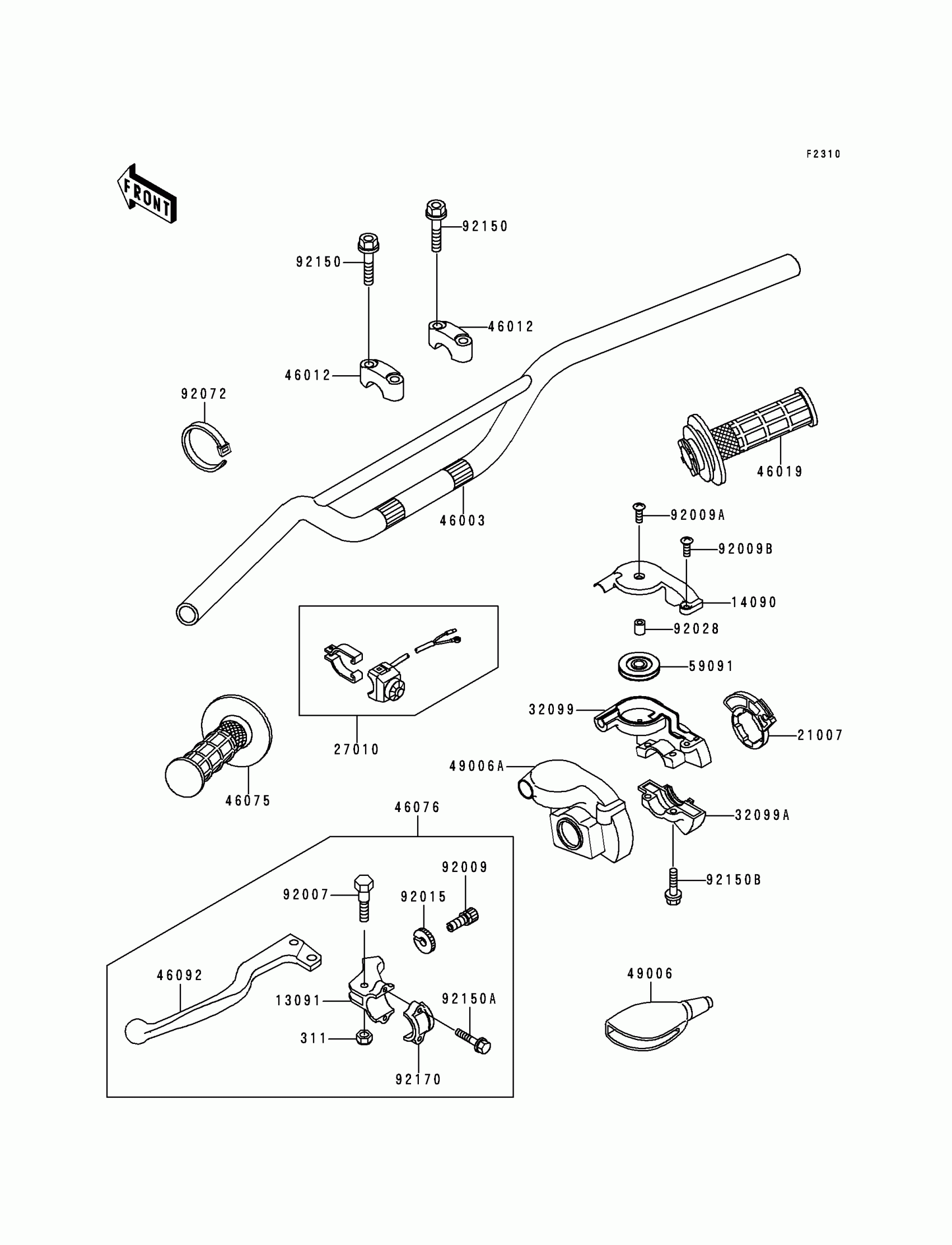

Kawasaki KX125 Handlebar Diagram

#

Description
Price

132

BOLT-FLANGED-SMALL,8X30

132G0830

$4.15

311

NUT-HEX

311B0500

$0.47

13091

HOLDER,CLUTCH LEVER

13091-1728

$51.24

14090

COVER,THROTTLE CASE,UPP

14090-1161

$11.40

21007

ROTOR,THROTTLE

21007-1242

$13.84

27010

SWITCH,ENGINE STOP

27010-0022

$58.25

32099

CASE,THROTTLE,LWR

32099-1138

$32.96

32099A

CASE,THROTTLE,UPP

32099-1168

$48.74

39183

BAND-ASSY,SWITCH

39183-1059

$13.02

46003

HANDLE,P.SILVER

46003-0060-458

$96.48

46012

HOLDER-HANDLE,UPP,P.SILVER

46012-0010-458

$66.44

46012A

HOLDER-HANDLE,LWR,P.SILVER

46012-0016-458

$44.97

46019

GRIP-ASSY,THROTTLE

46019-1125

$37.43

46075

GRIP,LH

46075-1213

$33.33

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1203

$40.25

46092

LEVER-GRIP,CLUTCH

46092-1165

$15.95

49006

BOOT,LEVER HOLDER

49006-1017

$18.72

49006A

BOOT,THROTTLE

49006-1301

$19.48

59091

PULLEY,THROTTLE

59091-1102

$11.51

92009

SCREW,CABLE ADJUST,8MM

92009-1476

$18.89

92009A

SCREW

92009-1674

$5.24

92009B

SCREW

92009-1675

$3.46

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$8.86

92015A

NUT,LOCK,10MM

92015-1962

$6.11

92022

WASHER,10.2X28X2

92022-1088

$4.69

92022A

WASHER

92022-1737

$5.52

92028

BUSHING,THROTTLE CASE

92028-1658

$6.87

92037

CLAMP,SPEED,L=43

92037-1290

$7.34

92150

BOLT

92150-1474

$5.00

92150A

BOLT

92150-1559

$4.80

92151

BOLT,LEVER SET,5MM

92151-1103

$6.57

92161

DAMPER,HANDLE HOLDER

92161-0113

$5.29

92170

CLAMP,LEVER HOLDER

92170-1226

$27.29
