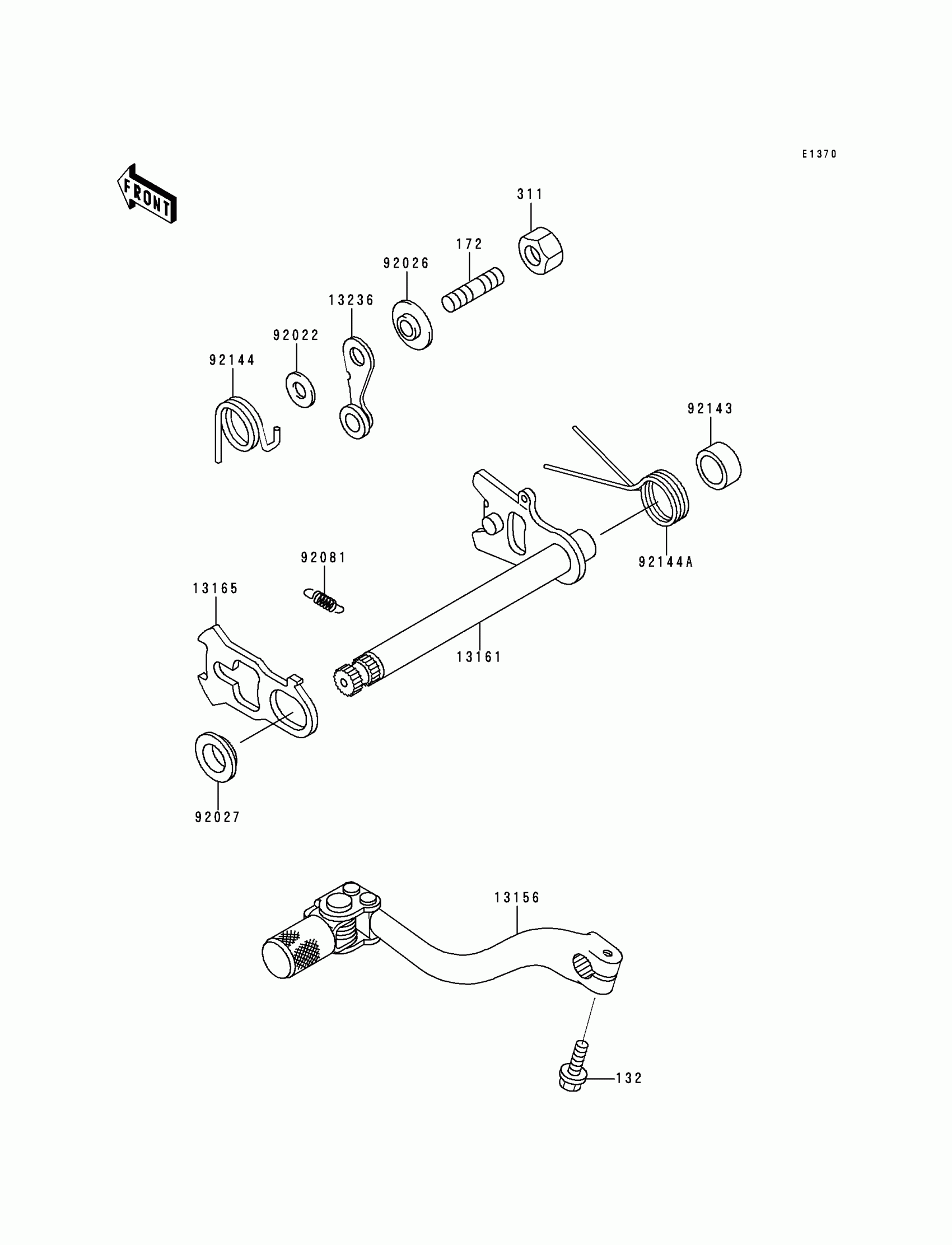

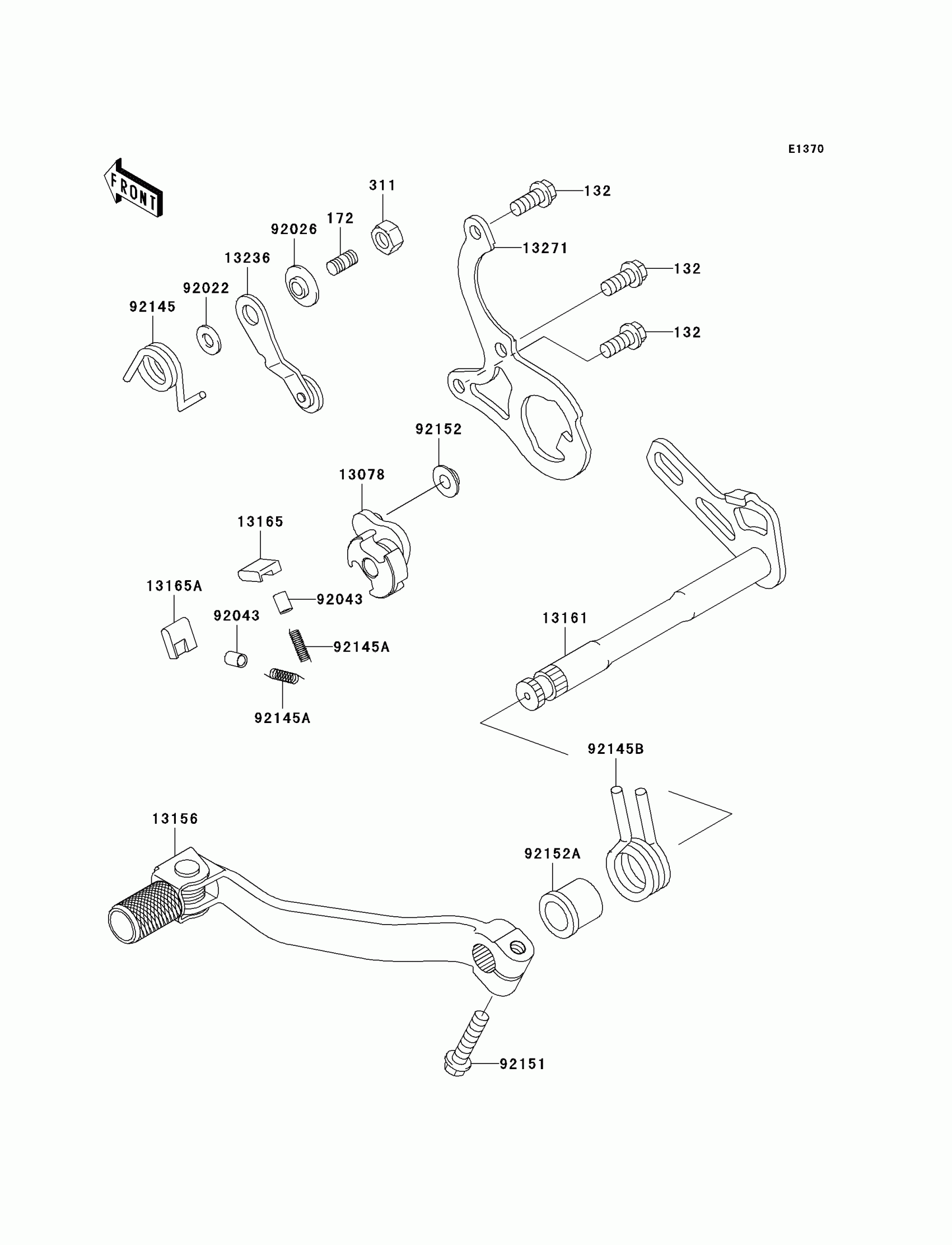

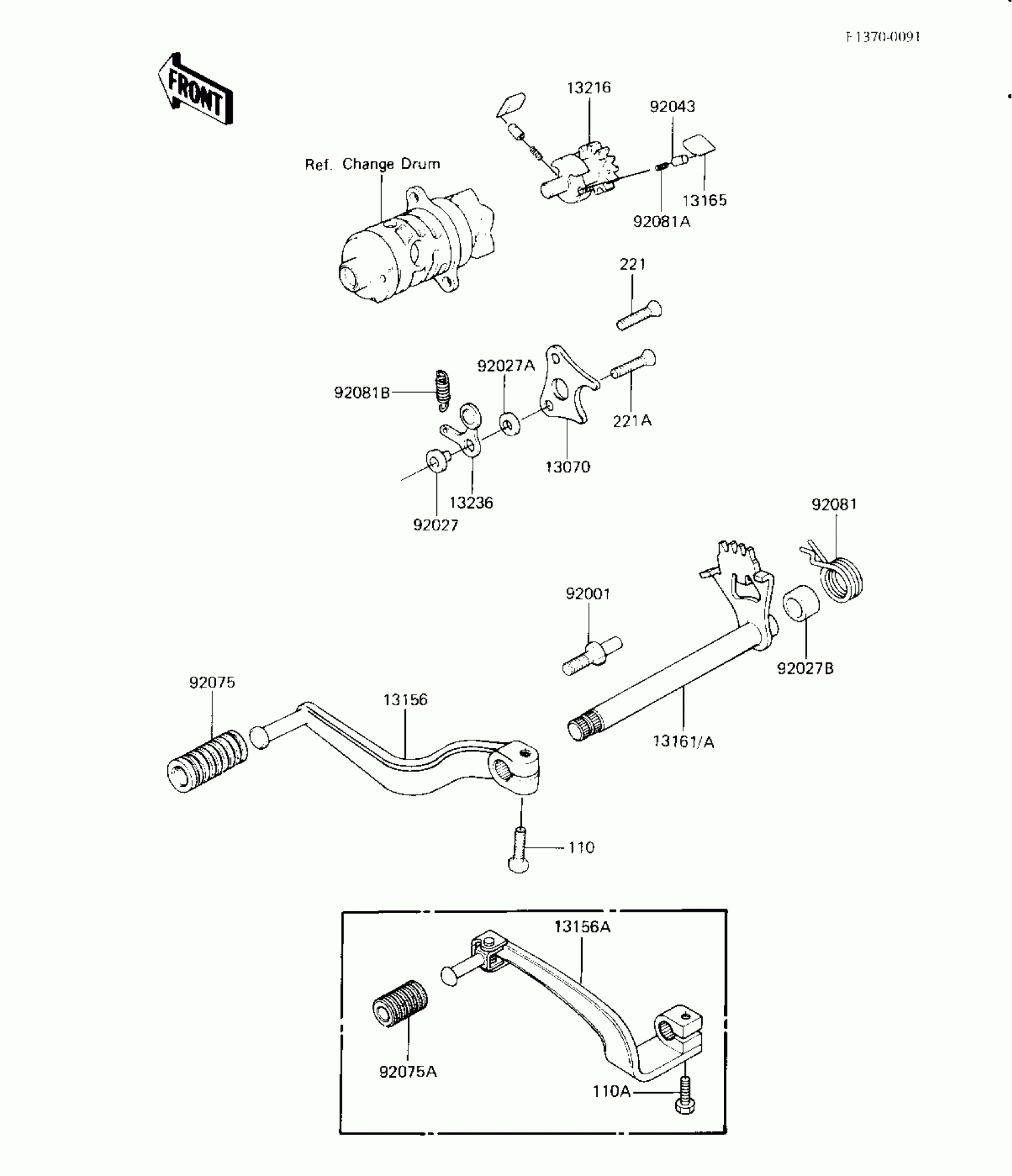

Kawasaki KX125 Gear Change Mechanism Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0614

$1.42

172

BOLT-STUD,6X12

172G0612

$0.85

311

NUT-HEX,6MM

311G0600

$2.19

13078

RATCHET

13078-1071

$79.18

13156

LEVER-CHANGE

13156-1493

$106.76

13161

LEVER-COMP-CHANGE SHAFT

13161-0007

$58.96

13165

PAWL

13165-1162

$15.90

13165A

PAWL

13165-1163

$15.90

13236

LEVER-COMP,POSITION

13236-1393

$12.74

13271

PLATE,PAWL GUIDE

13271-1824

$18.92

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92043

PIN,PLUNGER

92043-1676

$8.72

92145

SPRING,POSITION

92145-0064

$14.17

92145A

SPRING

92145-1490

$3.69

92145B

SPRING,RETURN

92145-1493

$13.72

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR

92152-1414

$7.63

92152A

COLLAR,RETURN SPRING

92152-1419

$7.63
