1983 Kawasaki KX125 Front Master Cylinder Diagram

← All diagrams

Find the part on the Front Master Cylinder diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

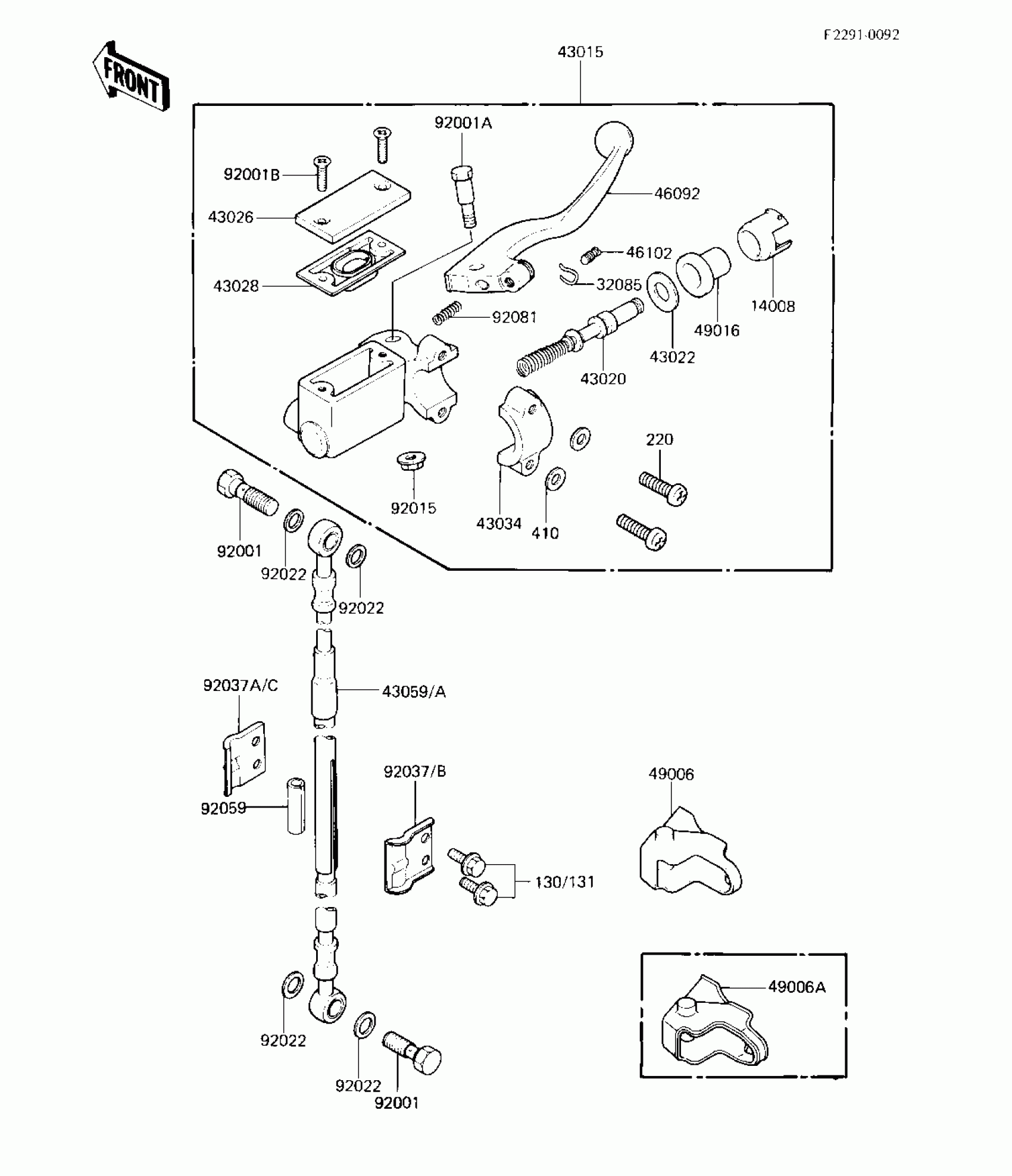

1983 Kawasaki KX125 Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14008

LINER

14008-1030

1
Out of stock

32085

STOPPER,BRAKE LEVER ROD

32085-1087

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-1281

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1021

1

$67.26

In stock

43022

STOPPER-BRAKE

43022-1008

1
Out of stock

43026

CAP-BRAKE

43026-1019

1
Out of stock

43028

DIAPHRAGM

43028-1030

1
Out of stock

43034

HOLDER-BRAKE

43034-1012

1
Out of stock

43059A

HOSE-BRAKE

43059-1155

1

$179.49

In stock

46092

LEVER-GRIP,BRAKE

46092-1108

1
Out of stock

46102

ROD,BRAKE LEVER ADJUS

46102-1042

1
Out of stock

49006A

BOOT,BRAKE LEVER

49006-1090

1
Out of stock

49016

COVER-SEAL

49016-1035

1
Out of stock

92001

BOLT,OIL,L=23

92002-1888

1
Out of stock

92001A

BOLT,6X37.3,BLACK

92001-1512

1

$9.97

In stock

92001B

SCREW-CSK-CROS,4X10,BLACK

92001-1532

1
Out of stock

92015

NUT,LOCK,6MM,BLACK

92015-1191

1
Out of stock

92022

WASHER,10.5X15X1.5

43067-001

1

$1.81

In stock

92037B

1

$5.84

In stock

92037C

1

$5.84

In stock

92081

SPRING,BRAKE LEVER

92081-1428

1
Out of stock

130

BOLT,FLANGED,6X14

130G0614

1
Out of stock

220

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

410

1

$1.19

In stock
