1983 Kawasaki KX125 Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

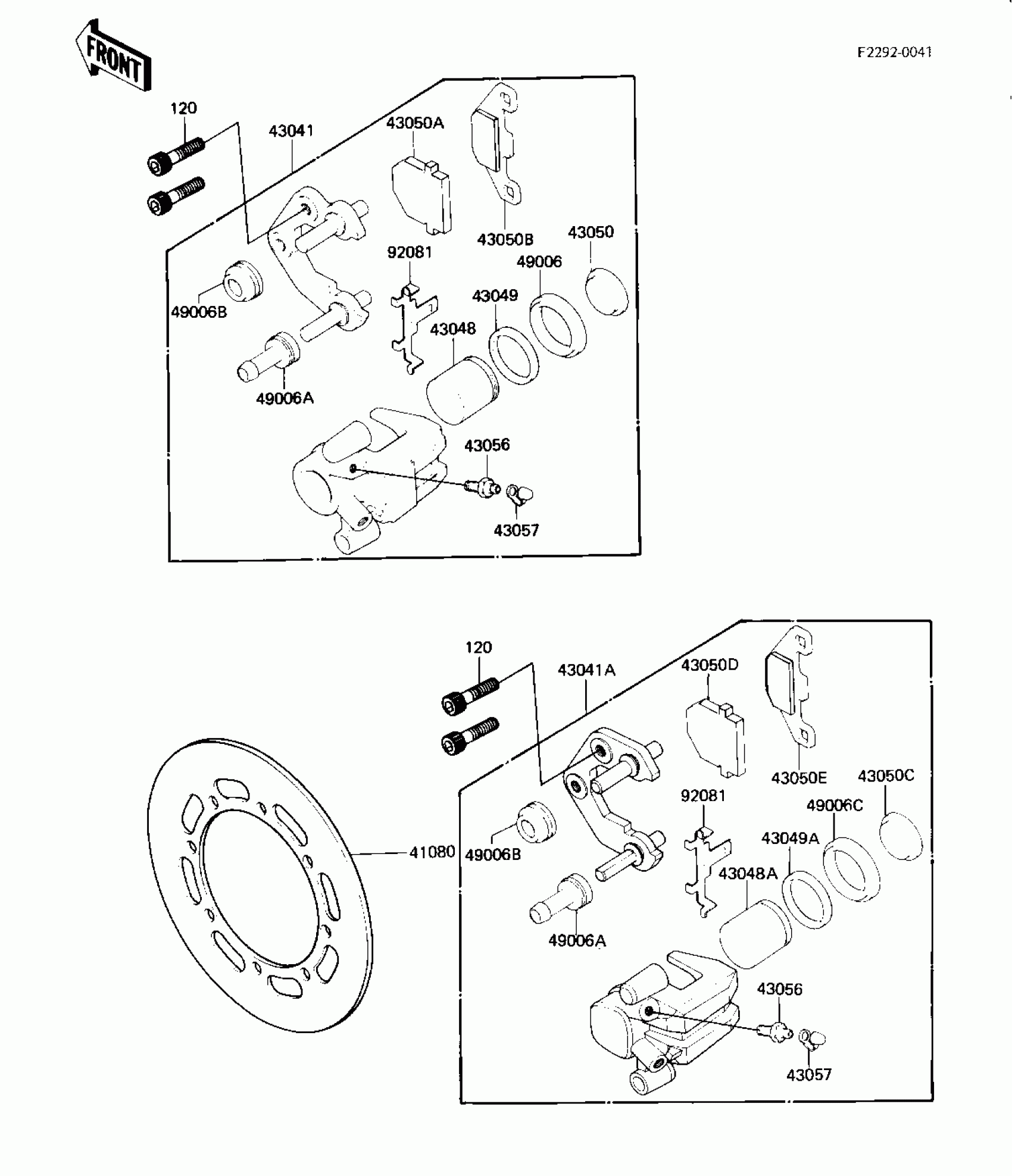

1983 Kawasaki KX125 Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FRONT BREAK

41080-1044

1
Out of stock

43041A

CALIPER-ASSY

43041-1084

1
Out of stock

43048A

PISTON-CALIPER

43048-1056

1

$100.47

In stock

43094A

PACKING

43049-1027

1

$10.38

In stock

43050C

PAD-BRAKE

43050-1051

1
Out of stock

43050D

PAD-BRAKE

43050-1063

1

$53.17

In stock

43050E

PAD-BRAKE

43050-1064

1

$53.17

In stock

43056

BREATHER

43056-003

1

$22.74

In stock

43057

CAP-BREATHER

43057-003

1

$2.02

In stock

49006A

BOOT,CALIPER

49006-1054

1

$9.20

In stock

49006B

BOOT,CALIPER

49006-1055

1

$5.78

In stock

49006C

BOOT,CALIPER

49006-1093

1

$13.67

In stock

92081

SPRING,PAD

92081-1341

1

$12.00

In stock

120

BOLT-SOCKET,8X20

120P0820

1
Out of stock
