1983 Kawasaki KX125 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

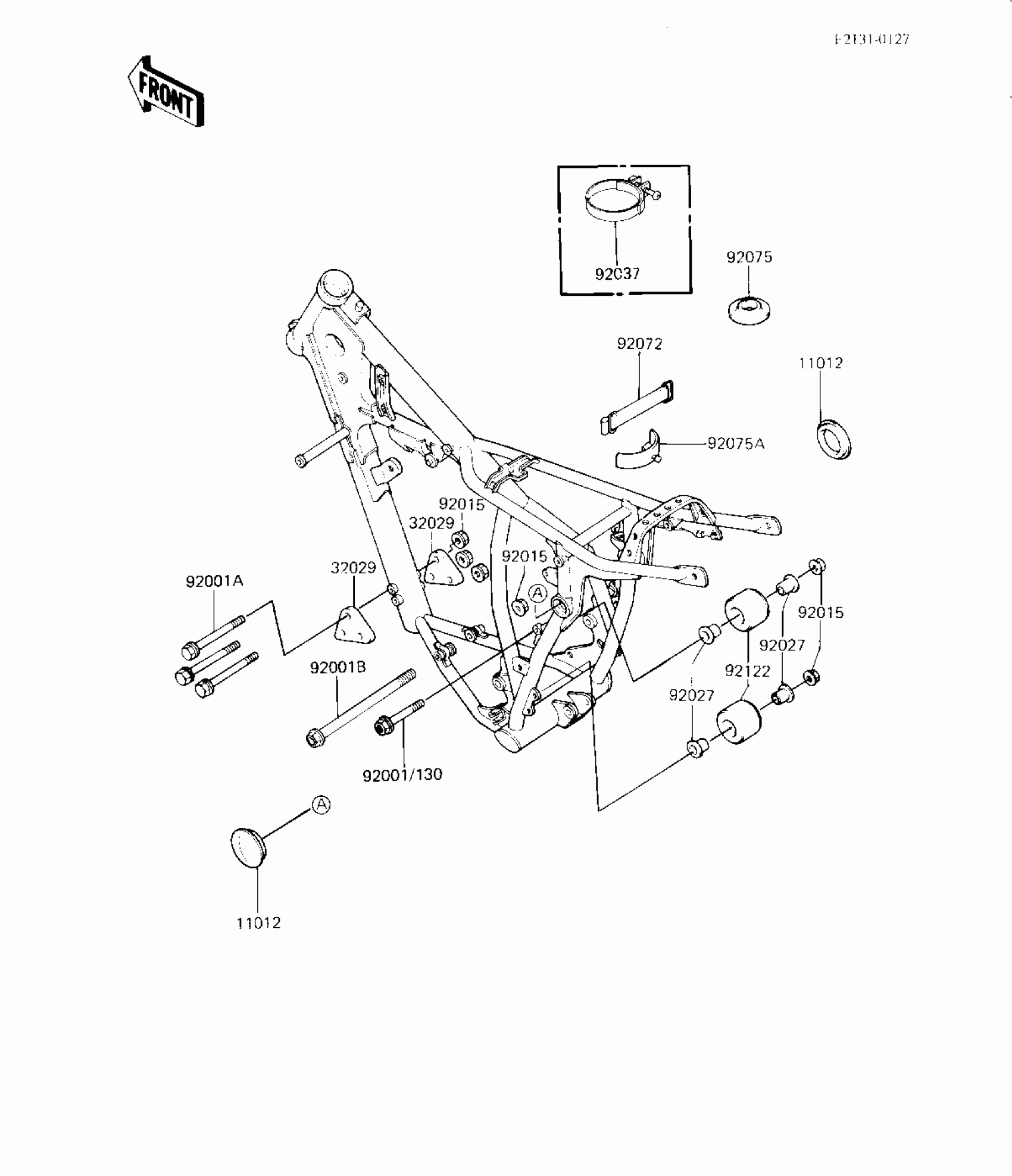

1983 Kawasaki KX125 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,UNI-TRAK

11012-1211

1
Out of stock

32029

BRACKET-ENGINE

32029-1173

1
Out of stock

92001A

BOLT,FLANGED,8X70

92001-1583

1
Out of stock

92001B

BOLT,FLANGED,8X135

92150-1037

1

$5.34

In stock

92015

NUT,8MM

92015-1143

1
Out of stock

92027

COLLAR,CHAIN GUIDE

92027-1383

1

$8.39

In stock

92037

CLAMP

92037-1172

1

$6.69

In stock

92075

DAMPER,RESERVE TANK

92075-1358

1
Out of stock

92122

ROLLER,CHAIN GUIDE

92122-1021

1

$12.73

In stock

130

BOLT-FLANGED,8X40

130G0840

1
Out of stock
