1983 Kawasaki KX125 Fenders Diagram

← All diagrams

Find the part on the Fenders diagram for your 1983 Kawasaki KX125, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

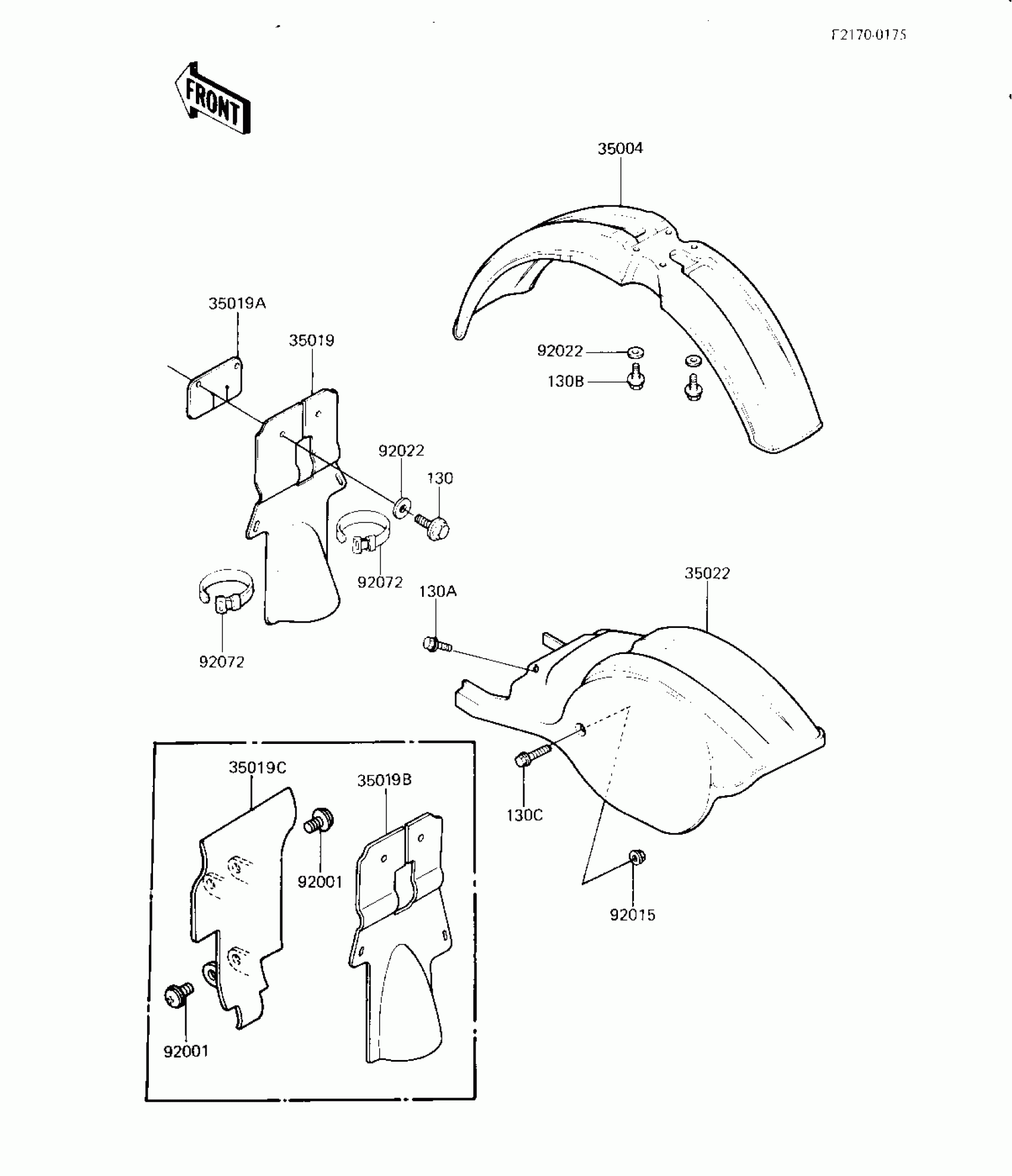

1983 Kawasaki KX125 Fenders Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004

FENDER-FRONT,L.GREEN

35004-1233-6W

1
Out of stock

35019A

FLAP

35019-1038

1
Out of stock

35019B

FLAP,REAR FENDER

35019-1048

1
Out of stock

35019C

FLAP,SUSPENSION ROD

35019-1050

1
Out of stock

35022

FENDER-COMP-REAR,L.GR

35022-1204-AE

1
Out of stock

92001

SCREW,6X10,WHITE

92009-1286

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92072

BAND,L=123

92072-030

1

$3.97

In stock

130

BOLT-FLANGED,6X12

130G0612

1
Out of stock

130A

BOLT,FLANGED,6X14

130G0614

1
Out of stock

130B

BOLT-FLANGED,6X18

130G0618

1
Out of stock

130C

BOLT-FLANGED,6X20

130G0620

1
Out of stock
← Ignition Coil Footrests →
