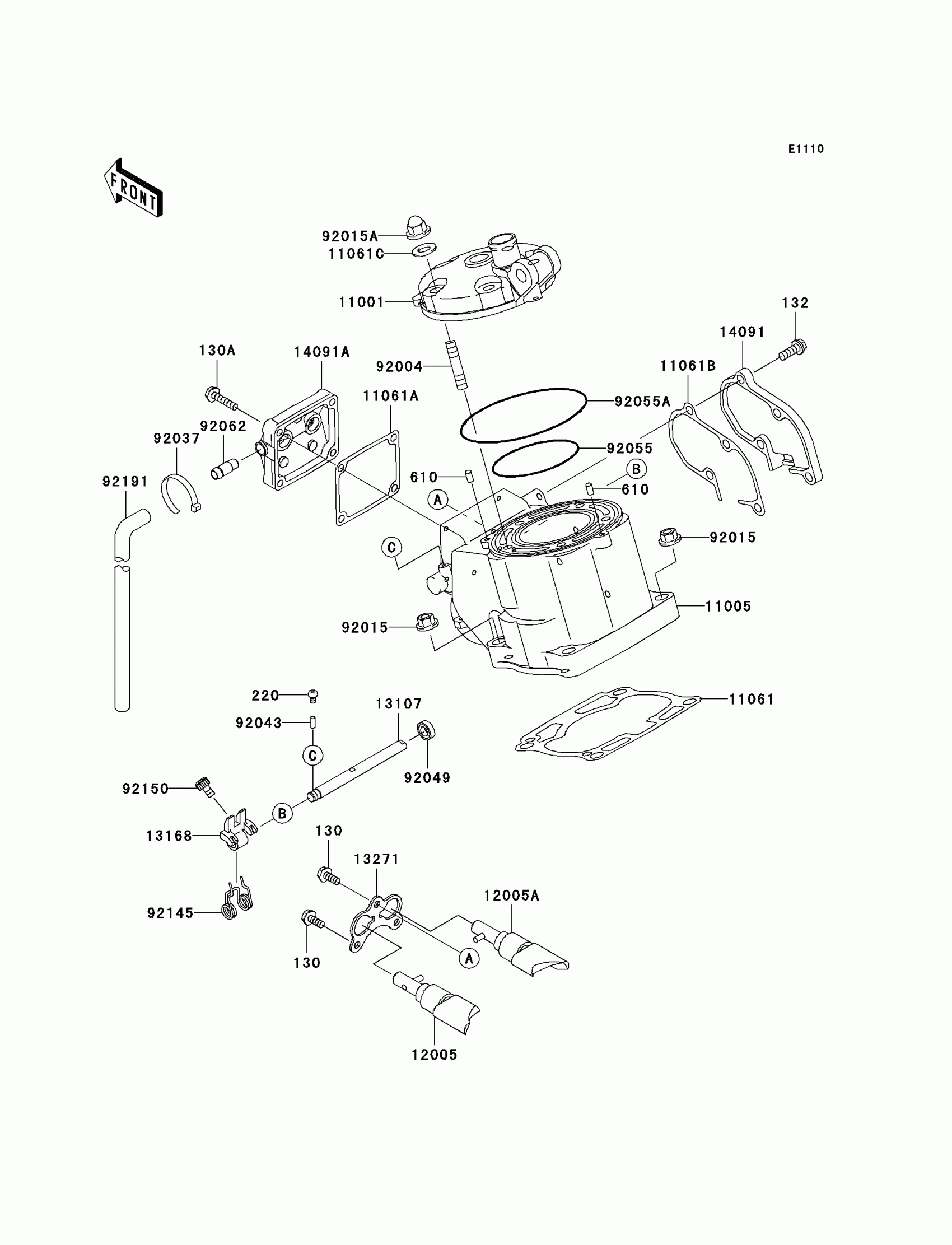

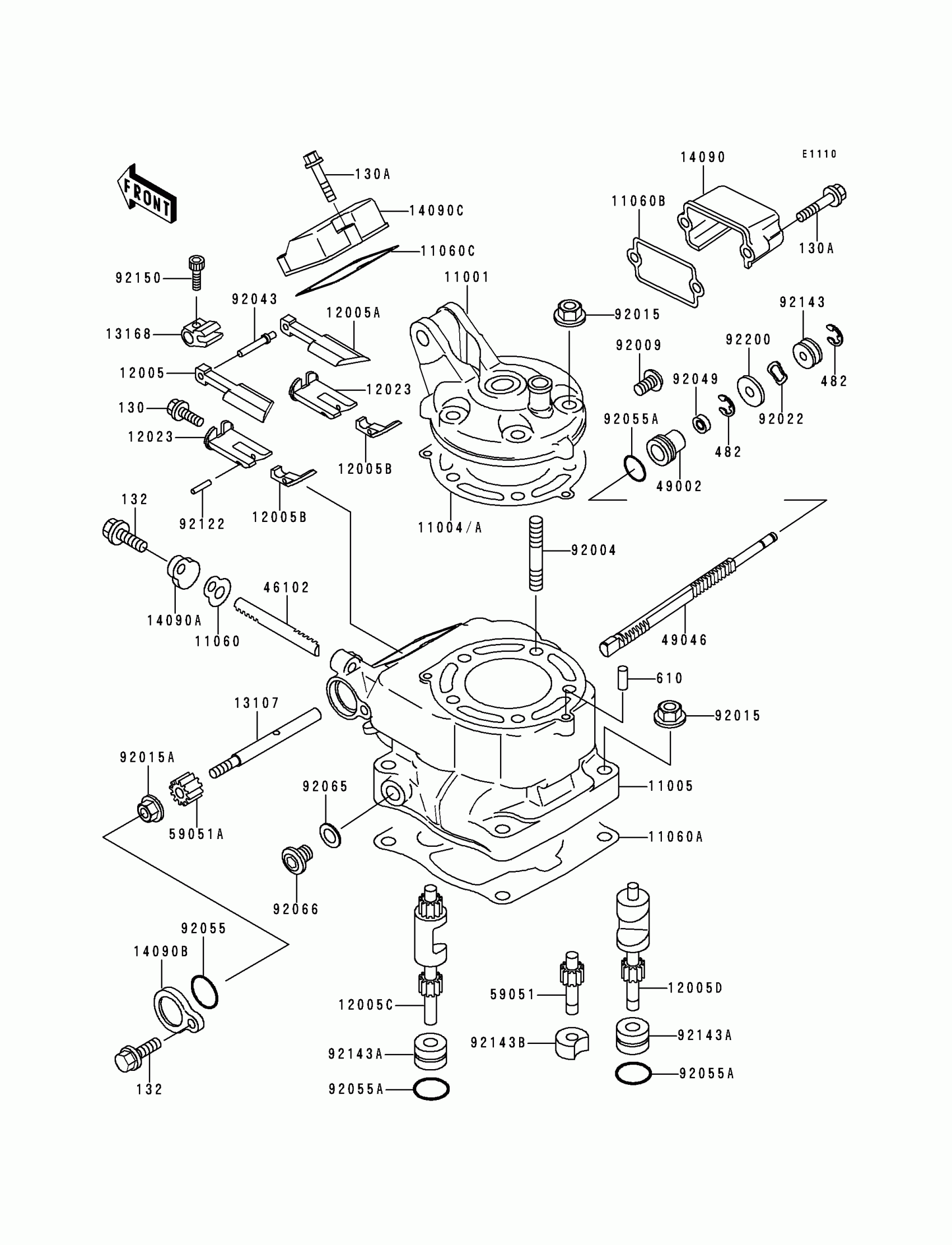

Kawasaki KX125 Cylinder Head/Cylinder Diagram
#
11001
HEAD-CYLINDER
11001-1415
Unavailable
11004
GASKET-HEAD,T=0.46
11004-1252
$40.32
11004A
GASKET-HEAD,T=0.26
11004-1300
$40.32
11005
CYLINDER-ENGINE
11005-1752
Unavailable
11060
GASKET,GOVERNOR ROD
11060-1346
Unavailable
11060A
GASKET,CYLINDER BASE
11060-1647
$21.62
11060B
GASKET,RH,GOVERNOR
11060-1686
$5.14
11060C
GASKET,MAIN COVER
11060-1690
$4.80
12005
VALVE-EXHAUST,MAIN,LH
12005-1207
Unavailable
12005A
VALVE-EXHAUST,MAIN,RH
12005-1208
Unavailable
12005B
VALVE-EXHAUST,MAIN
12005-1209
Unavailable
12005C
VALVE-EXHAUST,LH
12005-1217
Unavailable
12005D
VALVE-EXHAUST,RH
12005-1218
$52.93
12023
HOLDER-VALVE,MAIN
12023-1073
Unavailable
13107
SHAFT,MAIN
13107-1284
Unavailable
13168
LEVER,MAIN VALVE
13168-1557
Unavailable
14090
COVER,GOVERNOR
14090-1130
Unavailable
14090A
COVER,GOVERNOR ROD
14090-1132
Unavailable
14090B
COVER,MAIN VALVE
14090-1133
Unavailable
14090C
COVER,MAIN VALVE
14090-1134
Unavailable
46102
ROD,MAIN VALVE
46102-1319
Unavailable
49002
GUIDE-VALVE
49002-1100
Unavailable
49046
ROD-GOVERNOR
49046-1071
$84.73
59051
GEAR-SPUR,IDLE
59051-1249
Unavailable
59051A
GEAR-SPUR,MAIN VALVE
59051-1252
$35.01
92004
STUD,8X28.5
92004-1060
$4.87
92009
SCREW,5X10
92009-1502
$4.18
92015
NUT,8MM
92015-1143
$0.65
92015A
NUT,LEFT HANDED,6MM
92015-1572
$4.11
92022
WASHER,WAVE
92022-1978
$6.24
92043
PIN
92043-1459
Unavailable
92049
SEAL-OIL,RSO-5.5X11X4
92049-1206
$10.39
92055
RING-O,16.8X2.4
92055-1258
$4.92
92055A
RING-O,14.5X1.5
92055-1399
$4.67
92065
GASKET,12.5X18X1,DRAIN PLUG
92065-073
$4.07
92066
PLUG,12X10
92066-1222
$12.37
92122
ROLLER,3X15.8
92122-1126
$3.92
92143
COLLAR,ROD
92143-1637
Unavailable
92143A
COLLAR,VALVE
92143-1748
Unavailable
130
BOLT-FLANGED,5X8
130G0508
$1.85
130A
BOLT-FLANGED
130G0525
$0.64
132
BOLT-FLANGED-SMALL,6X16
132G0616
$1.47
482
CIRCLIP-TYPE-E,4MM
482J4000
$1.35
610
ROLLER,4X8
610A0408
$4.31
92143B
COLLAR,IDLE GEAR
92143-1749
Unavailable
92150
BOLT,SOCKET,4X10
92150-1844
$2.88
92200
WASHER,5.6X18X1.2
92200-1129
$4.01
