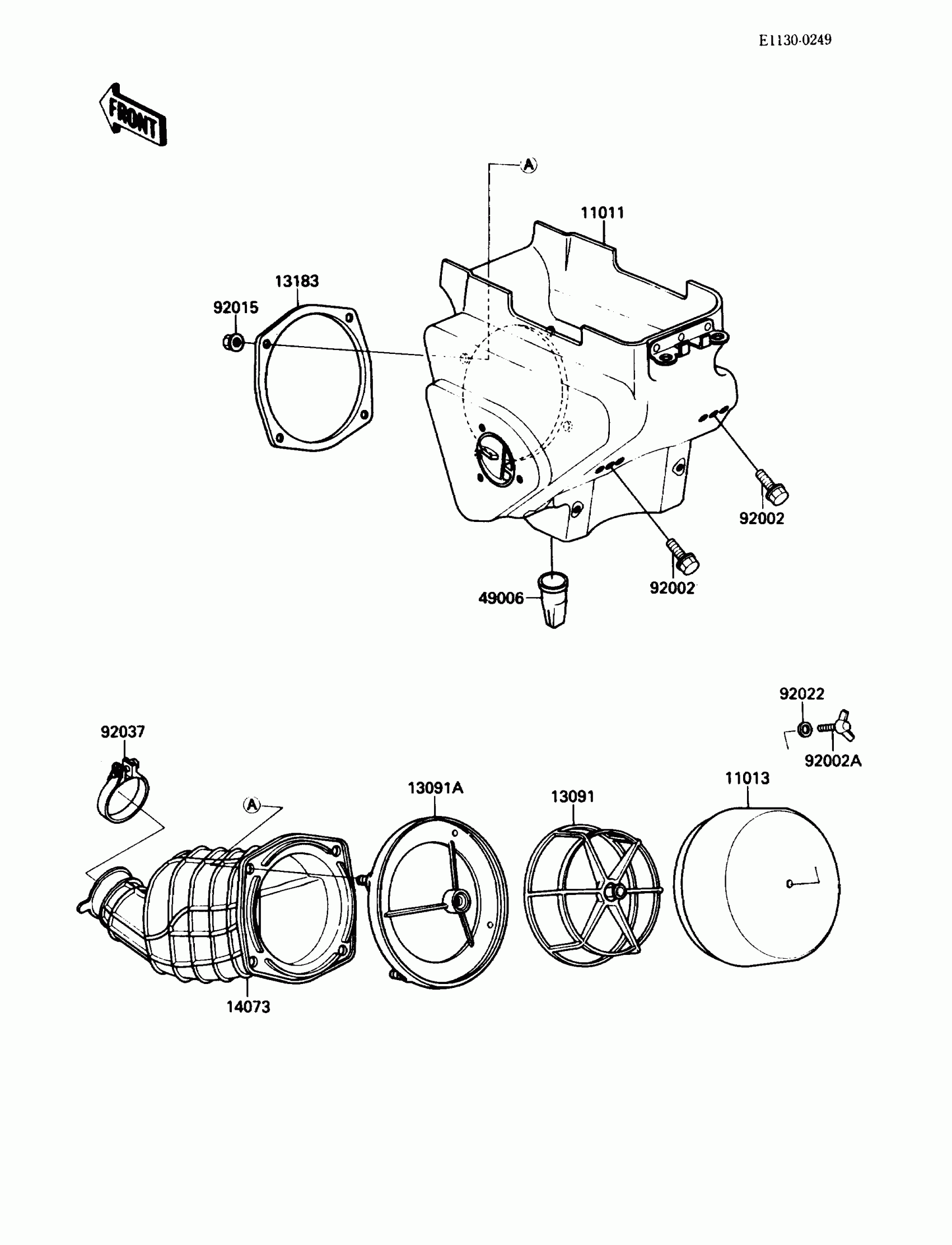

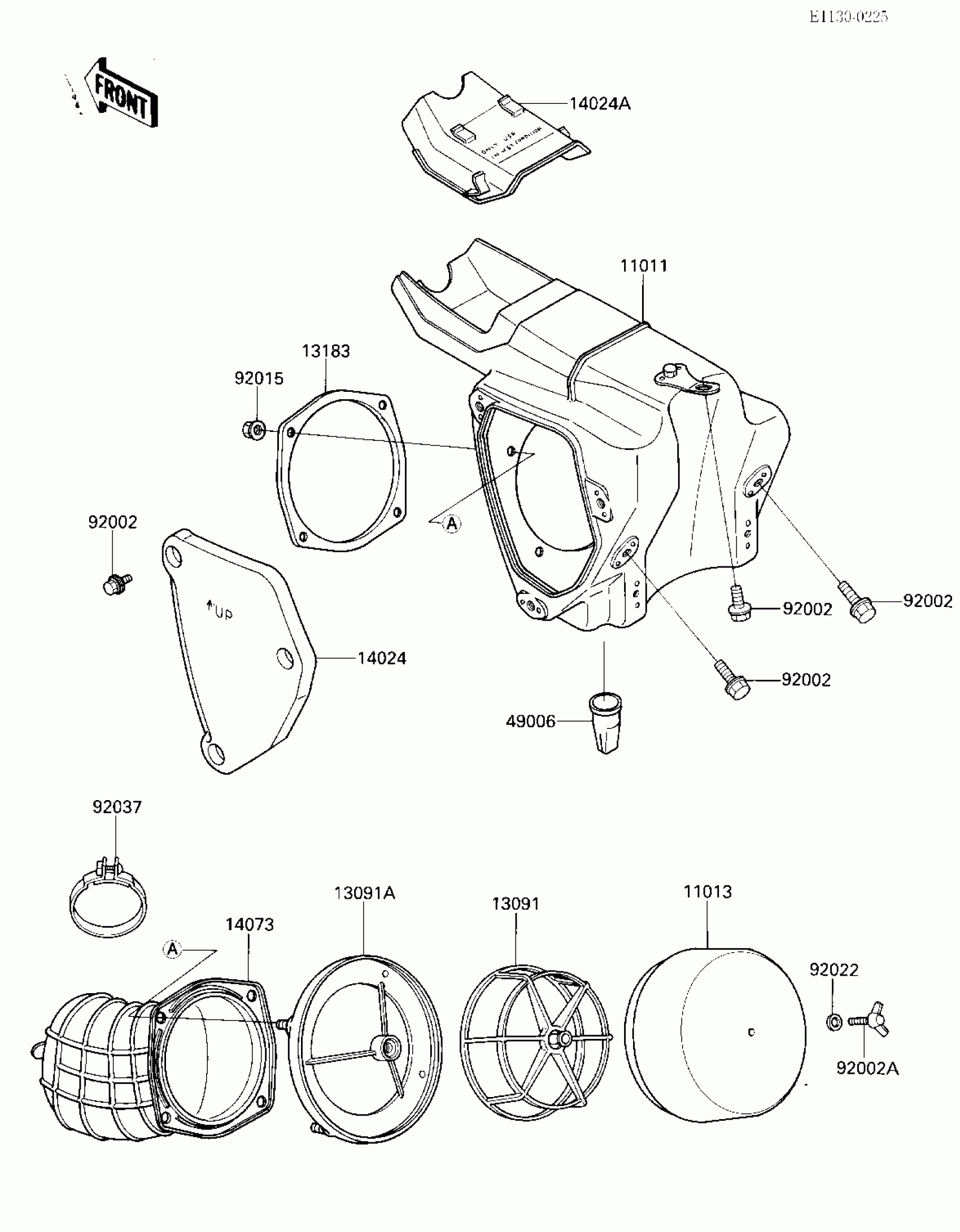

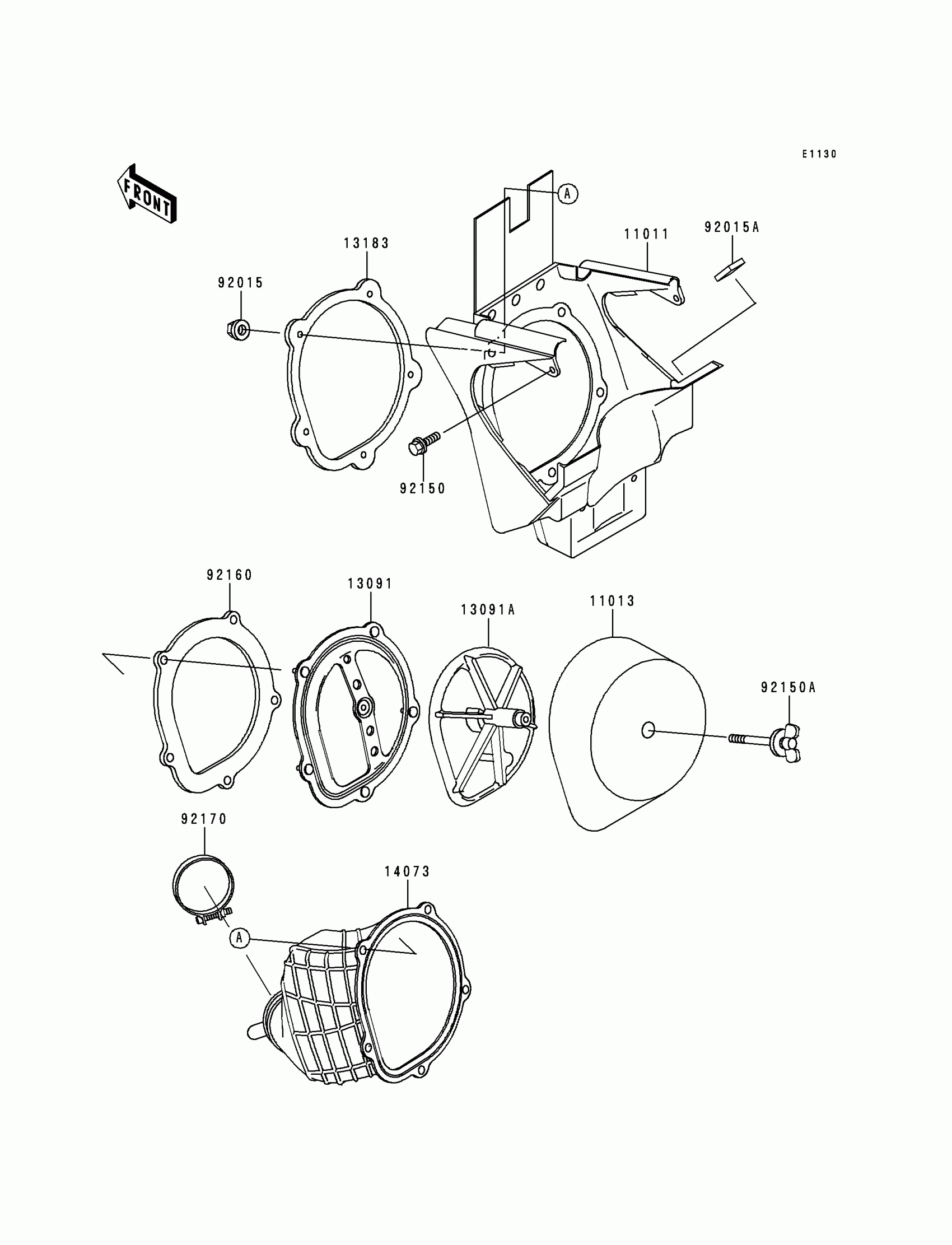

Kawasaki KX125 AIR CLEANER Diagram

Description

Price

11011

CASE-AIR FILTER

11011-1241

Unavailable

11013

ELEMENT-AIR FILTER

11013-1194

Unavailable

13091

HOLDER,ELEMENT

13091-1454

$50.19

13091A

HOLDER

13091-1594

Unavailable

13183

PLATE,DUCT FITTING

13183-1046

$24.57

14024

COVER,AIR FILTER

14024-1357

Unavailable

14024A

COVER,FILTER CASE

14024-1424

$15.19

14073

DUCT,AIR FILTER

14073-1285

$118.54

49006

BOOT

49006-1012

Unavailable

92002

BOLT,FLANGED,6X16

92150-1506

$5.00

92002A

BOLT,WING

92002-1719

$6.57

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92037

CLAMP,AIR FILTER

92037-171

$12.95
