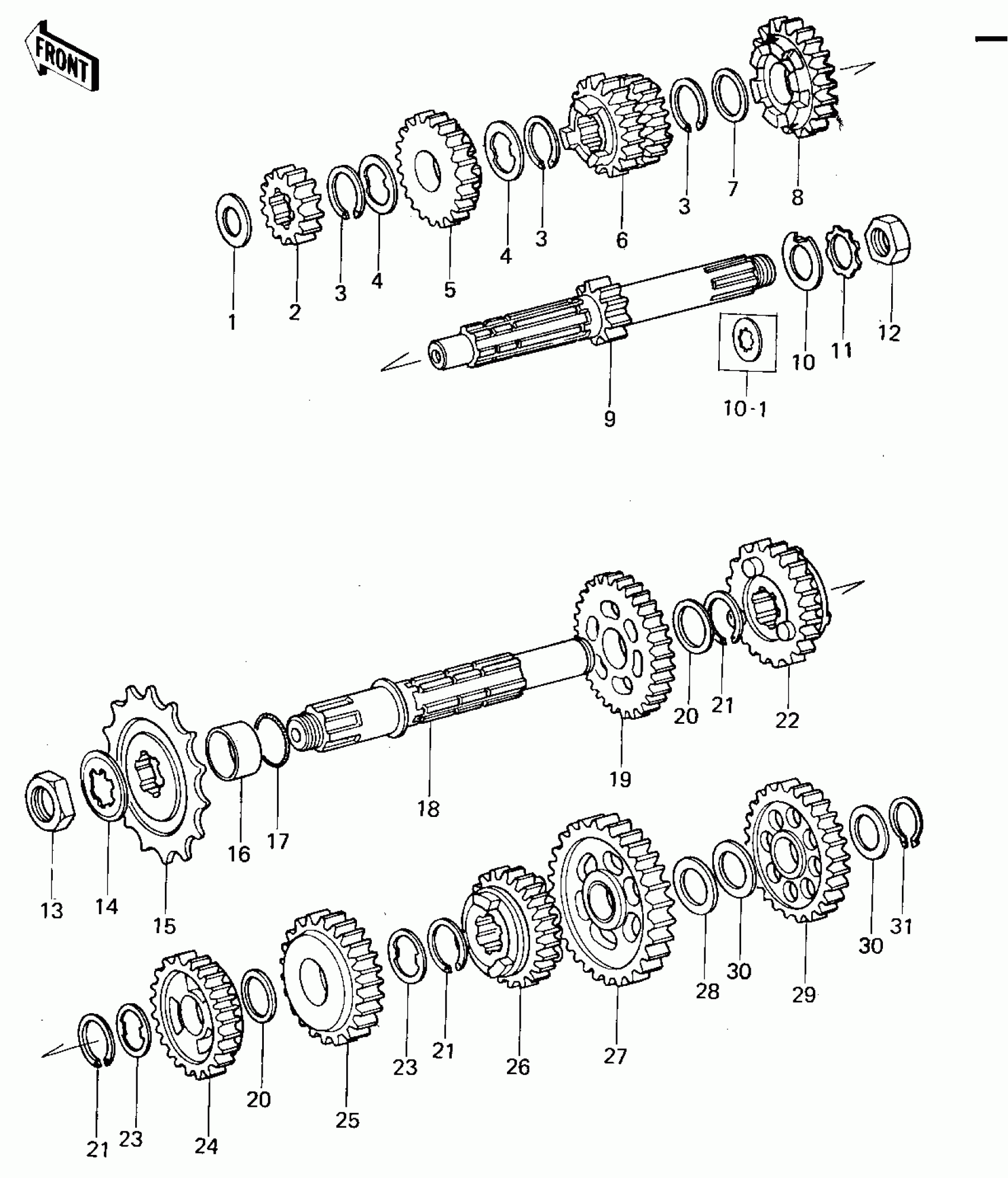

Kawasaki KX125-A5 TRANSMISSION Diagram
#
1
WASHER,THRUST,15MM
92022-279
Unavailable
2
2ND GEAR,DRIVE,14T
13129-1063
Unavailable
2
2NDGEAR,DRIVE,SHAFT
13129-1119
Unavailable
3
RING-SNAP,18MM
92033-029
Unavailable
4
WASHER,LOCK
92024-059
Unavailable
5
TOP GEAR,DRIVE,22T
13129-1066
Unavailable
6
3RD & 4TH GEAR,DRIVE
13129-1064
Unavailable
6
3RD&4THGEAR,DRIVE,SFT
13129-1120
Unavailable
7
WASHER,20.5X25.5X0.5
92022-252
Unavailable
8
5TH GER,DRIVE,21T
13129-1065
Unavailable
9
SHAFT,DRIVE
13127-1005
Unavailable
9
SHAFT,DRIVE
13127-1015
Unavailable
10
WASHER,16.8X32X1.6
92022-1277
Unavailable
10-1
WASHER,LOCK
92022-1124
Unavailable
11
WASHER,LOCK,16MM
464H1600
Unavailable
12
NUT 16MM
92016-036
Unavailable
13
NUT,LOCK,18M/M
92015-1029
Unavailable
14
WASHER,LOCK
92022-1047
Unavailable
15
ENGINE SPROCKET,14T
13144-1007
Unavailable
15
SPROCKET-OUTPUT,15T
13144-054
Unavailable
16
COLLAR
92027-1068
Unavailable
17
RING-O,17.5X1.5
92055-022
Unavailable
18
SHAFT,OUTPUT
13128-1021
Unavailable
18
SHAFT,OUTPUT
13128-1021
Unavailable
19
2ND GEAR,OUTPUT,24T
13129-1068
Unavailable
19
2ND GEAR,OUTPUT SHAFT
13129-1122
Unavailable
20
WASHER,20.5X25.5X0.5
92022-252
Unavailable
21
RING-SNAP,18MM
92033-029
Unavailable
22
TOP GEAR,OUTPUT,20T
13129-1072
Unavailable
23
WASHER,LOCK
92024-059
Unavailable
24
4TH GEAR,OUTPUT,23T
13129-1070
Unavailable
24
4THGEAR,OUTPUT SHAFT
13129-1124
Unavailable
25
3RD GEAR,OUTPUT,22T
13129-1069
Unavailable
25
3RD GEAR,OUTPUT SHAFT
13129-1123
Unavailable
26
5TH GEAR,OUTPUT,21T
13129-1071
Unavailable
27
LOW GEAR,OUTPUT,27T
13129-1067
Unavailable
27
LOW GEAR,OUTPUT SHAFT
13129-1121
Unavailable
28
WASHER,PLAIN
92022-1048
Unavailable
29
IDLE GEAR,KICKSTARTER
59051-1009
Unavailable
30
WASHER,15.3X25X0.5
92022-1045
Unavailable
31
CIRCLIP-TYPE-C,15MM
480J1500
Unavailable
