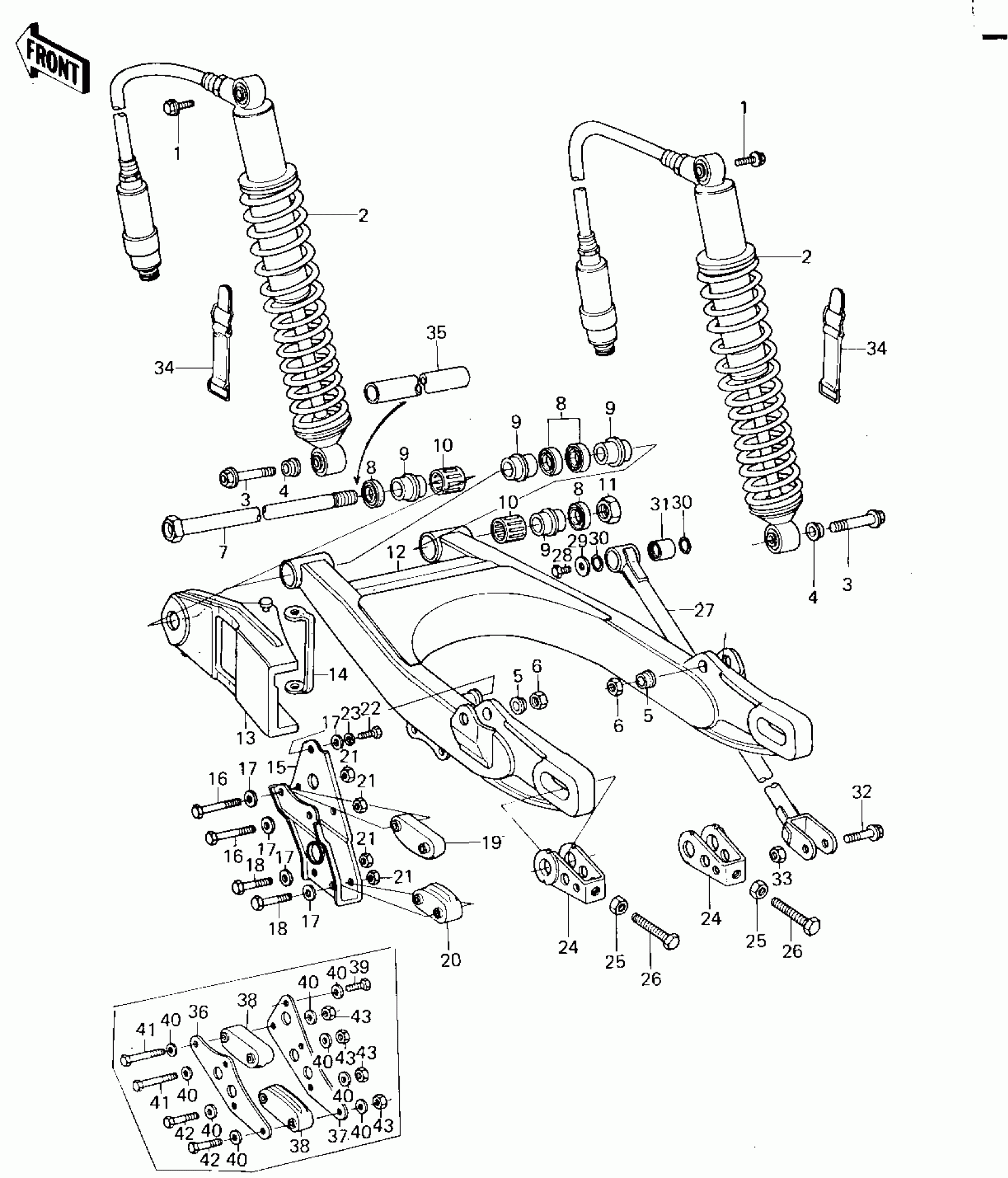

Kawasaki KX125-A5 SWING ARM/SHOCK ABSORBERS ('78-'79 KX125 Diagram
#
1
BOLT,FLANGED,6X10
92001-1034
Unavailable
2
SHOCK ABSBR RR
45014-1021
Unavailable
2
SHOCK ABSBR RR
45014-1030
Unavailable
3
BOLT,HEX HEAD,10X48
92001-1029
Unavailable
4
COLLAR
92027-1029
Unavailable
5
COLLAR
92027-1030
Unavailable
6
NUT,LOCK,10MM
92019-021
Unavailable
7
SHAFT,SWING ARM,PIVOT
33032-1001
Unavailable
7
SHAFT,SWING ARM PIVOT
33032-1010
Unavailable
8
OIL SEAL
92049-1011
Unavailable
9
SLEEVE,SWING ARM
42036-1026
Unavailable
10
BEARING,NEEDLE
92046-1001
Unavailable
11
NUT-LOCK,14MM
92019-011
Unavailable
12
ARM,SWING
33001-1010
Unavailable
12
ARM,SWING
33001-1030
Unavailable
13
GUIDE CHAIN,FRONT
12053-1017
Unavailable
14
BAND
92072-1018
Unavailable
15
GUARD,CHAIN
55020-1015
Unavailable
16
BOLT,HEX HEAD,6X50
110G0650
Unavailable
17
WASHER PLAIN 6MM
411B0600
Unavailable
18
BOLT 6X35
110R0635
Unavailable
19
GUIDE,CHAIN
12053-1015
Unavailable
20
GUIDE,CHAIN,REAR
12053-1011
Unavailable
21
NUT,LOCK,6MM
92019-008
Unavailable
22
BOLT-UPSET 6X14
112B0614
Unavailable
23
WASHER SPRING 6MM
461F0600
Unavailable
24
ADJUSTER,CHAIN
33040-1005
Unavailable
25
NUT,8MM
312G0800
Unavailable
25
NUT-HEX-SMALL,8MM
318G0800
Unavailable
26
BOLT,CHAIN ADJUSTER
92001-1027
Unavailable
27
ROD,TORQUE
43007-1003
Unavailable
27
TORQUE LINK,RR.BRAKE
43007-1009
Unavailable
28
BOLT,6X10
112G0610
Unavailable
29
WASHER,7X24X1.6
92022-228
Unavailable
30
O RING,15MM
670B2015
Unavailable
31
BUSHING,BRAKE ROD
92028-1023
Unavailable
32
BOLT,FLANGED,8X36
92001-1041
Unavailable
33
NUT,LOCK,8MM
92017-013
Unavailable
34
BAND,FUEL TANK
92072-076
Unavailable
35
SPACER,SWING ARM
92026-1014
Unavailable
37
GUARD,CHAIN
55020-1021
Unavailable
38
GUIDE,CHAIN
12053-1033
Unavailable
39
BOLT-UPSET 6X14
112B0614
Unavailable
40
WASHER PLAIN 6MM
411B0600
Unavailable
41
BOLT,HEX HEAD,6X50
110G0650
Unavailable
42
BOLT-UPSET,6X40
112G0640
Unavailable
43
NUT,LOCK,6MM
92019-008
Unavailable
