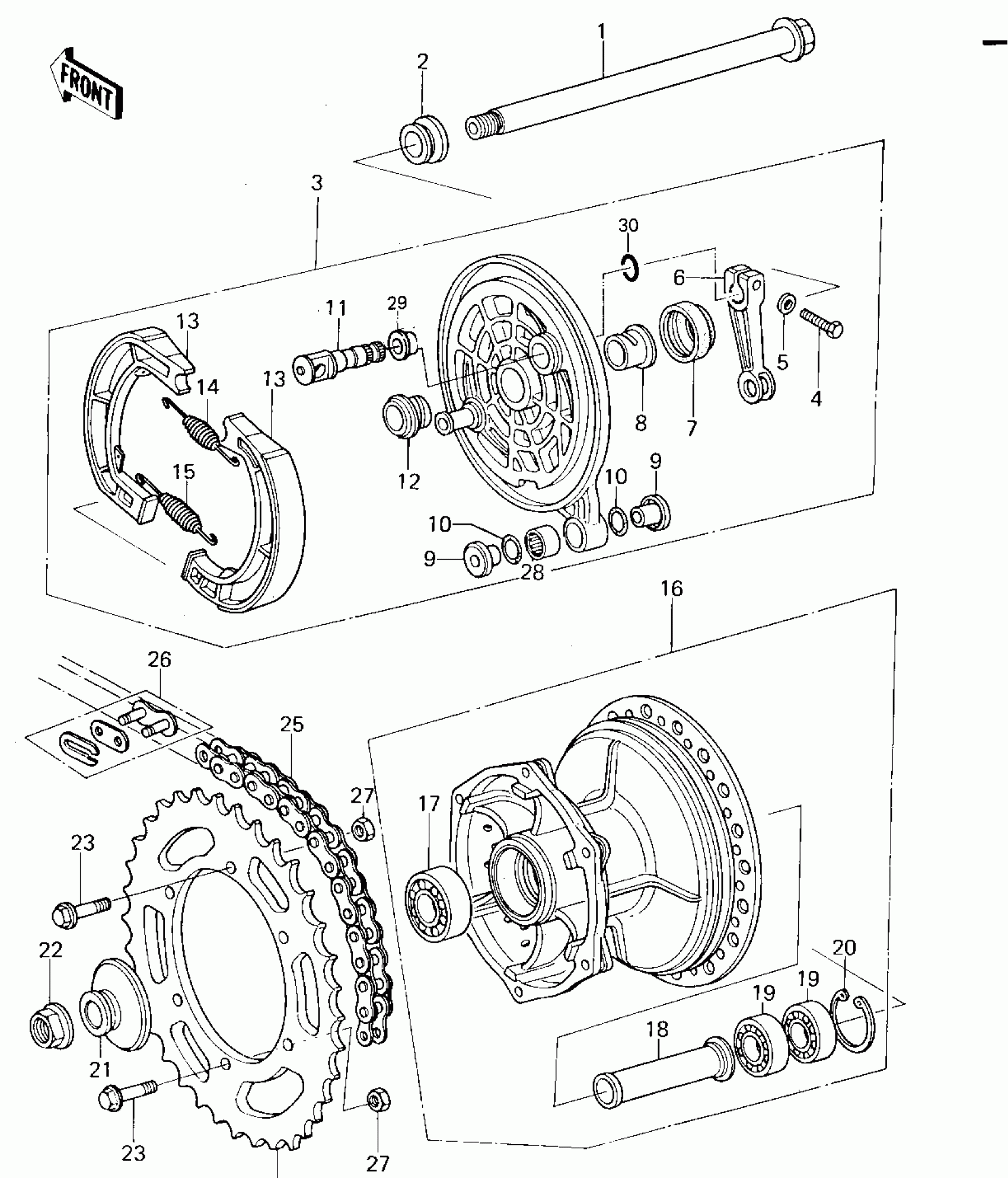

Kawasaki KX125-A5 REAR HUB/BRAKE/CHAIN ('78-'79 KX125-A4/A Diagram
#
1
AXLE,REAR
41068-1007
Unavailable
2
COLLAR,REAR AXLE
92027-1039
Unavailable
3
PANEL-ASY,RR BRK
41035-1012-21
Unavailable
4
BOLT-UPSET
112G0622
Unavailable
5
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
6
LEVER,BROKE CAM REAR
41053-1008
Unavailable
7
OIL SEAL
92093-1004
Unavailable
8
SLEEVE,REAR BRAKE
42036-1010
Unavailable
9
COLLAR,L=11.5
92027-1040
Unavailable
10
O RING,11MM
670B2011
Unavailable
11
CAM SHAFT,
41050-1007
Unavailable
12
SLEEVE,REAR BRAKE
42036-1009
Unavailable
13
SHOE,BRAKE
42019-010
Unavailable
14
SPRING,BRAKE SHOE
92081-1766
Unavailable
15
SPRING,BRAKE SHOE
92081-1550
Unavailable
16
DRUM-ASSY,RR BRK,BLK
41034-1010-21
Unavailable
17
BEARING-BALL,#6203LUC3/2A
601B6203U
Unavailable
18
COLLAR,REAR BRAKE
92027-1037
Unavailable
19
BEARING-BALL,#6003UC3
601B6003U
Unavailable
20
CIRCLIP-TYPE-C,35MM
481J3500
Unavailable
21
COLLAR,REAR AXLE
92027-1072
Unavailable
22
NUT,16MM
92015-1015
Unavailable
23
BOLT,HEX HEAD,8X32
92001-1040
Unavailable
24
REAR SPROCKET,63T
42041-1017
Unavailable
24
REAR,SPROCKET,60T
42041-1011
Unavailable
24
REAR SPROCKET,61T
42041-1018
Unavailable
24
REAR SPROCKET,65T
42041-1019
Unavailable
24
REAR,SPROCKET,58T
42041-1012
Unavailable
24
REAR,SPROCKET,62T
42041-1013
Unavailable
25
DR CHAIN 428X130
92057-1008
Unavailable
25
DR CHAIN 428X134
92057-1021
Unavailable
26
CHAIN JOINT 428
92058-1003
Unavailable
27
NUT,LOCK,8MM
92017-013
Unavailable
28
BEARING-NEEDLE,HK1216LL
92046-1009
Unavailable
29
BUSHING,BRAKE CAMSHFT
92028-1020
Unavailable
30
O RING,12MM
670B2012
Unavailable
