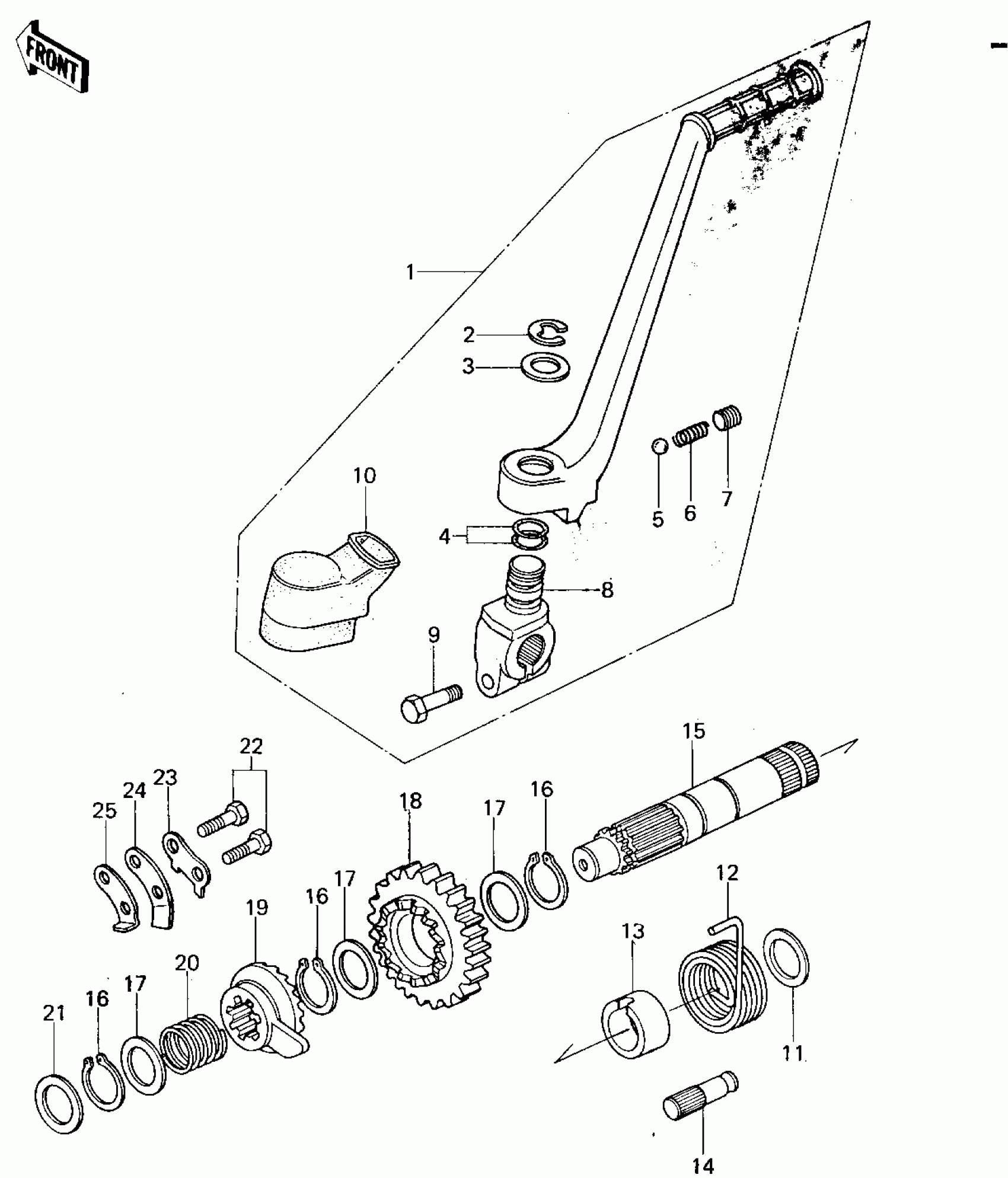

Kawasaki KX125-A5 KICKSTARTER MECHANISM ('78-'79 KX125-A4/ Diagram
#
Description
Price
1
LEVER-ASSY-KICK PEDA
13064-5005
Unavailable
2
CIR CLIP
482K0100
Unavailable
3
WASHER,15.2X20X1
92022-1019
Unavailable
4
O RING,12MM
670B2012
Unavailable
5
BALL-STEEL,1/4
600A0800
Unavailable
6
SPRING,KICK PEDAL
92081-020
Unavailable
7
SCREW-SET-SOCKET,8X8
290Q0808
Unavailable
8
BOSS,KICK PEDAL
13061-5001
Unavailable
9
BOLT,8X28
92001-1042
Unavailable
10
BOOT,KICKSTARTER
49006-1011
Unavailable
11
WASHER,PLAIN
92022-268
Unavailable
12
SPRING,KICKSTARTER
92082-005
Unavailable
13
GUIDE,KICKSPRING
13070-008
Unavailable
14
PIN
92043-102
Unavailable
15
SHAFT,KICKSTARTER
13066-1005
Unavailable
16
CIRCLIP-TYPE-C,16MM
480J1600
Unavailable
17
WASHER,16.8X22X0.5
92022-315
Unavailable
18
GEAR,KICKSTARTER
59051-1008
Unavailable
19
RATCHET
13078-1052
Unavailable
20
SPRING,RATCHET
92081-122
Unavailable
21
WASHER,12.3X20X0.5
92022-269
Unavailable
22
BOLT-UPSET
112G0618
Unavailable
23
WASHER,LOCK
92022-1046
Unavailable
24
GUIDE-KICK
13206-1059
Unavailable
25
STOPPER,KICKSTARTER
32085-1016
Unavailable
