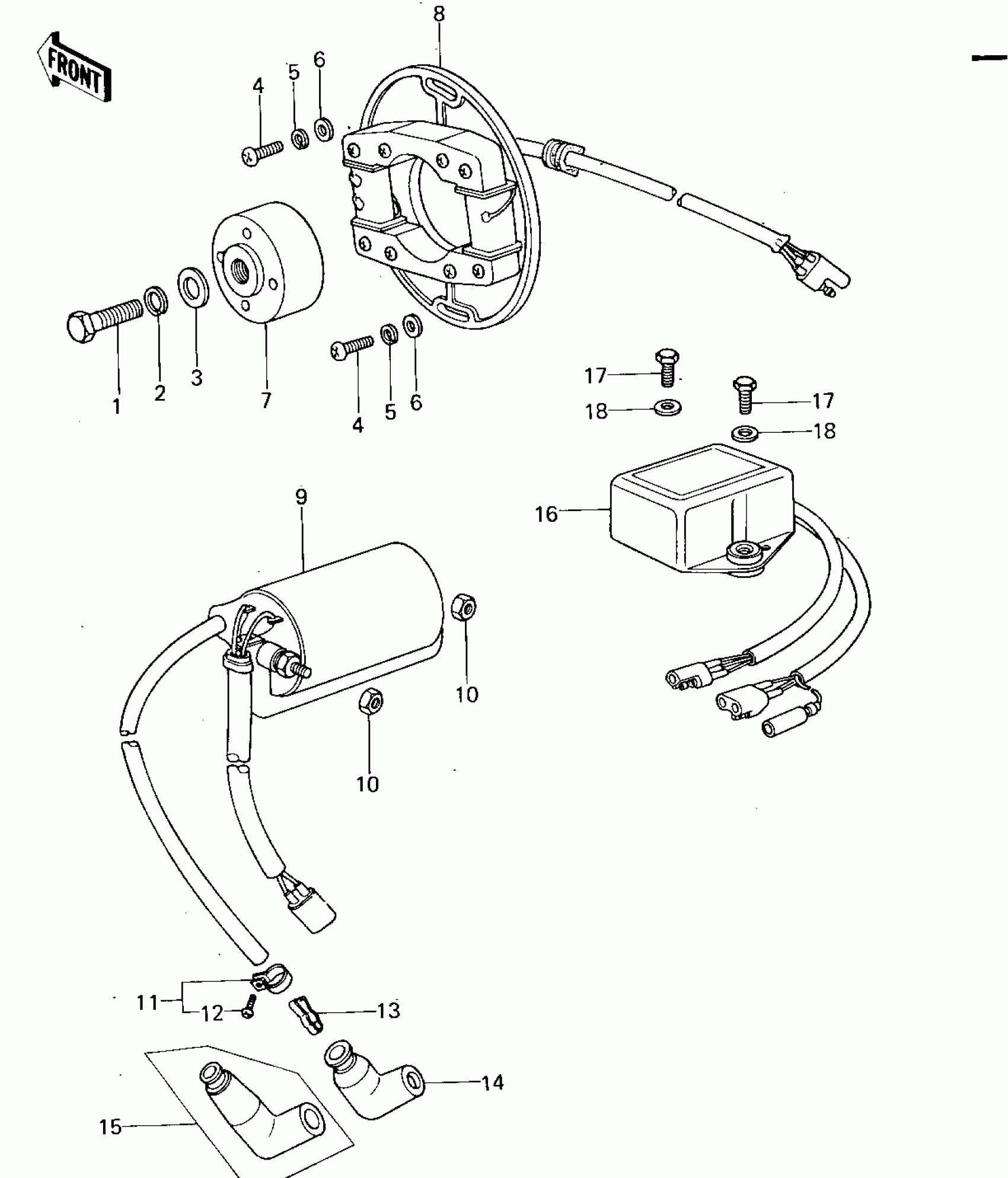

Kawasaki KX125-A5 IGNITION ('78-'79 KX125-A4/A5) Diagram

#

Description

Price

1

BOLT

92001-1578

Unavailable

2

WASHER SPRING 8MM

461F0800

Unavailable

3

WASHER,8.5X22X3.2

92022-276

Unavailable

4

SCREW PAN HEAD 6X25

220B0625

Unavailable

5

WASHER SPRING 6MM

461F0600

Unavailable

6

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

7

ROTOR

21007-1007

Unavailable

7

ROTOR,MAGNETO

21007-1013

Unavailable

8

STATOR ASSY,MAGNETO

21003-1019

Unavailable

8

STATOR ASSY,MAGNETO

21003-1019

Unavailable

9

COIL,IGNITION

21121-1007

Unavailable

10

NUT,LOCK,6MM

92019-008

Unavailable

11

CLAMP

92037-1173

Unavailable

12

SCREW-PAN-CROS

220B0310

Unavailable

13

TERMINAL,PLUG CAP

21169-001

Unavailable

14

CAP-SPARK PLUG

21130-1006

Unavailable

15

CAP,SPARK PLUG

21130-1001

Unavailable

16

IGNITION UNIT

21119-1002

Unavailable

16

IGNITION UNIT

21119-1010

Unavailable

17

BOLT-UPSET

112G0618

Unavailable

18

WASHER PLAIN

92022-024

Unavailable
