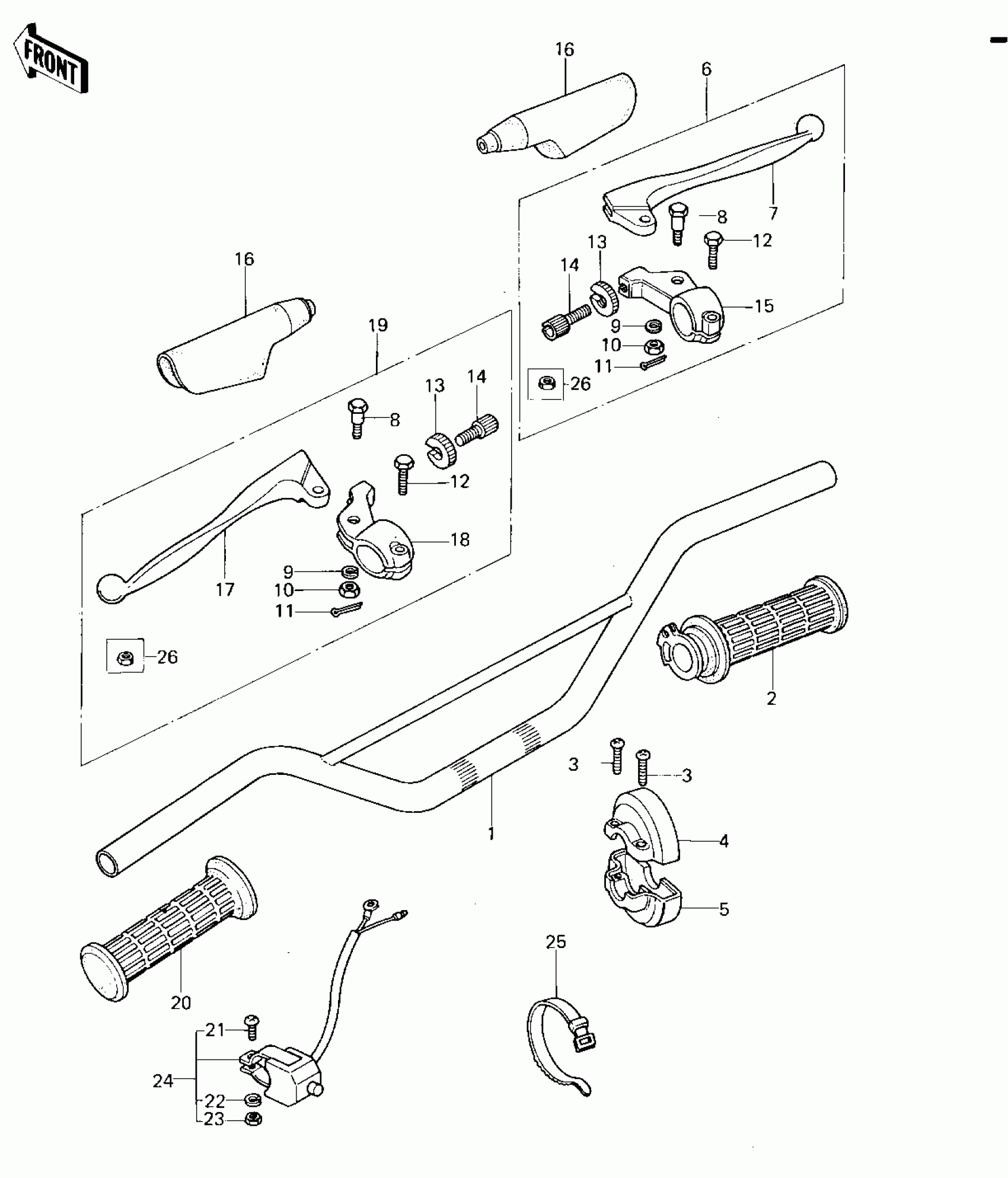

Kawasaki KX125-A5 HANDLEBAR ('78-'79 KX125-A4/A5) Diagram
#
Description
Price
1
HANDLEBAR
46003-1009
Unavailable
1
HANDLEBAR
46003-1034
Unavailable
2
GRIP ASSY,THROTTLE
46019-1002
Unavailable
2
GRIP ASSY,THROTTLE
46019-1009
Unavailable
3
SCREW-PAN-CROS
220B0520
Unavailable
4
CASE,R.H,GRIP,UPPER
32099-1014
Unavailable
5
HOUSING-ASSY-CONTROL
46091-5006
Unavailable
6
LEVER ASSY,FRONT BRA
46076-1003
Unavailable
7
FRONT BRAKE LEVER
46058-018
Unavailable
8
BOLT,HEX HEAD,6MM
92001-140
Unavailable
9
WASHER SPRING 6MM
461F0600
Unavailable
10
NUT CASTLE
320B0600
Unavailable
11
PIN-COTTER,1.6X15
550D1615
Unavailable
12
BOLT-UPSET
112N0620
Unavailable
13
NUT,CABLE ADJUST
46056-006
Unavailable
14
SCREW,CABLE ADJUST,8MM
46055-009
Unavailable
15
HOLDER,F.BRAKE LEVER
46060-010-21
Unavailable
16
DUST COVER
46071-003
Unavailable
17
LEVER, CLUTCH
46092-021
Unavailable
18
HOLDER,CLUTCH LEVER
46094-014-21
Unavailable
19
LEVER ASSY,CLUTCH
46076-1004
Unavailable
20
GRIP ASSY,L.H GRIP
46075-031
Unavailable
20
RUBBER,L.H.GRIP,L.GRE
46075-1006
Unavailable
21
SCREW PAN HEAD 3X14
220E0314A
Unavailable
22
WASHER SPRING 3MM
461F0300
Unavailable
23
NUT-HEX
311B0300
Unavailable
24
SWITCH,ASSY,ENG STOP
27010-1018
Unavailable
25
BAND,L=123
92072-030
Unavailable
26
NUT,LOCK,6MM
92019-008
Unavailable
