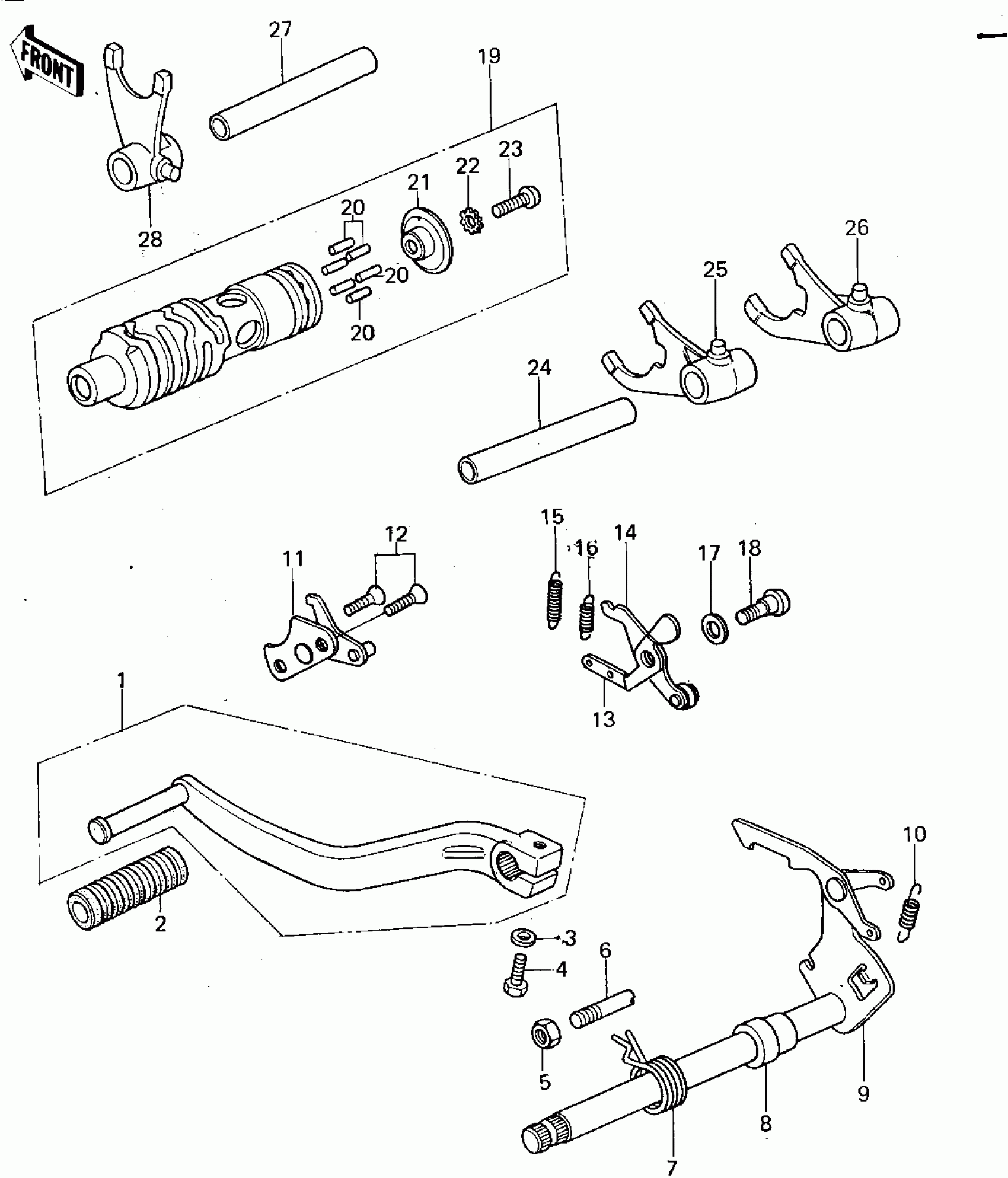

Kawasaki KX125-A5 GEAR CHANGE MECHANISM ('78-'79 KX125-A4/ Diagram
#
1
PEDAL ASSY,GEAR CHNGE
13156-1013
Unavailable
2
DAMPER,CHANGE PEDAL
92160-1108
Unavailable
3
WASHER-PLAIN-SMALL,6MM
410B0600
Unavailable
4
BOLT-UPSET
112G0622
Unavailable
5
NUT-HEX-SMALL,8MM
318B0800
Unavailable
5
NUT 8MM
312B0800
Unavailable
6
PIN-CHANGE PEDAL
92043-061
Unavailable
6
PIN,CHANGE PEDAL
92043-1056
Unavailable
7
SPRING,TENSION
92081-1129
Unavailable
7
SPRING,TENSION
92081-1129
Unavailable
8
COLLAR
92027-1069
Unavailable
9
LEVER-COMP-CHANGE
13161-1031
Unavailable
10
SPRING,CHANGE LEVER
92081-076
Unavailable
11
STOPPER ASSY,CHANGE
13244-1002
Unavailable
11
STOPPER ASSY,CHANGE
13244-1002
Unavailable
12
SCREW-CSK-CROS,6X12
221B0612
Unavailable
13
LEVER A, GEAR CHANGE
13168-1012
Unavailable
14
LEVER B, GEAR CHANGE
13236-1002
Unavailable
15
SPRING
92081-119
Unavailable
16
SPRING,GEAR CHANG LV
92081-1061
Unavailable
17
WASHER,PLAIN
92022-1053
Unavailable
18
SCREW,6MM
92011-023
Unavailable
19
DRUM ASSY-CHANGE
13239-1025
Unavailable
19
DRUM ASSY-CHANGE
13239-1025
Unavailable
20
PIN,DOWEL
92043-1028
Unavailable
20
PIN,DOWEL,4X15.8
92042-014
Unavailable
21
PLTE,SHIFT DRUM PIN
13142-017
Unavailable
21
HOLDER,GEAR CHANGE DR
13091-1052
Unavailable
22
WASHER LOCK 6MM
464H0600
Unavailable
23
SCREW-PAN-CROS,6X14
220B0614
Unavailable
23
SCREW-CSK-CROS,6X20
221B0620
Unavailable
24
ROD,SHIFT,90M/M
49047-1001
Unavailable
25
SHIFT FORK
13140-1011
Unavailable
26
SHIFT FORK
13140-1012
Unavailable
27
ROD,SHIFT,82M/M
49047-1004
Unavailable
28
SHIFT FORK
13140-1010
Unavailable
