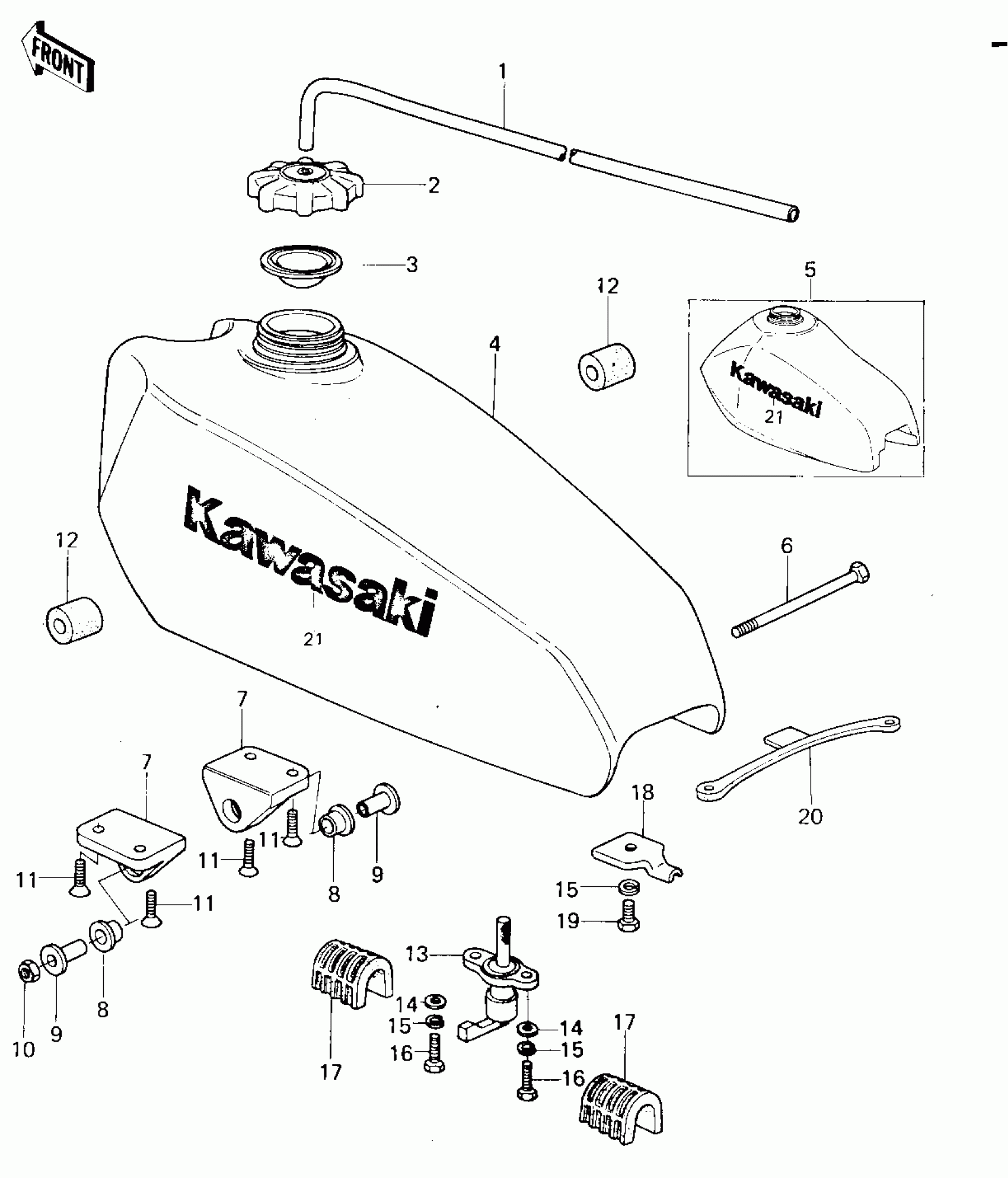

Kawasaki KX125-A5 FUEL TANK ('78-'79 KX125-A4/A5) Diagram
#
Description
Price
1
TUBE,VINYL
92059-1022
Unavailable
2
CAP-TANK,FUEL
51049-1006
Unavailable
3
GASKET,FUEL TANK CAP
11009-1452
Unavailable
4
TANK-FUEL,LIME GREEN
51001-1010-6W
Unavailable
5
TANK-FUEL,LIME GREEN
51001-1019-6W
Unavailable
6
BOLT-UPSET,6X105
112G06105
Unavailable
7
BRACKET,FUEL TANK
32052-1010
Unavailable
8
DAMPER RUBBER,FUEL
92075-1048
Unavailable
9
SPACER,FUEL TANK
92026-1015
Unavailable
10
NUT,LOCK,6MM
92019-008
Unavailable
11
SCREW-CSK-CROS,6X14
221B0614
Unavailable
12
DAMPER RUBBER,FUEL
92075-1047
Unavailable
13
TAP-ASSY,FUEL
51023-1115
Unavailable
14
WASHER PLAIN 6MM
411B0600
Unavailable
15
WASHER SPRING 6MM
461F0600
Unavailable
16
BOLT-UPSET
112G0618
Unavailable
17
DAMPER RUBBER,FUEL
92075-1027
Unavailable
18
BRACKET,FUEL TANK
32052-1009
Unavailable
19
BOLT,6X10
112G0610
Unavailable
20
BAND,FUEL TANK
92072-049
Unavailable
20
BAND,FUEL TANK
92072-042
Unavailable
21
EMBLEM,FUEL TANK
56014-1012
Unavailable
