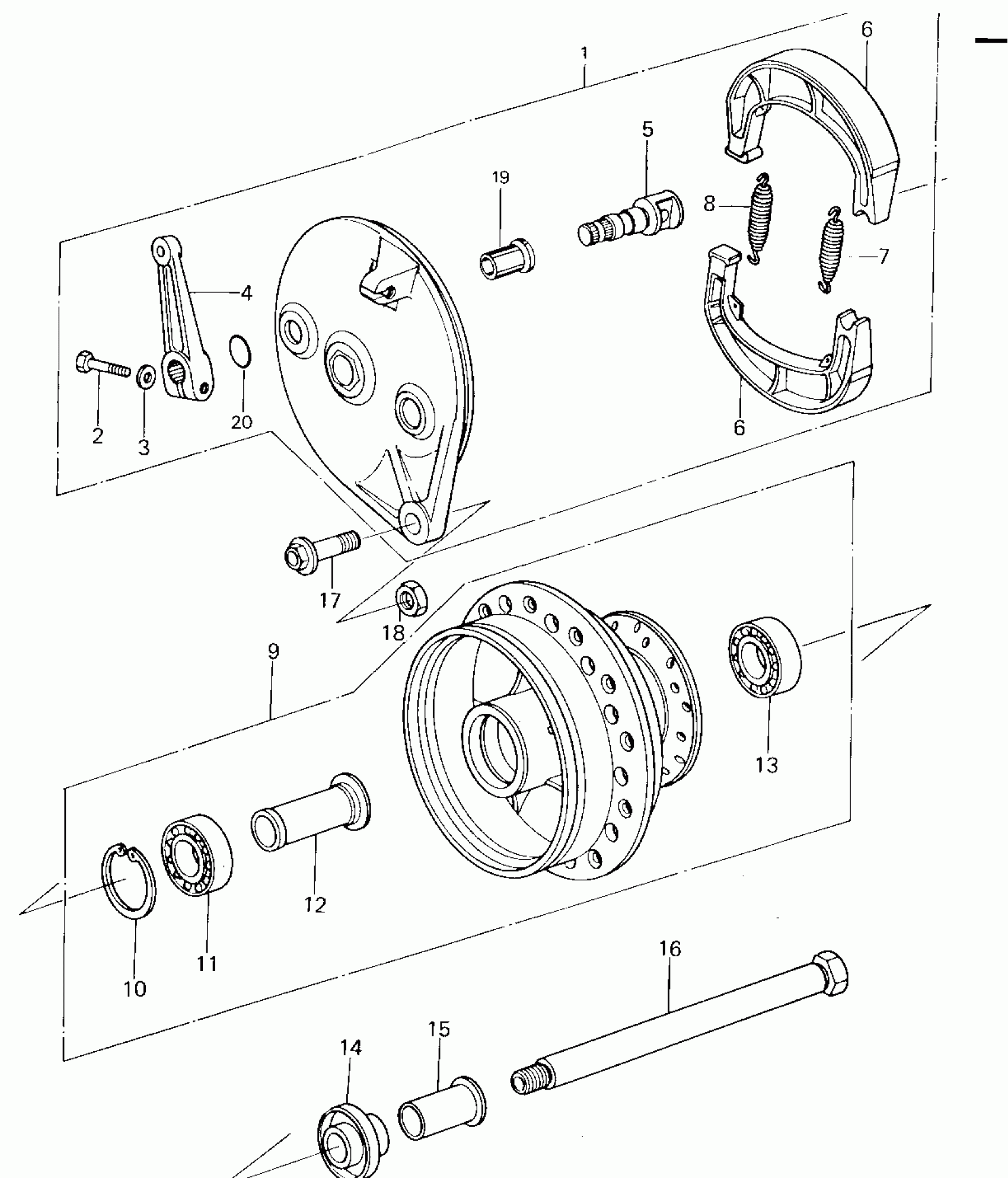

Kawasaki KX125-A5 FRONT HUB/BRAKE ('78-'79 KX125-A4/A5) Diagram

#

Description

Price

1

PANEL-ASY,FR BRK

41035-1011-21

Unavailable

2

BOLT-UPSET

112G0622

Unavailable

3

WASHER-PLAIN-SMALL,6MM

410B0600

Unavailable

4

LEVER,BRAKE CAM,FRONT

41053-1007

Unavailable

5

CAM SHAFT,FRONT BRAKE

41050-1006

Unavailable

6

SHOE,BRAKE

41048-015

Unavailable

7

SPRING,BRAKE SHOE

92081-1766

Unavailable

8

SPRING,BRAKE SHOE

92081-1550

Unavailable

9

DRUM-ASSY,FR BRK,BLK

41034-1009-21

Unavailable

10

CIRCLIP-TYPE-C,37MM

481J3700

Unavailable

11

BEARING-BALL,#6301U

601B6301U

Unavailable

12

COLLAR,FRONT BEARING

92027-1073

Unavailable

13

BEARING-BALL,#6201LUC3/2A

601B6201U

Unavailable

14

COLLAR,FRONT AXLE

92027-1071

Unavailable

15

COLLAR,FRONT AXLE

92027-1070

Unavailable

16

AXLE,FRONT

41068-1008

Unavailable

17

BOLT,HEX HEAD,10X38

92001-1084

Unavailable

17

BOLT,10X45

92001-1182

Unavailable

18

NUT,LOCK,10MM

92019-021

Unavailable

19

BUSHING,BRAKE CAMSHFT

92028-1020

Unavailable

20

O RING,12MM

670B2012

Unavailable
