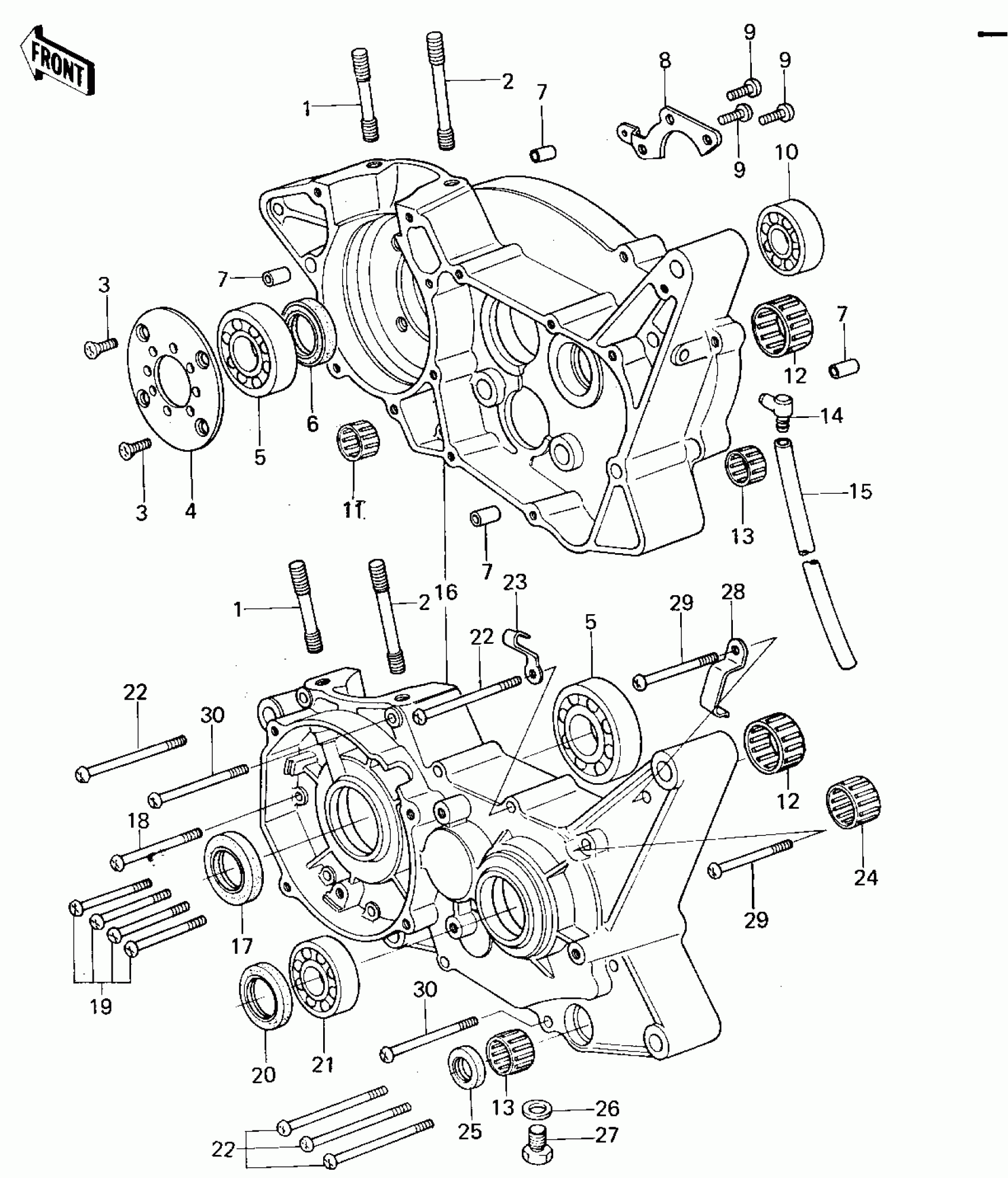

Kawasaki KX125-A5 CRANKCASE ('78-'79 KX125-A4/A5) Diagram
#
Description
Price
1
STUD,8X25
92004-1008
Unavailable
2
STUD,8X56
92004-1010
Unavailable
3
SCREW-CSK-CROS,6X16
221B0616
Unavailable
3
SCREW-CSK-CROS,6X14
221B0614
Unavailable
4
PLATE,POSITIONING
14014-1002
Unavailable
5
BEARING,BALL
92045-1006
Unavailable
6
SEAL-OIL
92049-1250
Unavailable
7
PIN,DOWEL,10X14
92043-1037
Unavailable
8
PLATE,POSITIONING
14014-1003
Unavailable
9
SCREW-PAN-CROS,6X16
220B0616
Unavailable
10
BEARING-BALL,#6303C3
601B6303
Unavailable
11
BEARING,NEEDLE
92046-043
Unavailable
12
BEARING,NEEDLE
92046-1006
Unavailable
13
BEARING,NEEDLE
92046-1008
Unavailable
14
BREATHER
14069-003
Unavailable
15
PIPE-BREATHER
92059-061
Unavailable
16
CRANKCASE SET
14001-5013
Unavailable
16
CRANKCASE SET
14001-5026
Unavailable
17
OIL SEAL
92049-1010
Unavailable
18
SCREW PAN HEAD 6X55
220B0655
Unavailable
19
SCREW PAN HEAD 6X45
220B0645
Unavailable
20
SEAL-OIL,SC25376
92050-013
Unavailable
21
BEARING,BALL
92045-1007
Unavailable
22
SCREW PAN HEAD 6X70
220B0670
Unavailable
23
CLAMP CABLE
92037-016
Unavailable
24
BEARING,NEEDLE
92046-1007
Unavailable
25
SEAL-OIL,TB13225.5
92051-005
Unavailable
26
GASKET,10.5X16X1
92065-058
Unavailable
27
PLUG,DRAIN,10X12
92067-001
Unavailable
28
CLAMP
92037-1073
Unavailable
29
SCREW PAN HEAD 6X50
220B0650
Unavailable
30
SCREW-PAN-CROS,6X60
220B0660
Unavailable
