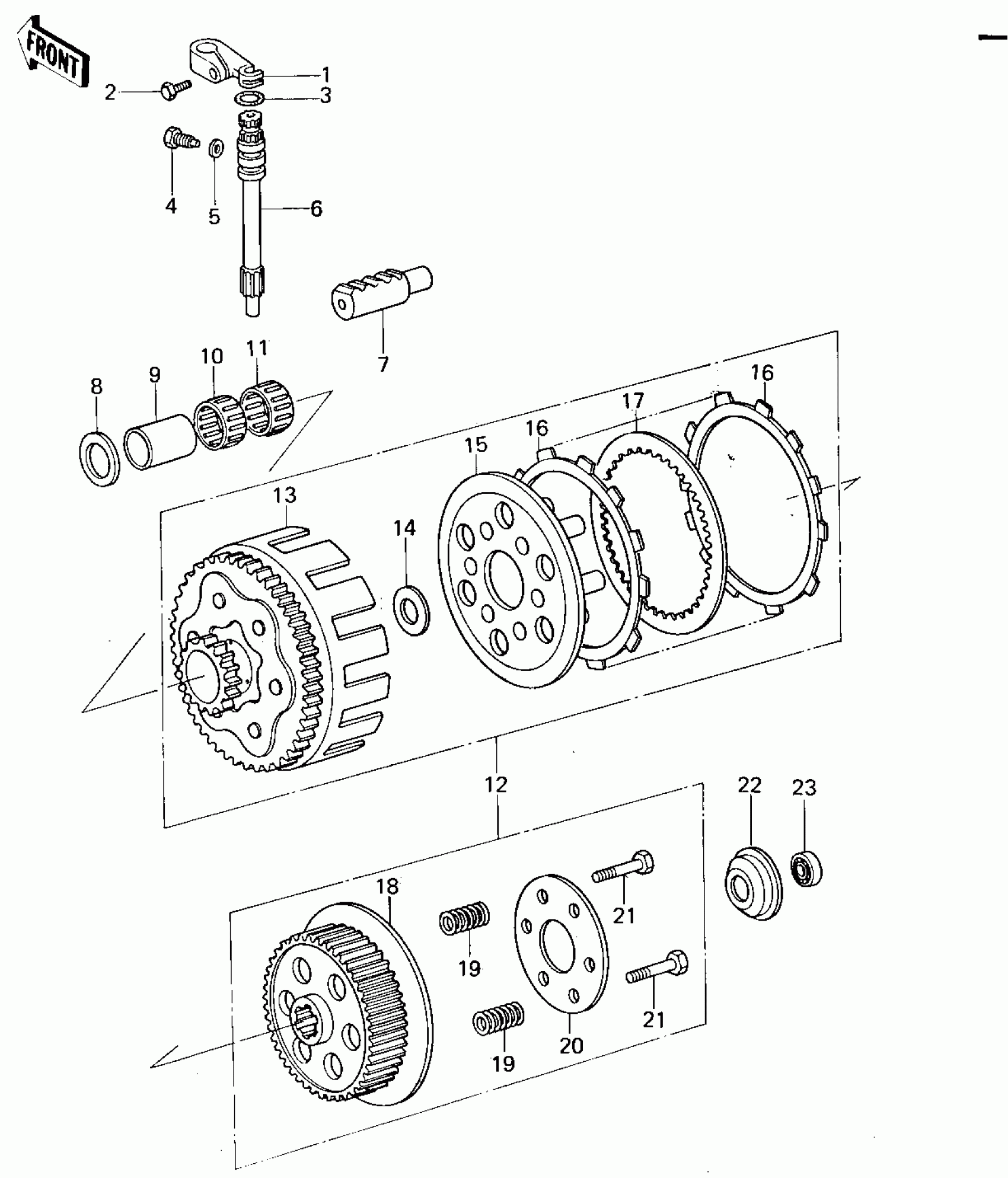

Kawasaki KX125-A5 CLUTCH ('78-'79 KX125-A4/A5) Diagram

#

Description

Price

1

LEVER,CLUTCH RELEASE

13168-1010

Unavailable

2

BOLT-UPSET

112G0618

Unavailable

3

O RING,10MM

670B2010

Unavailable

4

BOLT,CLUTCH RELEASE

92003-130

Unavailable

5

GASKET,6X14X0.8

92065-092

Unavailable

6

SHAFT,CLUTCH RELEASE

13106-1001

Unavailable

7

ROD,CLUTCH PUSH

13116-025

Unavailable

8

WASHER,17.3X30X1.4

92022-270

Unavailable

9

BUSHING,CLUTCH

92028-1018

Unavailable

10

BEARING,NEEDLE

92046-1004

Unavailable

11

BRG,N,KT222613-C3

92046-1005

Unavailable

12

CLUTCH-ASSY

13081-1011

Unavailable

13

HOUSING,CLUTCH

13095-1007

Unavailable

14

WASHER,17.3X30X1.4

92022-270

Unavailable

15

WHEEL,CLUTCH

13086-1001

Unavailable

16

PLATE-FRICTION

13088-1015

Unavailable

17

PLATE,CLUTCH STEEL

13089-1002

Unavailable

18

HUB,CLUTCH

13087-1002

Unavailable

19

SPRING,CLUTCH

92081-123

Unavailable

20

HOLDER,CLUTCH

13091-1011

Unavailable

21

BOLT,5X18

92003-078

Unavailable

22

HOLDER,CLUTCH PUSHER

13091-1071

Unavailable

23

BEARING,BALL

92045-1005

Unavailable
